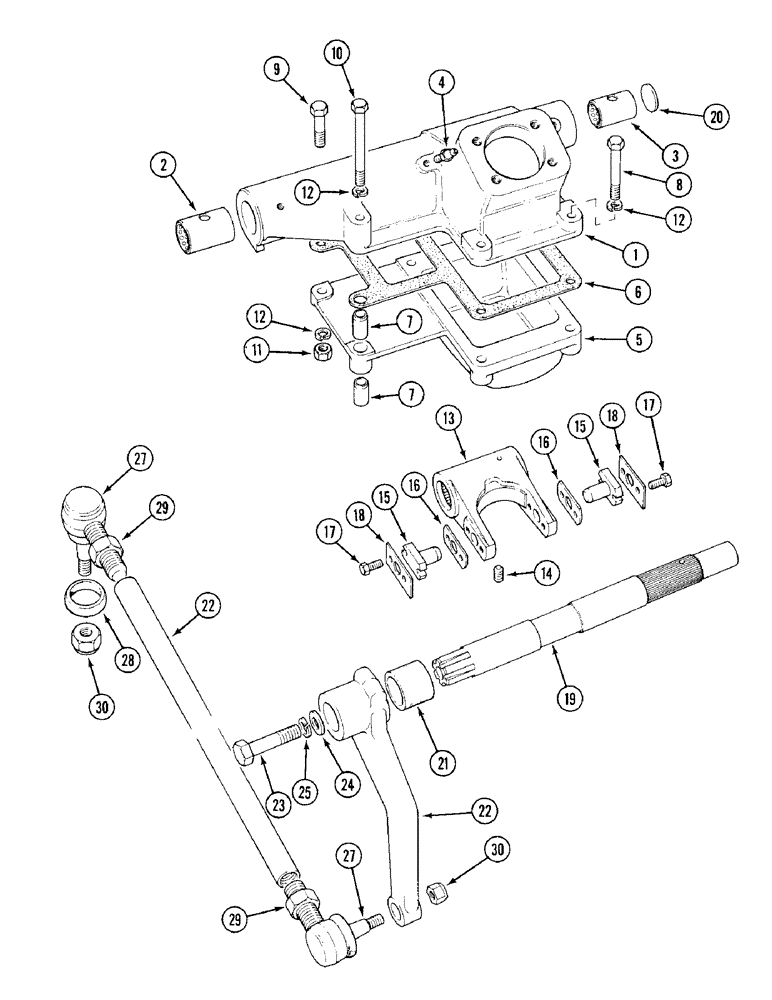

Запчасти Case IH 1394 (5-106) - STEERING BOX, MANUAL STEERING, NOT NORTH AMERICA (05) - STEERING

1

K962511

HOUSING

BOX ASSEMBLY - steering, Includes: Ref. 2 & 3

1шт.

2

K621301

BUSHING

- long

2шт.

3

K621300

BUSHING

- short

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

3шт.

5

K200282

SUMP

- steering box

1шт.

6

K89395

GASKET

-, Serial Range: sump-box

1шт.

7

K622042

RING

DOWEL - 9/16 x 1-1/8 inch

4шт.

8

K600477

BOLT

- 3/8 UNC x 2-1/2 inch

4шт.

9

K600476

BOLT

- h, 3/8 UNC x 1-3/4 inch

1шт.

10

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 UNC x 3-1/4 inch

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

492-11038

LOCK WASHER,3/8"

6шт.

13

K943909

LEVER

ARM - rocker

1шт.

14

K9606406

SCREW - locating, 3/8 UNC x 5/8 inch

1шт.

15

K912108

BALL

PEG - ball

2шт.

16

K900945

GASKET

SHIM - 0.003 inch (0.08 mm)

1шт.

16

K900946

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

16

K900947

GASKET

SHIM - 0.007 inch (0.18 mm)

1шт.

16

K900948

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

17

K602702

SCREW

BOLT - 1/4 UNC x 5/8 inch

4шт.

18

K912109

WASHER

- tab, ball peg

2шт.

19

K943910

SHAFT

- drop arm

1шт.

20

41-20

PLUG,Exp, 1 1/4"

- expansion, core, 1-1/4 inch (31 mm) Diameter

1шт.

21

K86963

LARGE HOSE

SEAL - dust

1шт.

22

K200716

ARM

- drop

1шт.

23

K600808

BOLT

- 1/2 UNC x 2-1/4 inch

1шт.

24

K910646

WASHER

- 1/2 inch (13 mm) Special

1шт.

25

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

1шт.

K956544

LINK

ASSEMBLY - drag, Includes: Ref. 26 - 30

1шт.

26

K956545

TUBE

- link, drag

1шт.

27

K207722

BALL JOINT

SOCKET ASSEMBLY - ball, Includes: Ref. 28 - 30

2шт.

28

K962155

CAP

SEAL - dirt

1шт.

29

K622500

LOCK NUT

- lock, 3/4 inch, special

1шт.

30

131-377

LOCK NUT,5/8"-11, GC

NUT - lock, ball joint, self-locking, 5/8 inch UNF

1шт.
