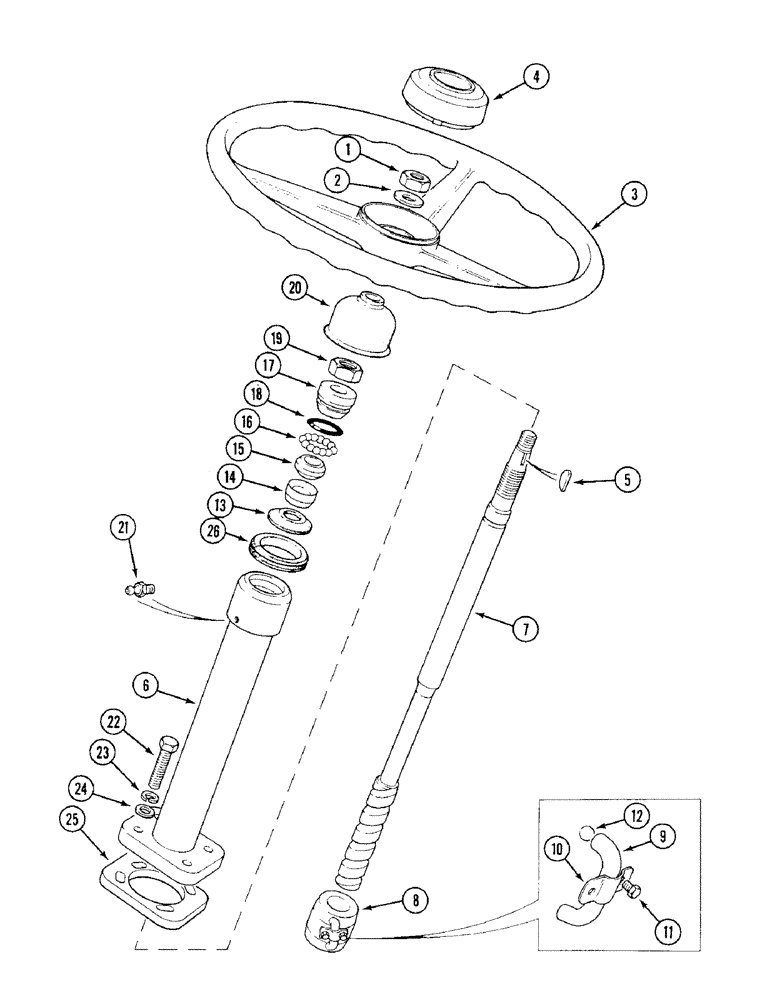

Запчасти Case IH 1394 (5-104) - STEERING COLUMN, MANUAL STEERING, NOT NORTH AMERICA (05) - STEERING

1

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8 inch UNC

1шт.

2

K626671

WASHER

- 5/8 inch (16 mm) special

1шт.

3

K956407

SCREW

WHEEL - steering

1шт.

4

K300074

COVER

CAP - hub

1шт.

5

K19608

KEY

- Woodruff, no., 606

1шт.

NSS

NOT SOLD SEPARAT

COLUMN ASSEMBLY - steering, Includes: Ref. 6 - 21

1шт.

6

K200714

SUPPORT

COLUMN - steering

1шт.

7

K956633

SCREW

AND NUT ASSEMBLY - steering, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

NUT - steering

1шт.

9

K960990

TUBE NUT

TUBE - transfer, halves

2шт.

10

K960991

RETAINER

CLIP - transfer tubes

1шт.

11

K960992

BOLT

- 1/4 inch UNF, special

2шт.

12

211-1010

BALL,5/16" OD

- chrome alloy steel, 5/16 inch (8 mm)

28шт.

13

F903469

BAFFLE - rubber

1шт.

14

K903461

SPACER

SEATING - spherical

1шт.

15

K903462

SPHERICAL BEARING

BEARING - lower

1шт.

16

211-1012

BALL,3/8" Dia

- chrome alloy steel, 3/8 inch (10 mm)

12шт.

17

K903463

BEARING CONE

CONE - bearing, adjustable

1шт.

18

K903468

O-RING,0.156" Thk x 1.234" ID, 75 Duro

- 1-1/4 inch (31 mm) ID

1шт.

19

K924967

NUT

- lock, column

1шт.

20

K923681

SEAL

COVER - column

1шт.

21

K690792

FITTING

- grease, 1/4 inch UNF

1шт.

22

K600606

BOLT

- 7/16 UNC x 2 inch

4шт.

23

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16'

4шт.

24

K626314

WASHER

- 7, 7/16 inch (11 mm)

4шт.

25

K300651

BUSHING

SPACER - steering box

1шт.

26

K304378

COVER

GROMMET - instrument panel

1шт.
