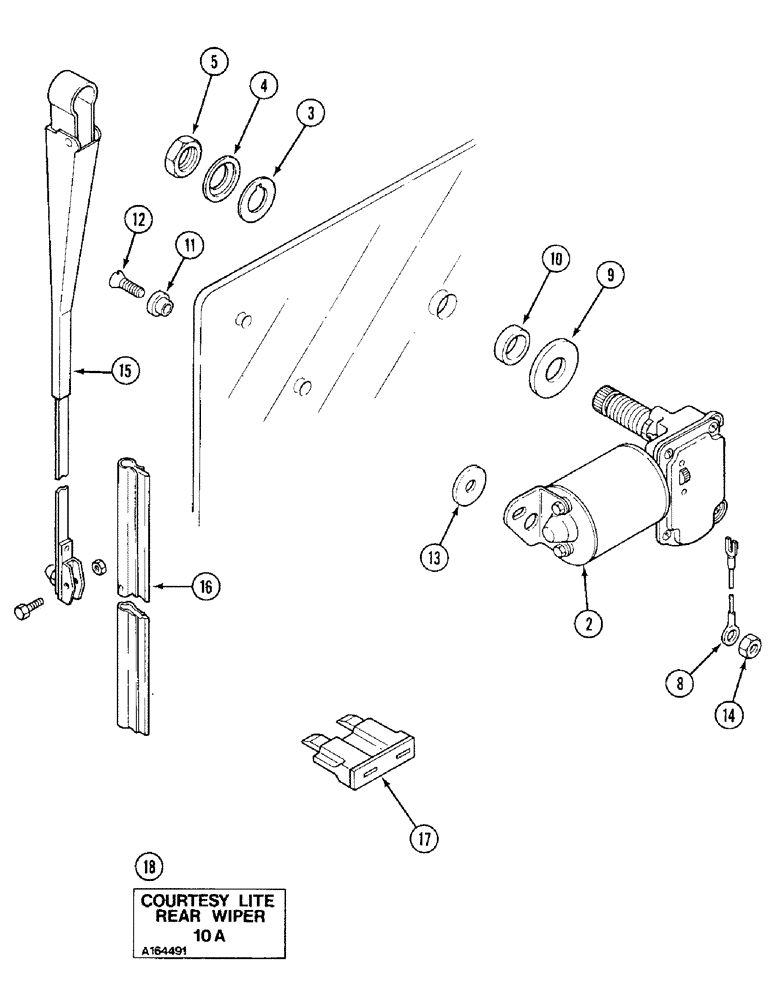

Запчасти Case IH 1394 (4-100) - REAR WINDOW WIPER, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

KIT - rear window wiper (Order individual items), Includes: Ref. 2 - 5

1шт.

2

F93209

WIPER MOTOR

MOTOR - wiper, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - leather (Order F93209)

1шт.

4

NSS

NOT SOLD SEPARAT

SPACER - wiper motor (Order F93209)

1шт.

5

NSS

NOT SOLD SEPARAT

NUT - wiper motor (Order F93209)

1шт.

8

A165075

ELECTRICAL WIRE

WIRE - wiper motor ground

1шт.

9

A165073

WASHER

- nylon, 5/8 x 1-1/2 x 7/64 inch (16 x 38 x 3 mm)

1шт.

10

A165074

SPACER

- nylon, 41/64 x 7/8 x 1/4 inch (16 x 22 x 6 mm)

1шт.

11

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- motor mounting

1шт.

12

142-102

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- mounting, Phillips head, no. 10-24 x 3/4 inch

1шт.

13

A165076

WASHER,7.87mm ID x 25.4mm OD x 3.05mm Thk

- nylon, 5/16 x 1 x 7/64 inch (8 x 25 x 3 mm)

1шт.

14

230-42409

NUT,#10-24, GA

NUT - hex, self-locking, No. 10 NC

1шт.

15

D78019

WIPER ARM

ARM - wiper blade

1шт.

16

A42580

WIPER BLADE,203.2mm L

BLADE - wiper

1шт.

17

A149800

FUSE,10 Amp

- red, 10 ampere

1шт.

18

A164491

DECAL

- fuse

1шт.

L77320

CONDUIT

- wire

1шт.
