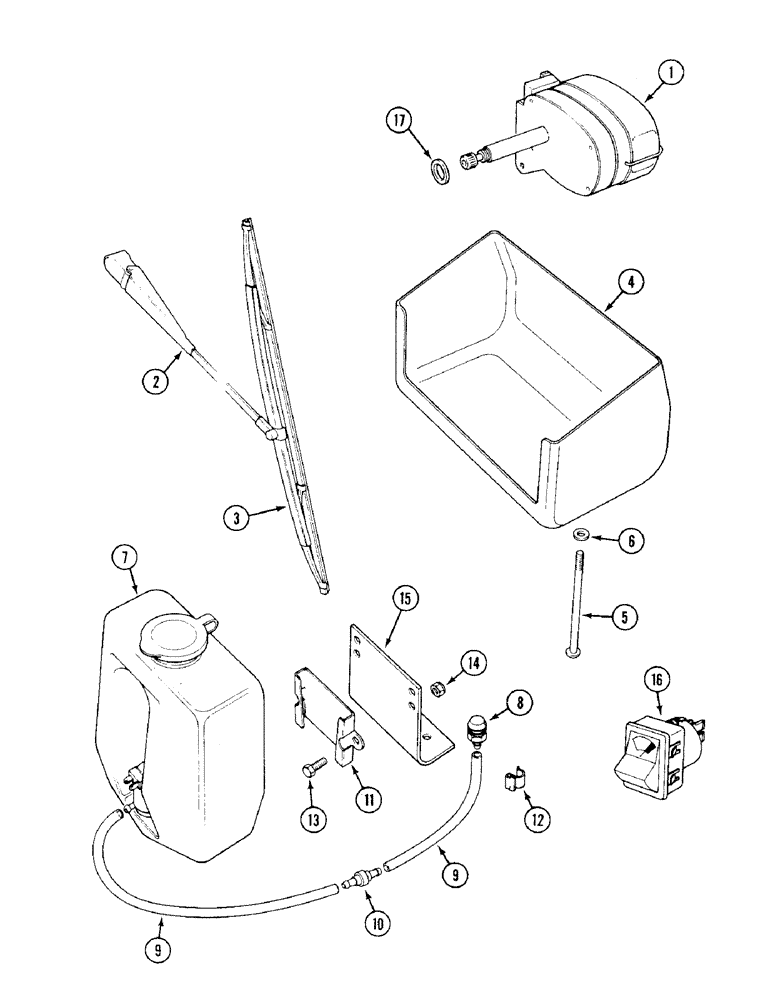

Запчасти Case IH 1394 (4-098) - WINDSHIELD WIPER AND WASHER, TRACTORS WITH CAB (04) - ELECTRICAL SYSTEMS

1

K309641

MOTOR, ELECTRIC

MOTOR - windshield wiper (Replaces K303716)

1шт.

2

K303717

WIPER ARM

ARM - windshield wiper

1шт.

3

K262711

WIPER BLADE

BLADE - windshield wiper

1шт.

4

K307577

COVER

- wiper motor

1шт.

5

K652510

SCREW,Pan, M5 x 0.8 x 100mm, Gr 4.8

- M5 x 100 mm

1шт.

6

K651776

WASHER

- 5 mm

1шт.

REF

INSTRUCTION

WASHER ASSEMBLY - windshield, Includes: Ref. 7 - 11

1шт.

7

K304596

RESERVOIR

- washer (With pump)

1шт.

8

3129899R92

JET

NOZZLE - washer

1шт.

9

NSS

NOT SOLD SEPARAT

TUBE - plastic 6mm OD (Cut 2050 mm from L108947)

1шт.

10

K307050

VALVE

- non-return

1шт.

11

K304597

SUPPORT

BRACKET - support, reservoir

1шт.

12

K625021

CLIP

STRAP - tube, 5/16 inch

4шт.

13

627-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 10.9, Full Thd

- hex, 6 - 1 x 14 mm class 10.9

2шт.

14

K652106

LOCK NUT

- M6, self-locking

2шт.

15

K306982

BRACKET

- support, reservoir

1шт.

16

245911C1

TOGGLE SWITCH

SWITCH - windshield wiper/washer, Includes: decal

1шт.

245915C1

DECAL

DECAL - symbol

1шт.

17

K627330

BUSHING

SPACER - wiper spindle

2шт.
