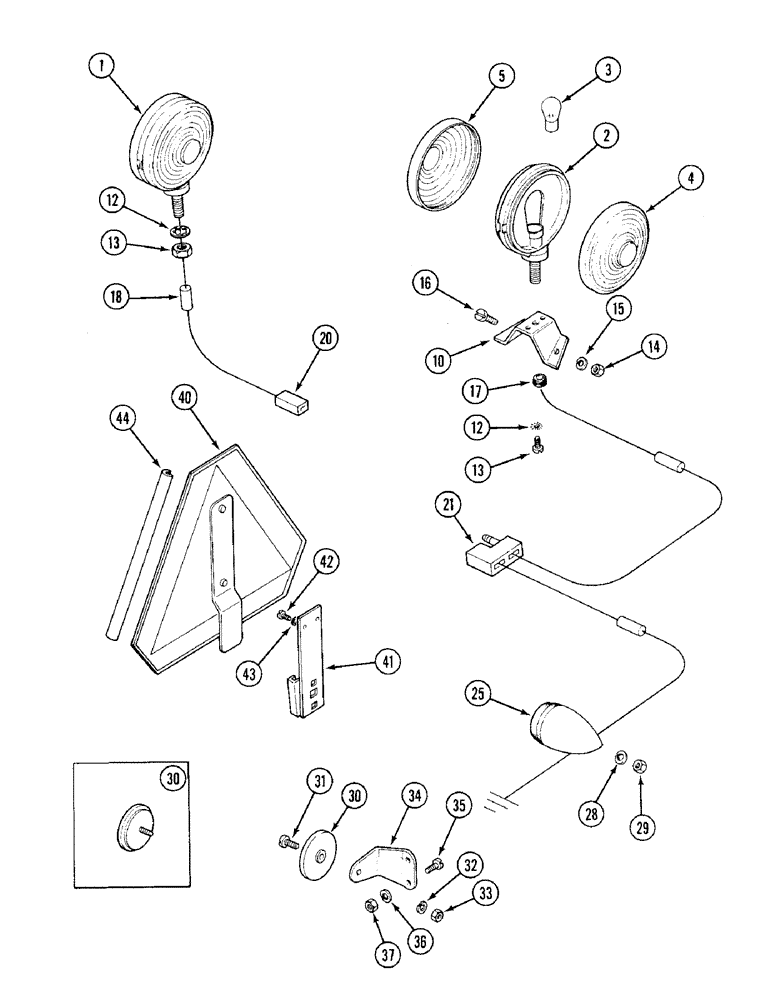

Запчасти Case IH 1394 (4-094) - LAMPS, WIRING AND REFLECTORS, LOW PROFILE SPECIAL, P.I.N. 11138409 AND AFTER (04) - ELECTRICAL SYSTEMS

1

K309425

LAMP

ASSEMBLY - flaser, LH and RH rear fender, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

3

K310118

BULB

- lamp, double contact, single filament

1шт.

4

3112683R1

LENS

- front, amber

1шт.

5

3112682R1

LENS

- rear, amber

1шт.

10

K309426

BRACKET

- mounting, flasher lamp

2шт.

12

K626480

WASHER

- lock, 1/2 inch

2шт.

13

K617033

NUT

- 1/2 inch UNF

2шт.

14

225-14110

NUT,#10-24

4шт.

15

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

16

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- No. 10 NC x 1/2 inch

4шт.

17

248-2340

GROMMET,3/8" ID x 5/8" Groove Dia, Str Cut

Wire 3/8" ID x 5/8" Groove Dia, Str Cut

4шт.

18

A30366

CABLE

CONNECTOR - wire

2шт.

20

A165855

HARNESS

- flasher, RH

1шт.

21

A165854

HARNESS

- flasher, LH and tail lamp

1шт.

25

K921235

LAMP

ASSEMBLY - tail, Includes: bulb and lens

1шт.

1094369R1

BULB

- lamp (12/14 volt 6 watt)

1шт.

K960888

LENS

- lamp (Red)

1шт.

28

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

425-114

NUT,1/4"-28, G5

2шт.

30

K302778

REFLECTOR

- red

2шт.

31

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- No. 10 NF x 1/2 inch, Includes: washer and nut

1шт.

32

K626340

RING

WASHER - lock, 3/16 inch

1шт.

33

225-14210

NUT,#10-32

1шт.

34

K943024

BRACKET

- mounting, reflector

2шт.

35

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- No. 10 NC x 1/2 inch

4шт.

36

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

37

225-14110

NUT,#10-24

4шт.

40

A59450

WARNING SIGN

EMBLEM - S.M.V.

1шт.

41

K302725

BRACKET

- S.M.V. mounting

1шт.

42

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

43

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

44

A165860

TRIM

- emblem

1шт.
