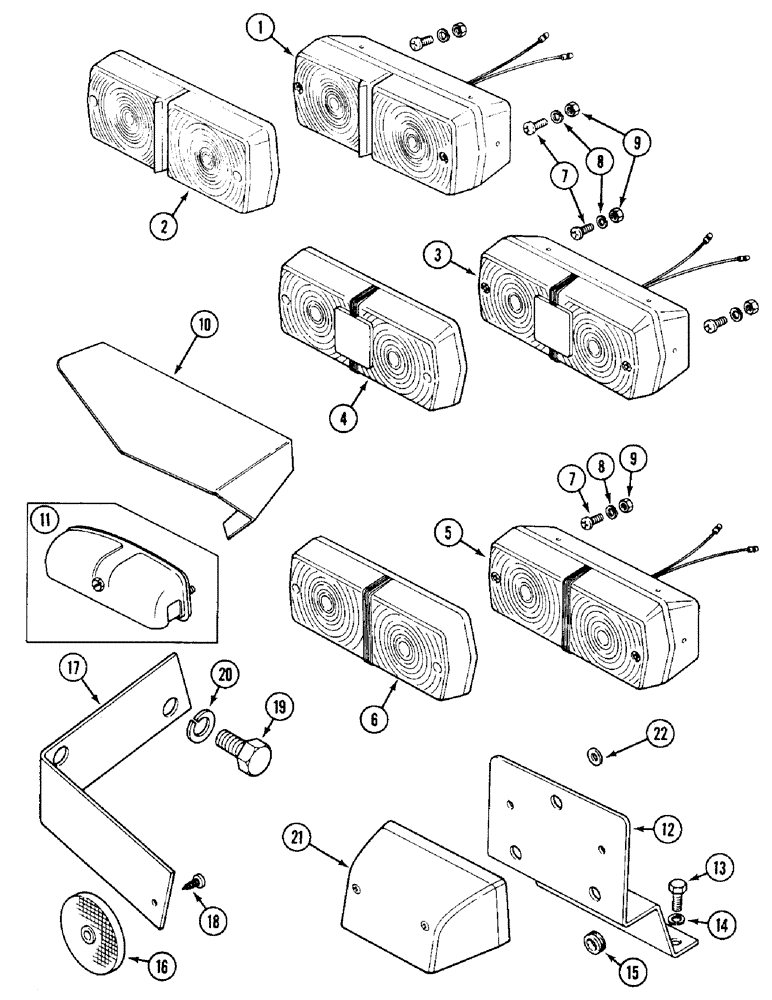

Запчасти Case IH 1394 (4-088) - SIDE AND REAR WARNING LAMPS, TRACTORS WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

K304892

LIGHT

LAMP ASSEMBLY - left-hand front, side flasher (Britax), Includes: Ref. 2

1шт.

2

K261792

LENS

- lamp

1шт.

1

K304892

LIGHT

LAMP ASSEMBLY - right-hand front, side flasher (Britax), Includes: Ref. 2

1шт.

2

K261792

LENS

- lamp

1шт.

3

K304888

LAMP

ASSEMBLY - stop, flasher, rear, LH (Britax) (Not North America), Includes: Ref. 4

1шт.

4

K261791

LENS

- lamp, lamp

1шт.

3

K304887

LAMP

ASSEMBLY - stop, flasher, rear, RH (Britax) (Not North America), Includes: Ref. 4

1шт.

4

K261791

LENS

- lamp

1шт.

5

K304885

LIGHT ASSY.

LAMP ASSEMBLY - stop, flasher, rear, LH (North America only), Includes: Ref. 6

1шт.

6

K261790

LENS

- lamp, lamp

1шт.

5

K304889

LAMP

ASSEMBLY - stop, flasher, rear, RH (North America only), Includes: Ref. 6

1шт.

6

K261790

LENS

- lamp

1шт.

7

K652504

SCREW

- M5 x 16 mm

8шт.

8

K651846

WASHER, LOCK

WASHER - lock, 5 mm

8шт.

9

K652871

NUT

- M5, special

8шт.

10

K307941

LAMP

SHIELD - lamp, left-hand (North America only)

1шт.

10

K307981

LAMP

SHIELD - lamp, right-hand (North America only)

1шт.

11

K311863

INTERIOR LIGHT

LAMP - rear number plate (Not North America)

1шт.

12

K301333

BRACKET

- rear lamp support, without ROPS

1шт.

12

K301856

BRACKET

- rear lamp support, with ROPS

1шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

15

K627705

GROMMET

- 14 mm

1шт.

16

K302778

REFLECTOR

- red

2шт.

17

K303987

BRACKET

- reflector, right-hand

1шт.

17

K303988

BRACKET

- reflector, left-hand

1шт.

18

K624797

SCREW

- self-tapping, No., 6 x 1/2 inch

2шт.

19

K603104

SCREW

BOLT - 1/2 UNC x 1 inch

4шт.

20

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

21

K311863

INTERIOR LIGHT

LAMP - rear number plate, with harness

1шт.

22

K651813

WASHER

- special, plain

2шт.
