(4-086) - FLOOD LAMP, NORTH AMERICA ONLY, FRONT

Запчасти Case IH 1394 (4-086) - FLOOD LAMP, NORTH AMERICA ONLY, FRONT (04) - ELECTRICAL SYSTEMS

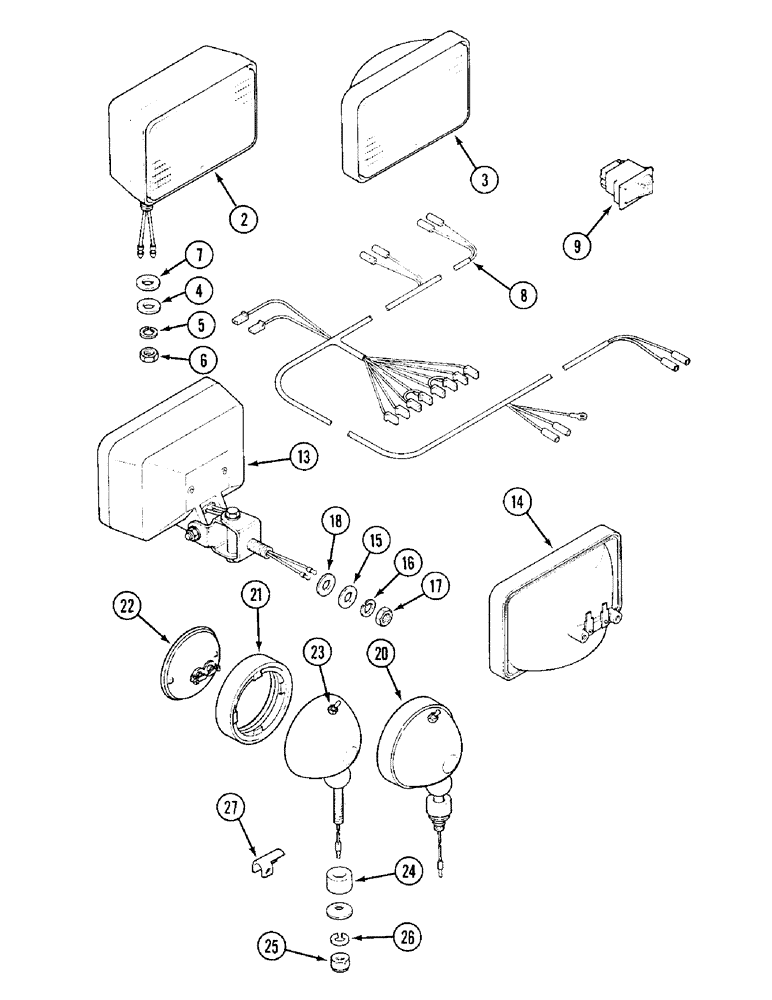

Схема запчастей Case IH 1394 - (4-086) - FLOOD LAMP, NORTH AMERICA ONLY, FRONT (04) - ELECTRICAL SYSTEMS
8
3
20
6
16
24
15
25
18
22
7
27
2
13
26
21
5
9
23
14
4
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

KIT - flood lamp, front (Order components), Includes: Ref. 2 - 9

1шт.

2

REF

INSTRUCTION

LAMP ASSEMBLY - flood, Includes: Ref. 3 - 6

2шт.

3

A48265

LAMP

BULB - sealed beam, Includes: screws

1шт.

4

195-533

WASHER,1/2", SAE

- flat, 1/2" (17/32 x 1-1/16 x 3/32")

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

7

A165395

WASHER,.50mm ID x 1.0mm OD x .060 Thk

- sealing

2шт.

8

A169562

HARNESS

- flood lamp

1шт.

9

REF

INSTRUCTION

SWITCH - flood lamp

2шт.

NSS

NOT SOLD SEPARAT

KIT - flood lamp, rear (Order components), Includes: Ref. 13 - 18

1шт.

13

REF

INSTRUCTION

LAMP ASSEMBLY - clutch, flood, rear, Includes: Ref. 14 - 17

2шт.

14

A48265

LAMP

BULB - seal beam (Includes screws), rear

1шт.

15

195-533

WASHER,1/2", SAE

- flat, 1/2" (17/32 x 1-1/16 x 3/32"), rear

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Rear 1/2"

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Rear 1/2"-13, G5

1шт.

18

A165395

WASHER,.50mm ID x 1.0mm OD x .060 Thk

- sealing, rear

2шт.

REF

INSTRUCTION

FLOOD LAMP - clutch, 27 x 2 mm), right rear, low profile special, Includes: Ref. 20 - 27

1шт.

20

A151886

LAMP

ASSEMBLY - flood, right rear, low profile special, Includes: Ref. 21 - 26

1шт.

21

A25213

RETAINER

- lamp, lamp, right rear flood, low profile special

1шт.

22

A47179

BULB

LAMP - seal beam (No. 4406), right rear flood, low profile special

1шт.

23

A47700

SWITCH ASSY

SWITCH - toggle, right rear flood lamp, low profile special

1шт.

24

D37048

BUSHING

- lamp, right rear flood, low profile special

1шт.

25

425-158

JAM NUT,Jam, 1/2"-20, G5

Right rear flood lamp, low profile special Jam, 1/2"-20, G5

1шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Right rear flood lamp, low profile special 1/2"

1шт.

27

A177595

CLIP, WIRE

CLIP - wire shield, right rear flood lamp, low profile special

1шт.
