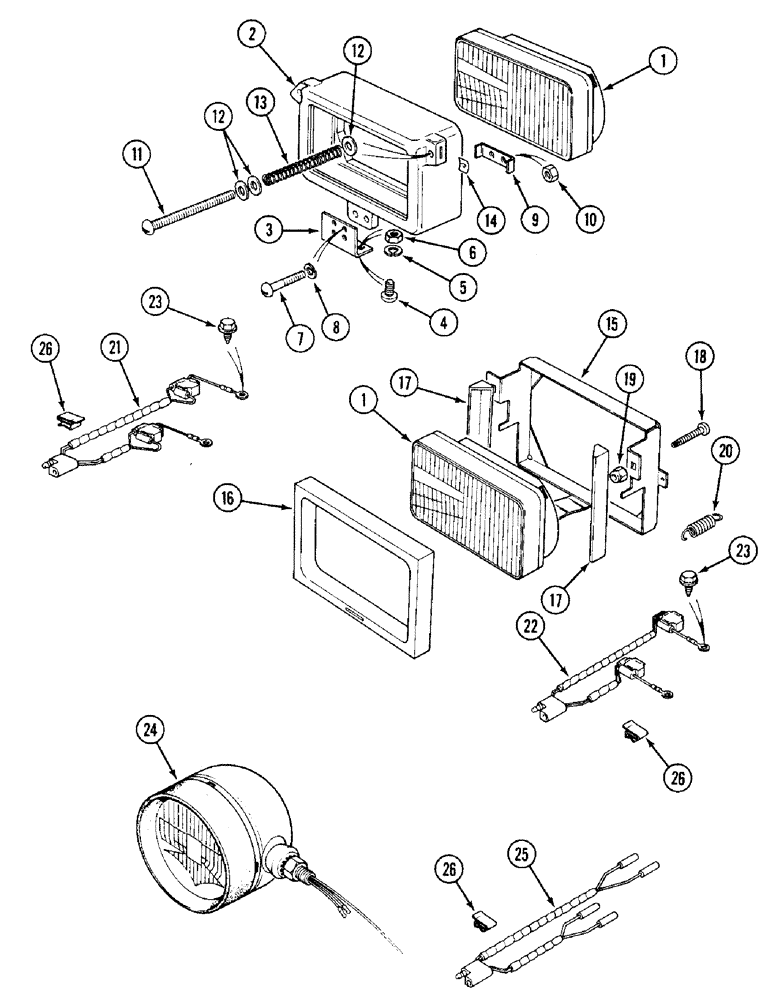

Запчасти Case IH 1394 (4-082) - HEADLAMPS (04) - ELECTRICAL SYSTEMS

1

1333295C1

HEADLIGHT

HEADLAMP - white bulb, left-hand, angled beam, Does Not Include Bulb

2шт.

91967C1

BULB

- light, "white"

1шт.

1

1333291C1

HEADLIGHT,12V, 55W

HEADLAMP - white bulb, right-hand, angled beam, Does Not Include Bulb

2шт.

91967C1

BULB

- light, , white

1шт.

1

K300725

BULB

HEADLAMP - yellow bulb, right-hand angled beam

2шт.

1

A139458

LAMP

LIGHT - head, sealed beam, vertical low beam

2шт.

2

K262748

BRACKET

LAMP - (Inboard headlamps below waist rail)

2шт.

3

K300762

BRACKET

- support (Inboard headlamps below waist rail)

2шт.

4

K652504

SCREW

- M5 x 16 mm (Inboard headlamps below waist rail)

4шт.

5

K651846

WASHER, LOCK

WASHER - lock, 5 mm (Inboard headlamps below waist rail)

4шт.

6

825-1405

NUT,M5, Cl 8

(Inboard headlamps below waist rail) M5, Cl 8

4шт.

7

30464R1

SCREW,Cross Pan Hd, M5 x 25

- M5 x 25 mm (Inboard headlamps below waist rail)

4шт.

8

K651846

WASHER, LOCK

WASHER - lock, 5 mm (Inboard headlamps below waist rail)

4шт.

9

K300763

CLAMP

- housing (Inboard headlamps below waist rail)

2шт.

10

825-1405

NUT,M5, Cl 8

(Inboard headlamps below waist rail) M5, Cl 8

4шт.

11

K605643

SCREW,Pan, #10 - 24 x 2 1/2"

- adjusting, No. 10 UNC x 2-1/2 inch (Inboard headlamps belowwaist rail)

4шт.

12

K651776

WASHER

- 5 mm (Inboard headlamps below waist rail)

12шт.

13

K625093

SPRING

- pressure (Inboard headlamps below waist rail)

4шт.

14

K607478

NUT

- No. 10 UNC (Inboard headlamps below waist rail)

4шт.

15

K304824

SUPPORT

HOUSING - lamp (Inboard headlamps mounted in waist rail)

2шт.

16

K304831

RUBBER INSULATOR

SHROUD - rubber (Inboard headlamps mounted in waist rail)

2шт.

17

K304832

MOLDING

MOULDING - rubber (Inboard headlamps mounted in waist rail)

4шт.

18

K603641

SCREW

- headlamp adjusting (Inboard headlamps mounted in waist rail)

4шт.

19

K617503

NUT

- nylon (Inboard headlamps mounted in waist rail)

4шт.

20

K658240

SPRING

- retaining (Inboard headlamps mounted in waist rail)

4шт.

21

K304927

HARNESS

- electrical (Inboard headlamps)

1шт.

22

K304928

HARNESS

- sealed beam headlamps (Inboard headlamps)

1шт.

23

K624532

SCREW

- self-tapping, No. 14 x 1/2 inch (Inboard headlamps)

2шт.

24

K302167

HEADLIGHT

HEADLAMP - white bulb, left-hand, outboard (Not North America)

1шт.

24

K302168

HEADLIGHT

HEADLAMP - white bulb, right-hand, outboard (Not North America)

1шт.

25

K300750

HARNESS

- outboard headlamps

1шт.

26

K621744

CLIP

- harness to grille frame

3шт.
