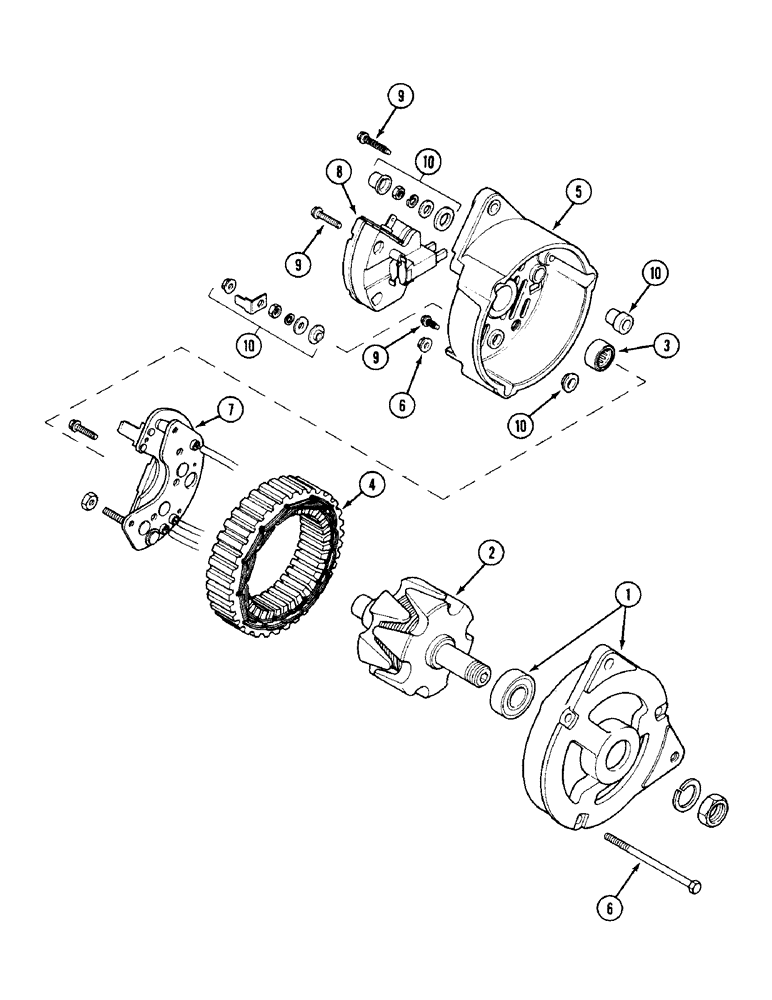

Запчасти Case IH 1394 (4-080) - ALTERNATOR ASSEMBLY, ENGINES PRIOR TO P.I.N. 11399939, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR - (12 volt - 65 amperes), Includes: Ref. 1 - 10

1шт.

1

K262268

BRACKET

FRAME ASSEMBLY - drive end

1шт.

2

K262270

ROTOR

ASSEMBLY

1шт.

3

K262272

ROLLER BEARING

BEARING - slip ring end

1шт.

4

K262275

STATOR

1шт.

5

K262271

SUPPORT

FRAME - slip ring end

1шт.

6

K262274

PACKAGE

BOLT KIT - through, with nuts and washers

1шт.

7

K262267

RECTIFIER

SCREWS AND NUTS ASSEMBLY

1шт.

8

K262266

REGULATOR

AND BRUSH HOLDER ASSEMBLY

1шт.

9

K262477

KIT

SUNDRY KIT

1шт.

NSS

NOT SOLD SEPARAT

SPACERS - various

1шт.

10

K262478

KIT

TERMINAL KIT, Includes: washers and nuts

1шт.
