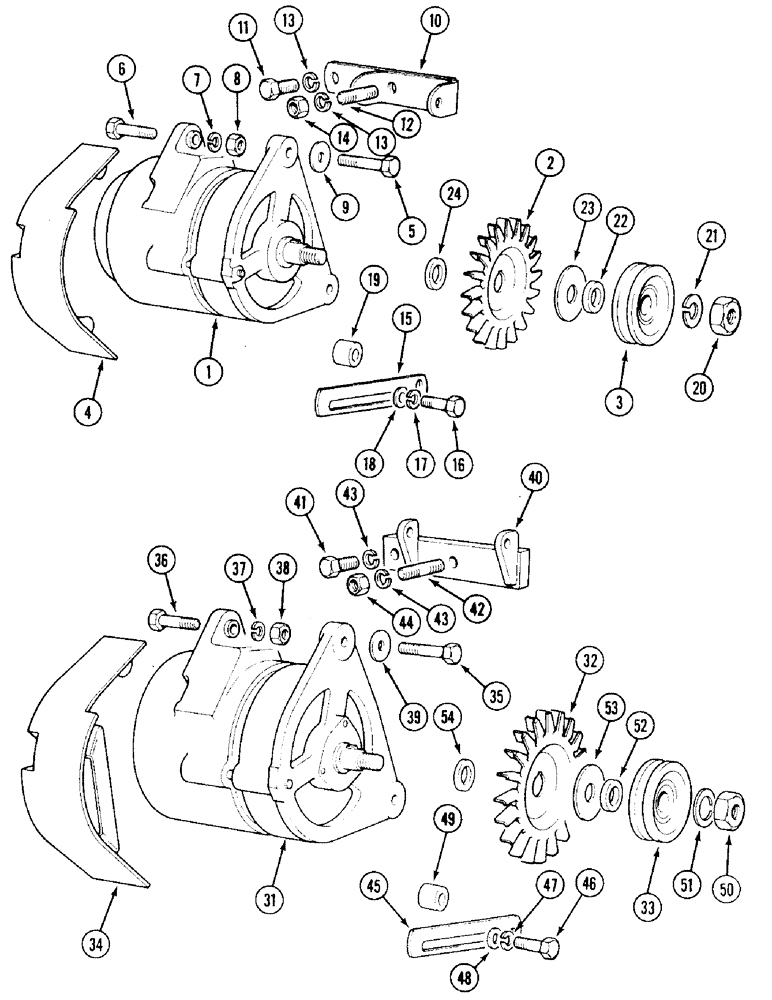

Запчасти Case IH 1394 (4-076) - ALTERNATOR FITTINGS, ENGINES P.I.N. 11399371 AND AFTER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR, See Figure 4-78

1шт.

1

92293C1

ALTERNATOR

Alternator, 12V, 45 Amp, W/Fan and Pulley

1шт.

1

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

1

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

1

92293C1GV

ALTERNATOR

Value, 12 Volt, 45 Amp, W/Fan and Pulley

1шт.

2

K311704

FAN

FAN - alternator

1шт.

3

K311701

PULLEY

PULLEY - alternator, 70 mm diameter

1шт.

4

K302427

GUARD

GUARD - alternator

1шт.

5

K650646

BOLT

BOLT - M8 x 40 mm

1шт.

6

K650645

BOLT

BOLT - M8 x 35 mm

1шт.

7

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

8

825-1408

NUT,M8, Cl 8

Nut, M8, Cl 8

2шт.

9

K626916

WASHER

WASHER - special, 5/16 inch (8 mm)

1шт.

10

K947375

SUPPORT

BRACKET - support

1шт.

11

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

K608236

STUD

STUD - 3/8 UNC x 1-1/2 inch

1шт.

13

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

14

280136

NUT,3/8"-16, G8

NUT, 3/8"-16, G8

1шт.

15

K950495

ADJUSTER

STRAP - adjuster

1шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 8 - 1.25 x 25 mm

1шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

18

K626916

WASHER

WASHER - special, 5/16 inch (8 mm)

1шт.

19

K627028

BUSHING

SPACER - strap

1шт.

20

K262477

KIT

SUNDRY KIT

1шт.

21

K262477

KIT

SUNDRY KIT

1шт.

22

K311702

SPACER

SPARE PART SPACER - pulley

1шт.

23

K311703

WASHER

WASHER - special, fan, support

1шт.

24

K311705

SPACER

SPACER - fan

1шт.

31

REF

INSTRUCTION

ALTERNATOR, See Figure 4-80, engines P.I.N. 11399939 and after

1шт.

32

K311704

FAN

FAN - alternator, engines P.I.N. 11399939 and after

1шт.

33

K311707

PULLEY

PULLEY - heavy duty, 80 mm diameter, engines P.I.N. 11399939 and after

1шт.

34

K302427

GUARD

GUARD - heavy duty, engines P.I.N. 11399939 and after

1шт.

35

K650646

BOLT

BOLT - M8 x 40 mm, engines P.I.N. 11399939 and after

1шт.

36

K65065

BOLT - M8 x 35 mm, engines P.I.N. 11399939 and after

2шт.

37

K19481

SPRING WASHER

WASHER - lock, 5/16 inch, engines P.I.N. 11399939 and after

2шт.

38

825-1408

NUT,M8, Cl 8

Nut, , Engines P.I.N. 11399939 and after M8, Cl 8

1шт.

39

K626916

WASHER

WASHER - special, 5/16 inch (8 mm), engines P.I.N. 11399939 and after

1шт.

40

K204286

MOUNTING PARTS

BRACKET - support, engines P.I.N. 11399939 and after

1шт.

41

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, , Engines P.I.N. 11399939 and after Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

42

K608236

STUD

STUD - 3/8 UNC x 1-1/2 inch, engines P.I.N. 11399939 and after

1шт.

43

492-11038

LOCK WASHER,3/8"

LOCK WASHER, , engines P.I.N. 11399939 and after 3/8"

2шт.

44

280136

NUT,3/8"-16, G8

NUT, , Engines P.I.N. 11399939 and after 3/8"-16, G8

1шт.

45

K951676

STRAP

STRAP - adjuster, engines P.I.N. 11399939 and after

1шт.

45

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 8 - 1.25 x 25 mm, engines P.I.N. 11399939 and after

1шт.

47

K19481

SPRING WASHER

WASHER - lock, 5/16 inch, engines P.I.N. 11399939 and after

1шт.

48

K626916

WASHER

WASHER - special, 5/16 inch (8 mm), engines P.I.N. 11399939 and after

1шт.

49

K627336

BUSHING

SPACER - strap, engines P.I.N. 11399939 and after

1шт.

50

K262477

KIT

SUNDRY KIT, engines P.I.N. 11399939 and after

1шт.

51

K262477

KIT

SUNDRY KIT, engines P.I.N. 11399939 and after

1шт.

52

K311705

SPACER

SPACER - fan, engines P.I.N. 11399939 and after

1шт.

53

K311703

WASHER

WASHER - special, fan, support, engines P.I.N. 11399939 and after

1шт.

54

K311705

SPACER

SPACER - fan, engines P.I.N. 11399939 and after

1шт.
