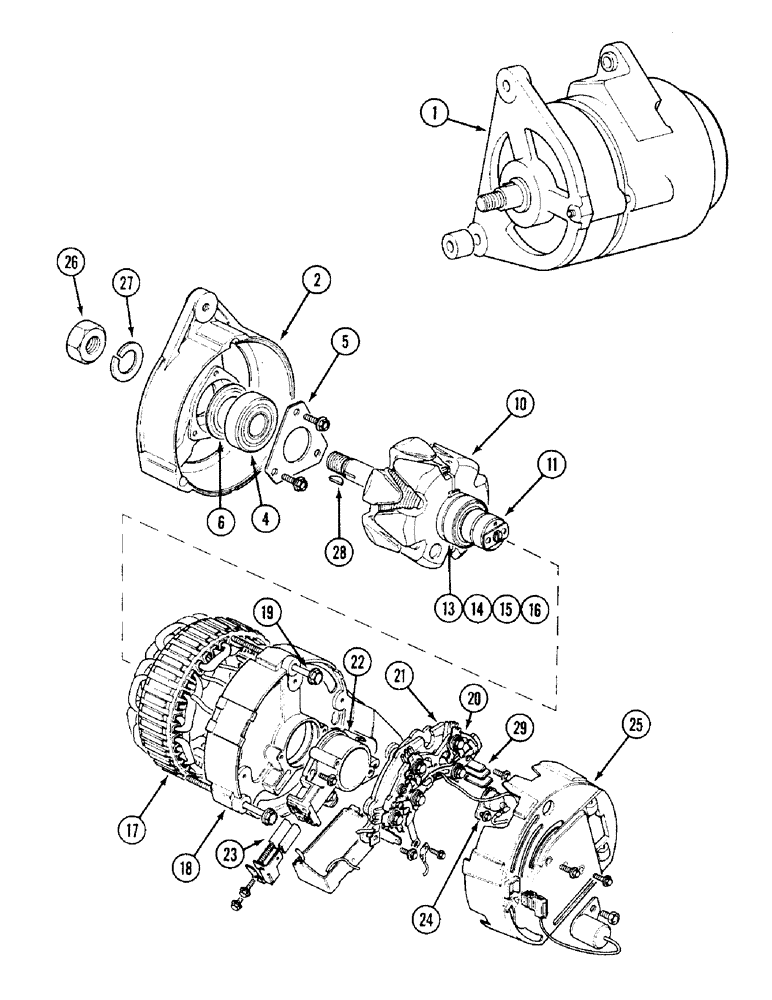

Запчасти Case IH 1394 (4-074) - ALTERNATOR ASSEMBLY, ENGINES PRIOR TO P.I.N. 11399939, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS

1

92281C1

ALTERNATOR

ALTERNATOR ASSEMBLY - (W/O fan and pulley) (12 volt, 65 amperes)

1шт.

ref 1 Service bulletin NTRSB03187 tells of the different alternators used on the '94. CAM/CNS 4/26/99

1шт.

1

87800219R

REMAN-ALTERNATOR

Reman for New P/N 92281C1

1шт.

1

87800219C

CORE-ALTERNATOR

Return Part Number

1шт.

2

A47996

BRACKET

BRACKET - drive end

1шт.

84108C1

PACKAGE

FRAME ASSEMBLY - drive end

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - bearing retaining

1шт.

6

NSS

NOT SOLD SEPARAT

RING - pressure

1шт.

10

A47998

ROTOR

ROTOR ASSEMBLY

1шт.

A47999

KIT

SPARE PART KIT - rotor, slip ring end

1шт.

11

A48000

RING

RING - rotor, slip

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING -

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - dust (Black)

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - dust (White)

1шт.

16

NSS

NOT SOLD SEPARAT

RING - pressure

1шт.

17

A48002

STATOR

STATOR

1шт.

18

A48001

BRACKET

BRACKET - slip ring end

1шт.

19

K261954

BOLT

BOLT - through

4шт.

20

A47995

RECTIFIER

RECTIFIER ASSEMBLY

1шт.

21

A47994

REGULATOR

REGULATOR ASSEMBLY

1шт.

22

A48003

HOLDER

HOLDER ASSEMBLY - brush

1шт.

23

A48004

BRUSH, COMMUTATOR

BRUSH BRUSH SET

1шт.

24

A48009

DIODE

DIODE - isolation (Surge protection)

1шт.

25

A47993

COVER

COVER - rear, drive end

1шт.

A48007

SCREW

HARDWARE KIT - includes retaining screws, Includes: all screws illustrated but not listed or identified

1шт.

A48008

COLLAR

COLLAR KIT - spacer, Includes: assorted spacers

1шт.

A48006

KIT

SPARE PART SUNDRY KIT

1шт.

26

NSS

NOT SOLD SEPARAT

NUT - shaft

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - lock, shaft nut

1шт.

28

NSS

NOT SOLD SEPARAT

KEY - Woodruff, Serial Range: shaft-pulley

1шт.

29

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.
