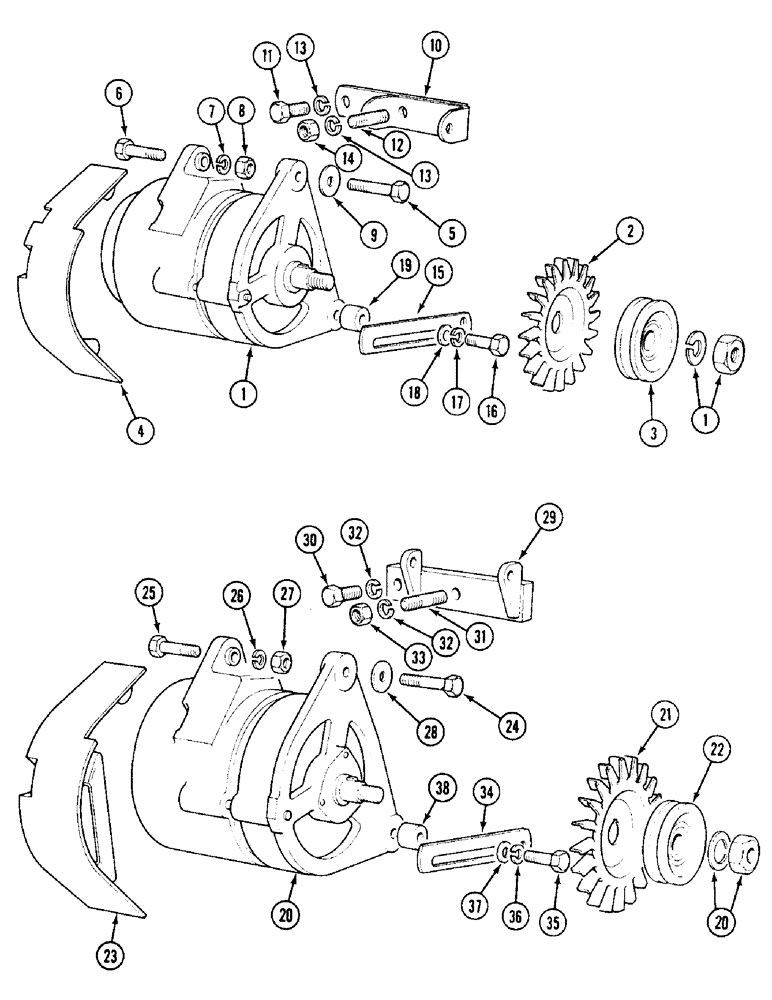

Запчасти Case IH 1394 (4-070) - ALTERNATOR FITTINGS, ENGINES PRIOR TO P.I.N. 11399371 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR - (Lucas A115-45) (45 ampere), See Figure 4-72

1шт.

2

K306623

FAN

FAN - alternator

1шт.

3

K942045

PULLEY

PULLEY - alternator

1шт.

4

K307744

PROTECTIVE COVER

GUARD - alternator

1шт.

5

K650646

BOLT

BOLT - M8 x 40 mm

1шт.

6

K650645

BOLT

BOLT - M8 x 35 mm

1шт.

7

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

8

825-1408

NUT,M8, Cl 8

Nut, M8, Cl 8

2шт.

9

K626916

WASHER

WASHER - special, 5/16 inch (8 mm)

1шт.

10

K947375

SUPPORT

BRACKET - support

1шт.

11

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

K608235

STUD

STUD - 3/8 UNC x 1-1/4 inch

1шт.

13

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

14

280136

NUT,3/8"-16, G8

NUT, 3/8"-16, G8

1шт.

15

K950495

ADJUSTER

STRAP - adjuster

1шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 8 - 1.25 x 25 mm

1шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

18

K626916

WASHER

WASHER - special, 5/16 inch (8 mm)

1шт.

19

K627028

BUSHING

SPACER - strap

1шт.

ref

PART NO.

English

1шт.

20

92281C1

ALTERNATOR

ALTERNATOR ASSEMBLY - Lucas A127-65 (Without fan and pulley), engines prior P.I.N. 11399939

1шт.

ref 20 Service bulletin NTRSB03187 tells of the different alternators used on the '94. CAM/CNS 4/26/99

1шт.

20

87800219R

REMAN-ALTERNATOR

Reman for New P/N 92281C1

1шт.

20

87800219C

CORE-ALTERNATOR

Return Part Number

1шт.

21

K261906

FAN

FAN - alternator, heavy duty, engines prior P.I.N. 11399939

1шт.

22

K307748

PULLEY

PULLEY - heavy duty, engines prior P.I.N. 11399939

1шт.

23

K302427

GUARD

GUARD - heavy duty, engines prior P.I.N. 11399939

1шт.

24

K650646

BOLT

BOLT - M8 x 40 mm, engines prior P.I.N. 11399939

1шт.

25

K650645

BOLT

BOLT - M8 x 35 mm, engines prior P.I.N. 11399939

2шт.

26

K19481

SPRING WASHER

WASHER - lock, 5/16 inch, engines prior P.I.N. 11399939

2шт.

27

825-1408

NUT,M8, Cl 8

Nut, , Engines prior P.I.N. 11399939 M8, Cl 8

1шт.

28

K626916

WASHER

WASHER - special, 5/16 inch (8 mm), engines prior P.I.N. 11399939

1шт.

29

K204286

MOUNTING PARTS

BRACKET - support, engines prior P.I.N. 11399939

1шт.

30

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, , Engines prior P.I.N. 11399939 Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

31

K608207

STUD

SPARE PART STUD - 3/8 UNC x 1-1/2 inch, engines prior P.I.N. 11399939

2шт.

32

492-11038

LOCK WASHER,3/8"

LOCK WASHER, , engines prior P.I.N. 11399939 3/8"

1шт.

33

280136

NUT,3/8"-16, G8

NUT, , Engines prior P.I.N. 11399939 3/8"-16, G8

1шт.

34

K951676

STRAP

STRAP - adjuster, engines prior P.I.N. 11399939

1шт.

35

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 8 - 1.25 x 25 mm, engines prior P.I.N. 11399939

1шт.

36

K19481

SPRING WASHER

WASHER - lock, 5/16 inch, engines prior P.I.N. 11399939

1шт.

37

K626916

WASHER

WASHER - special, 5/16 inch (8 mm), engines prior P.I.N. 11399939

1шт.

38

K627336

BUSHING

SPACER - strap, engines prior P.I.N. 11399939

1шт.
