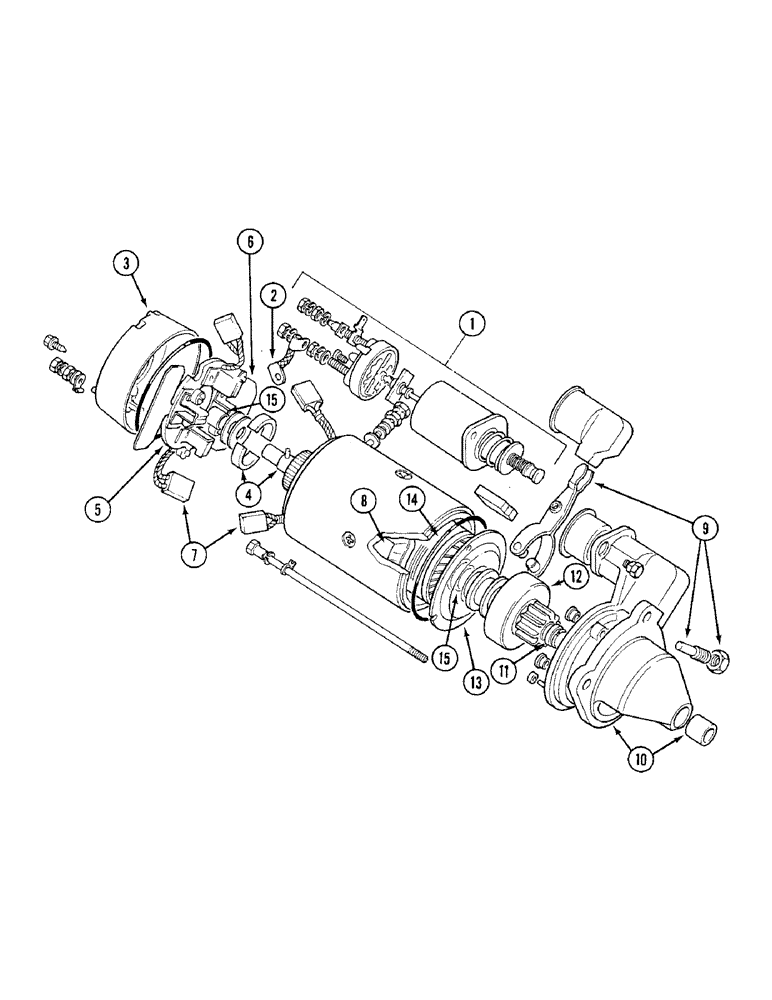

Запчасти Case IH 1394 (4-066) - STARTER ASSEMBLY, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS

K262746

STARTING MOTOR

STARTER ASSEMBLY - 12 volt, Includes: Ref. 1 - 15

1шт.

1

188597A1

SOLENOID

- starter

1шт.

2

K48241

LINK - solenoid

1шт.

3

A48236

BRACKET

ASSEMBLY - commutator end

1шт.

4

3206531R91

BRAKE PACKAGE

KIT - brakes, Includes: shoes, springs, and pins

1шт.

NSS

NOT SOLD SEPARAT

SHOE - brake

2шт.

NSS

NOT SOLD SEPARAT

SPRING - brake

2шт.

NSS

NOT SOLD SEPARAT

PIN - brake

1шт.

5

A48237

PLATE

ASSEMBLY - brush mounting, Includes: Ref. 6

1шт.

6

3206523R91

SPRING KIT

KIT - brush springs (Set of 4)

1шт.

7

705833R91

BRUSH, COMMUTATOR

KIT - brush (Set of 4)

1шт.

8

A48238

COIL

FIELD COIL ASSEMBLY - starter

1шт.

9

H662718

KIT

- solenoid, Includes: link, pin, and nut

1шт.

NSS

NOT SOLD SEPARAT

LINK - solenoid

1шт.

NSS

NOT SOLD SEPARAT

PIN - pivot

1шт.

NSS

NOT SOLD SEPARAT

NUT - lock, pivot pin

1шт.

10

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY - drive end

1шт.

11

A48239

KIT

- retainer, Includes: ring and collar

1шт.

NSS

NOT SOLD SEPARAT

RING - jump

1шт.

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

12

K964242

DRIVE

ASSEMBLY - starter

1шт.

13

A48242

BRACKET

ASSEMBLY - intermediate

1шт.

14

3129384R1

ARMATURE

ASSEMBLY - starter

1шт.

15

3113029R91

BUSHING

KIT - bushes (Set of 3), Includes: bushings

1шт.

NSS

NOT SOLD SEPARAT

BUSHING - drive end

1шт.

NSS

NOT SOLD SEPARAT

BUSHING - intermediate

1шт.

NSS

NOT SOLD SEPARAT

BUSHING - commutator

1шт.

A48243

KIT

- hardware (Includes all items illustrated but not listed or identified)

1шт.
