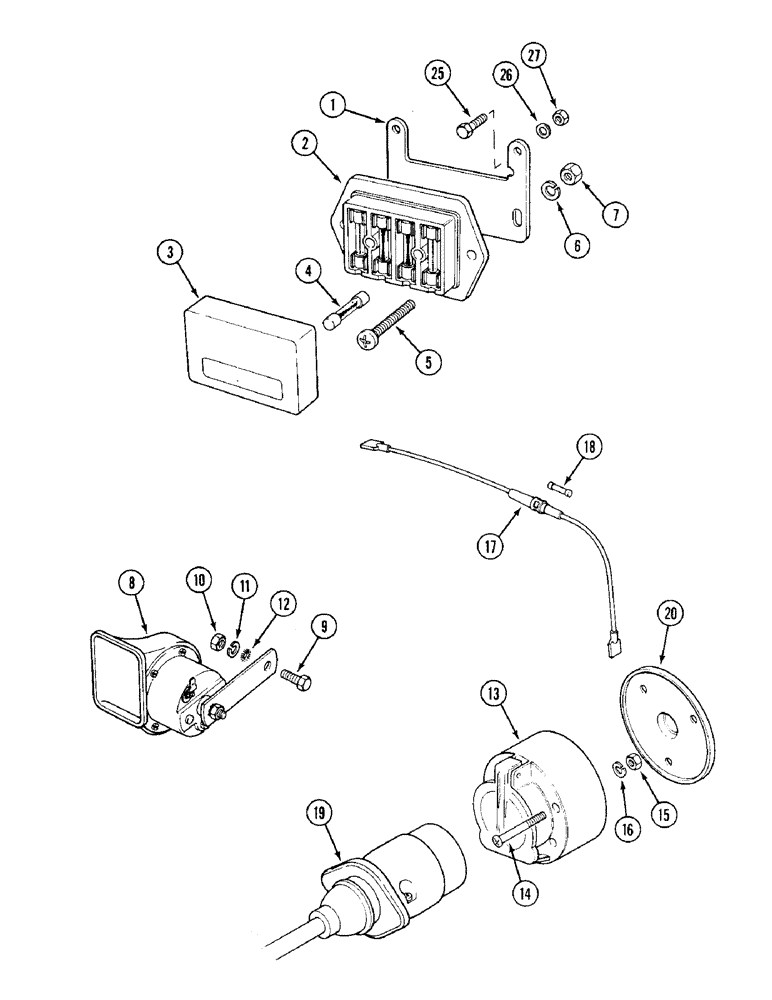

Запчасти Case IH 1394 (4-062) - FUSEBOX, HORN AND TRAILER SOCKET (04) - ELECTRICAL SYSTEMS

1

K300675

BRACKET

- fuse box support

1шт.

NSS

NOT SOLD SEPARAT

FUSEBOX ASSEMLY, Includes: Ref. 2 - 4

1шт.

2

K262721

BOX, FUSE

BOX ASSEMBLY - fuse

1шт.

3

K261009

COVER

- fuse box

1шт.

4

K947431

FUSE

- 35 ampere

2шт.

4

K904459

FUSE

- 25 ampere

1шт.

4

9426333

FUSE,15 Amp, Type 3AG

- 15 ampere

1шт.

5

K615408

SCREW,Pan, #10 - 32 x 1"

- No. 10 UNF x 1 inch

2шт.

6

K626430

WASHER

- tab, retainer bolt

2шт.

7

225-14210

NUT,#10-32

2шт.

9

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

1шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

11

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

1шт.

12

K11524

LOCK WASHER

- lock, 1/4 inch external Shakeproof

1шт.

13

NSS

NOT SOLD SEPARAT

SOCKET - trailer, electrical

1шт.

14

K652468

SCREW

- M5 x 35 mm (Without cab)

3шт.

14

K657695

SCREW

- M5 x 30 mm (With cab)

3шт.

15

825-1405

NUT,M5, Cl 8

3шт.

16

K651846

WASHER, LOCK

WASHER - lock, 5 mm

3шт.

17

K304217

FUSE

HOLDER - with lead, Includes: Ref. 18

1шт.

18

3113048R1

FUSE

- 50 ampere

1шт.

19

3118929R1

SOCKET/RECEPTACLE

RECEPTACLE - seven terminal

1шт.

20

K310532

GUARD

COVER - rubber, trailer socket

1шт.

25

K652503

SCREW

- M5 x 12 mm

2шт.

26

K651846

WASHER, LOCK

WASHER - lock, 5 mm

2шт.

27

825-1405

NUT,M5, Cl 8

2шт.
