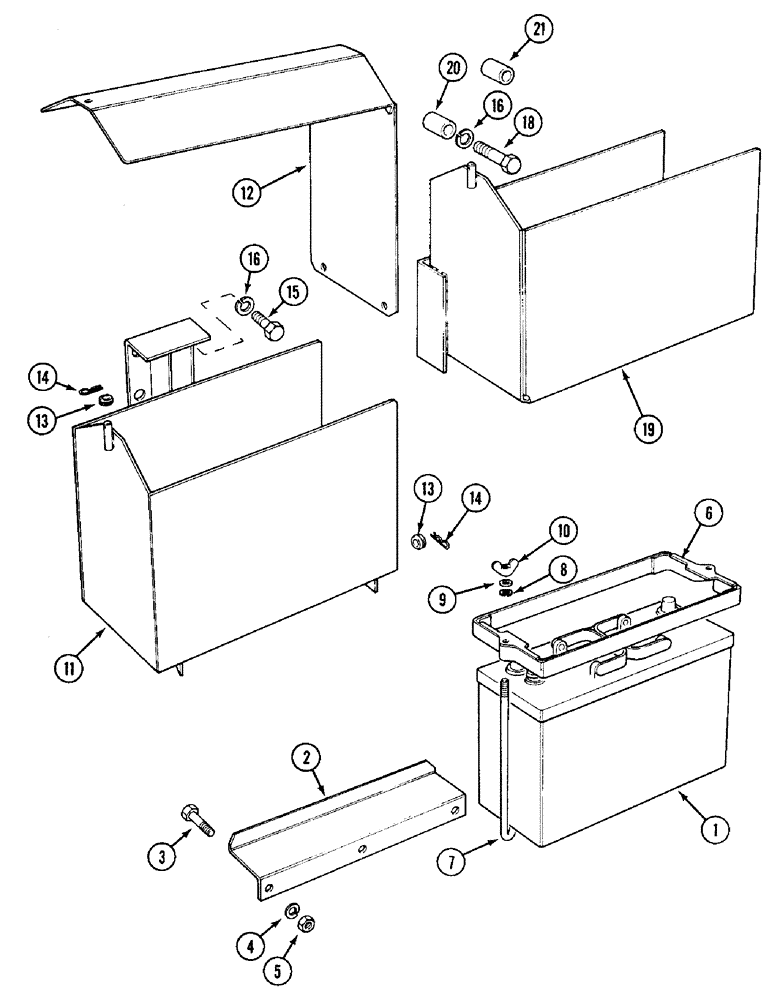

Запчасти Case IH 1394 (4-060) - BATTERY AND SUPPORT BRACKET (04) - ELECTRICAL SYSTEMS

1

K330011

DRY BATTERY

- standard duty

1шт.

1

BMF31H

BATTERY

- dry, 12 volt, low maintenance (North America)

1шт.

1

K330012

BATTERY

- heavy duty

1шт.

1

BHC30

BATTERY, DRY

BATTERY - 12 volt, heavy duty (North America)

1шт.

2

K307815

BRACKET

- support, front-mounted battery

1шт.

3

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mmm

4шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , M8

4шт.

5

825-1408

NUT,M8, Cl 8

2шт.

6

K947080

FRAME

CLAMP - battery top

1шт.

7

K306318

BOLT

STUD - clamp, M8 x 250 mm, standard battery

2шт.

7

K306317

BOLT

STUD - clamp, M8 x 300 mm, heavy duty battery

2шт.

8

K626916

WASHER

- special, 5/16 inch (8 mm)

2шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

10

K651745

NUT

- wing, M8

2шт.

11

K307968

BATTERY BOX

BRACKET - support, side-mounted battery (Not vegetable special)

1шт.

12

K308501

COVER

- side-mounted battery

1шт.

13

K653155

GROMMET

- cover

3шт.

14

K38632

SPRING

CLIP

3шт.

15

K603304

SCREW

BOLT - hex, 5/8 x 1-1/4 inch NC

4шт.

16

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

18

K601213

BOLT

- 5/8 UNC x 3-1/4 inch (For vegetable special)

1шт.

19

K311628

BRACKET

- support, side-mounted battery (For vegetable special)

1шт.

20

K627194

SPACER

- long, to front extension (For vegetable special)

1шт.

21

K311334

COLLAR

SPACER - short, to front extension (For vegetable special)

2шт.
