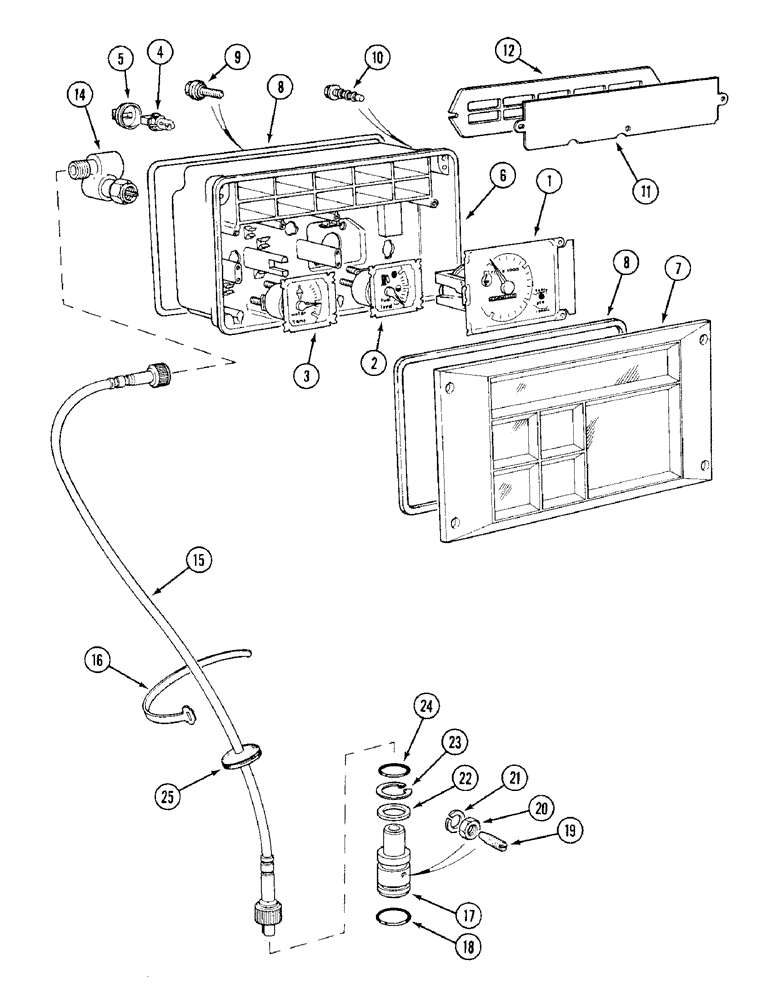

Запчасти Case IH 1394 (4-058) - INSTRUMENT CLUSTER AND TACHOMETER (04) - ELECTRICAL SYSTEMS

K309714

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instrument (AC-Delco), Includes: Ref. 1 - 10

1шт.

1

K965947

TACHOMETER

- engine

1шт.

2

K965950

FUEL GAUGE

GAUGE - fuel

1шт.

3

N13542

GAUGE

- water temperature

1шт.

4

A47125

PEDESTAL

SOCKET - lamp, warning lamps / illumination lamps

9шт.

4a

W10478

LAMP

BULB - lamp, No. 194

9шт.

5

D71344

COVER

BOOT - rubber, illumination lamps

3шт.

6

D71335

CASE ASSY.

HOUSING - cluster, Includes: printed circuit

1шт.

CIRCUIT - printed

1шт.

7

A45007

LENS

COVER - instrument cluster

1шт.

8

D71343

GASKET,4.45mm Thk x 249.68mm ID

- instrument cluster

2шт.

9

K965957

BOLT

SCREW ASSEMBLY - cluster

2шт.

10

A45093

SCREW,Hex Slotted, 12.70"

- special

12шт.

11

K262039

SCREEN

FILTER - warning lamps

1шт.

12

D71342

GASKET,3.05mm Thk

- lens, warning lamp, rubber

1шт.

K309714

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instrument (Iknield), Includes: Ref. 1 - 12

1шт.

1

K262052

TACHOMETER

- engine (Iknield)

1шт.

2

K262055

ELECTRICAL GAUGE

GAUGE - fuel, plug in type

1шт.

3

K262054

ELECTRICAL GAUGE

GAUGE - temperature, temperature

1шт.

4

A47125

PEDESTAL

SOCKET - lamp, warning lamps / illumination lamps

9шт.

4a

W10478

LAMP

BULB - lamp, No. 194

9шт.

6

K262051

CASE ASSY.

CASE - instrument cluster

1шт.

K262056

BOARD, PRINTED CIRCU

CIRCUIT - printed

1шт.

7

K262050

BEZEL

COVER - case

1шт.

8

D71343

GASKET,4.45mm Thk x 249.68mm ID

- instrument cluster

1шт.

9

K262060

SCREW

AND BUSHING -

2шт.

10

K262063

SELF-TAP SCREW

- case

12шт.

11

K262057

LAMP

FILTER - warning lamps

1шт.

12

K262058

GASKET

- warning lamp, rubber

1шт.

14

K201998

ADAPTER

- tachometer drive

1шт.

15

K957380

CABLE

ASSEMBLY - inner and outer (Without cab)

1шт.

15

K957379

CABLE

ASSEMBLY - iinner and outer (With cab)

1шт.

16

K625021

CLIP

STRAP - tube, 5/16 inch, tie

1шт.

17

K210270

HYD CONNECTOR

HOUSING - drive (Replaces K206037)

1шт.

18

K163651

O-RING - 1 inch (25 mm)

2шт.

19

K928254

SCREW,7/16" - 14 x 1 5/16"

- locating, 7/16 inch UNC

1шт.

20

425-147

JAM NUT,Jam, 7/16"-14, G5

- hex, jam, 7/16 inch NC

1шт.

21

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

22

K206134

WASHER

- rubber, 1-1/64 OD x 9/16 ID x 5/32 inch (26 x 14 x 4 mm)

1шт.

23

K210271

CLIP

RING - retaining (Replaces K621723)

1шт.

23

K210271

CLIP

RING - retaining (Use with housing K210270)

1шт.

24

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

25

K627769

GROMMET

- cable to cab, 32 mm

1шт.
