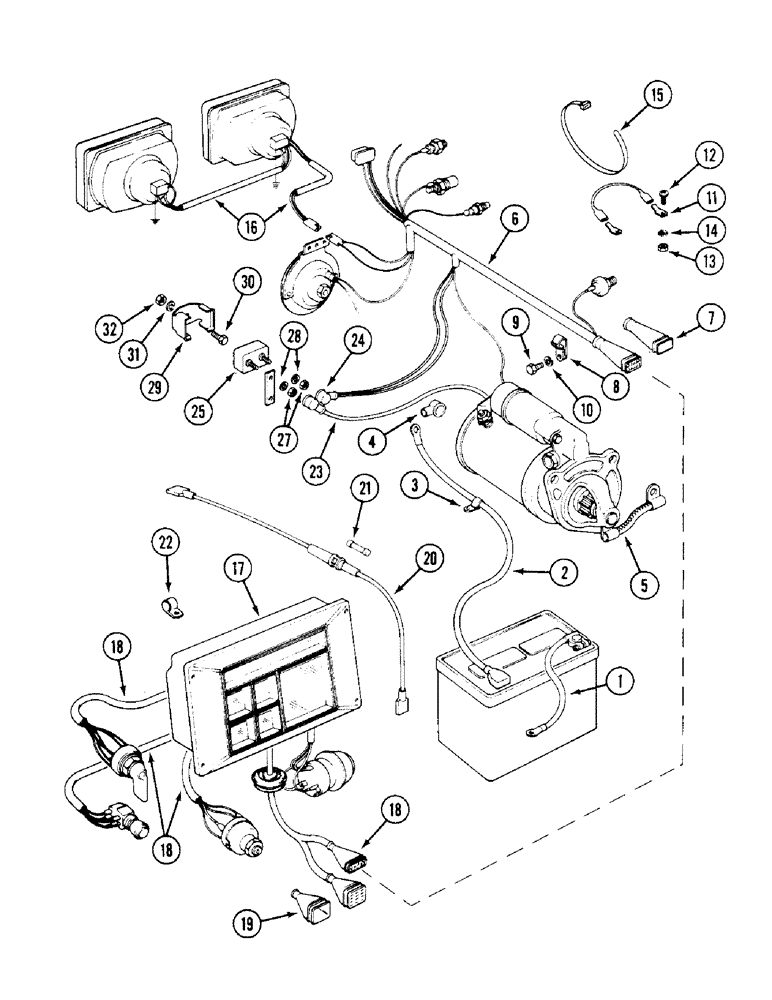

Запчасти Case IH 1394 (4-054) - ELECTRICAL WIRING, CHASSIS - TRACTORS WITH CAB (04) - ELECTRICAL SYSTEMS

1

3404976R1

CABLE

- battery to ground,front mounted battery and Vegetable Special

1шт.

K602846

SCREW,5/16" - 18 x 5/8", Gr S

BOLT - 5/16 UNC x 5/8 inch, cable to bracket, Vegetable Special

1шт.

K11517

WASHER

- lock, 8 mm, cable to bracket, Vegetable Special

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Cable to bracket, Vegetable Special

1шт.

1

K913945

CABLE

- battery to ground, side mounted battery (Not vegetable special)

1шт.

2

K949996

CABLE

- battery to starter, front mounted

1шт.

2

K304228

CABLE

- battery to starter, side-mounted

1шт.

3

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

- P-type, 7/16 inch ID, cable to engine

1шт.

4

K87560

CONTACT HOUSING

COVER - starter terminal

1шт.

5

K947336

CABLE

-, Serial Range: starter-ground

1шт.

6

K307275

HARNESS

- engine auxiliaries, , Hi-lo A/C switch, Includes: Ref. 7

1шт.

7

K951339

GUARD

COVER - harness connector

1шт.

8

K657010

CLIP

- nylon, Serial Range: harness-engine

1шт.

9

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW - 1/4 x 1/2 inch NC

1шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

K925268

BLADE

- ground lead

2шт.

12

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- No. 10 NF x 1/2 inch

1шт.

13

225-14210

NUT,#10-32

1шт.

14

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

15

K621734

CABLE

CLIP - cable

3шт.

16

K304927

HARNESS

- electrical (Inboard headlamps)

1шт.

16

K300750

HARNESS

- outboard headlamps

1шт.

17

REF

INSTRUCTION

CLUSTER - instrument, See Figure 4-58

1шт.

18

K307323

HARNESS

- instrument panel, Includes: Ref. 19

1шт.

19

K951338

BELLOWS

COVER - harness connector

1шт.

20

K304217

FUSE

HOLDER - with lead, Includes: Ref. 21

1шт.

21

3113048R1

FUSE

- 50 ampere

1шт.

22

K621600

CLIP

- panel harness

1шт.

23

K304806

ELECTRICAL WIRE

LEAD - starter to circuit breaker

1шт.

24

K304901

TERMINAL CONNECTOR

COVER - terminals

1шт.

25

K304903

CIRCUIT-BREAKER

CIRCUIT BREAKER - circuit, 30 ampere

2шт.

26

K307473

PLATE

- circuit breaker

1шт.

27

225-14210

NUT,#10-32

4шт.

28

K626340

RING

WASHER - lock, 10

4шт.

29

K304457

CLIP

- circuit breaker mounting

1шт.

30

K652503

SCREW

- M5 x 12 mm

1шт.

31

K651846

WASHER, LOCK

WASHER - lock, 5 mm

1шт.

32

825-1405

NUT,M5, Cl 8

1шт.
