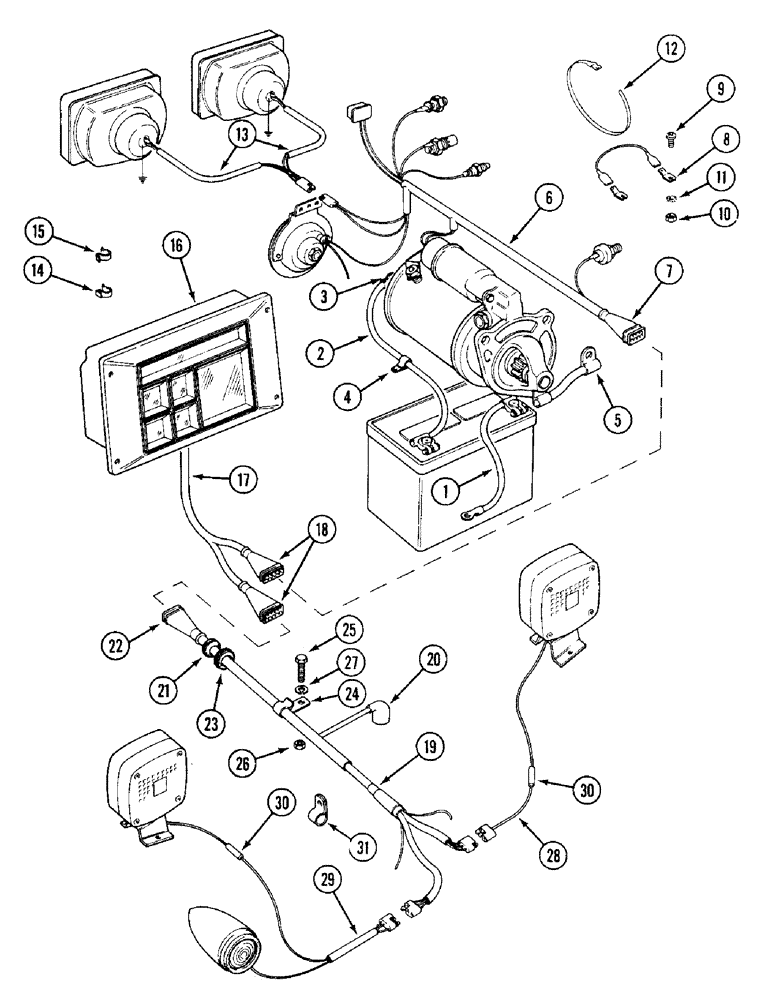

Запчасти Case IH 1394 (4-052) - ELECTRICAL WIRING, TRACTORS WITHOUT CAB, LOW PROFILE SPECIAL (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
3404976R1
CABLE
- battery
1шт.
2
K949996
CABLE
-, Serial Range: battery-starter
1шт.
3
K87560
CONTACT HOUSING
COVER - starter terminal
1шт.
4
515-23111
CLAMP,7/16", Insul, 3/8" Bolt
- P-type, 7/16 inch ID
1шт.
5
K947336
CABLE
-, Serial Range: starter-ground
1шт.
6
K307710
HARNESS
ASSEMBLY - engine accessories, Includes: Ref. 7
1шт.
7
K951339
GUARD
COVER - harness connector
1шт.
8
K925268
BLADE
- ground lead
1шт.
9
K624532
SCREW
- No. 10 x 1/2 inch
1шт.
11
493-41020
LOCK WASHER,Ext Tooth, #10
WASHER, LOCK, Ext Tooth, #10
1шт.
12
K621734
CABLE
CLIP - cable
3шт.
13
K304928
HARNESS
- sealed beam headlamps (Inboard headlamps)
1шт.
14
K625018
CLIP
-, Serial Range: harness-waistrail
2шт.
15
K625019
CLIP
- harness to panel support
2шт.
16
REF
INSTRUCTION
CLUSTER - instrument, See Figure 4-58
1шт.
17
K307696
HARNESS
ASSEMBLY - instrument panel, Includes: Ref. 18
1шт.
18
K951338
BELLOWS
COVER - harness connector
2шт.
19
K307708
HARNESS
ASSEMBLY - side and rear lamps, Includes: Ref. 20 - 23
1шт.
20
K943744
COVER
- stop lamp switch
1шт.
21
K653160
GROMMET
- harness
1шт.
22
K951339
GUARD
COVER - harness connector
1шт.
23
248-1140
GROMMET,3/8" ID x 5/8" Groove Dia
- rubber
1шт.
24
K621741
CLIP
- harness to frame platform
2шт.
25
K652475
SCREW
- M5 x 16 mm
2шт.
26
825-13412
NUT,M12 x 1.25, Cl 8
- cable, M6
2шт.
27
892-11006
LOCK WASHER,M6
WASHER, LOCK, M6
2шт.
28
A165855
HARNESS
- flasher, RH
1шт.
28
A308554
HARNESS - flasher, right-hand (P.I.N. 11138409 and after)
1шт.
29
A165854
HARNESS
- flasher, LH and tail lamp
1шт.
29
K308553
HARNESS
- flasher, LH and tail lamp
1шт.
30
K67916
ELEC CONNECTOR
CONNECTOR - wire (P.I.N. 11138409 and after)
2шт.
30
A30366
CABLE
CONNECTOR - wire
2шт.
31
K621665
CLIP
- switch lead to PTO housing
2шт.
Выбрано товаров: 34
