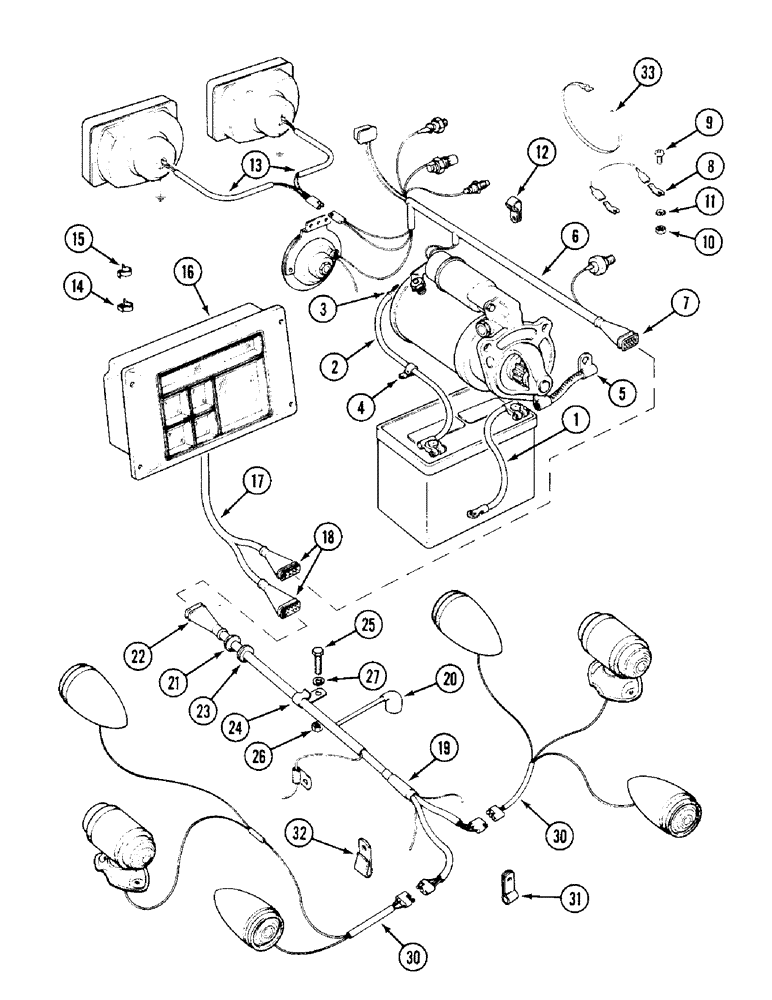

Запчасти Case IH 1394 (4-050) - ELECTRICAL WIRING - TRACTORS WITHOUT CAB, ORCHARD FENDERS - NOT NORTH AMERICA (04) - ELECTRICAL SYSTEMS

1

3404976R1

CABLE

- battery

1шт.

2

K949996

CABLE

-, Serial Range: battery-starter

1шт.

3

K87560

CONTACT HOUSING

COVER - starter terminal

1шт.

4

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

- P-type, 7/16 inch ID

1шт.

5

K947336

CABLE

-, Serial Range: starter-ground

1шт.

6

K307710

HARNESS

ASSEMBLY - engine accessories, Includes: Ref. 7

1шт.

7

K951339

GUARD

COVER - harness connector

1шт.

8

K925268

BLADE

- ground lead

1шт.

9

K624532

SCREW

- N0. 10 x 1/2 inch

1шт.

10

225-14210

NUT,#10-32

1шт.

11

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

12

K621734

CABLE

CLIP - cable

1шт.

13

K304927

HARNESS

- electrical (Inboard headlamps)

1шт.

14

K625018

CLIP

-, Serial Range: harness-waistrail

2шт.

15

K625019

CLIP

- harness to panel support

2шт.

16

REF

INSTRUCTION

CLUSTER - instrument, See Figure 4-58

1шт.

17

K307696

HARNESS

ASSEMBLY - instrument panel, Includes: Ref. 18

1шт.

18

K951338

BELLOWS

COVER - harness connector

2шт.

19

K307708

HARNESS

ASSEMBLY - side and rear lamps, Includes: Ref. 20 - 23

1шт.

20

K943744

COVER

- stop lamp switch

1шт.

21

K653160

GROMMET

- harness

1шт.

22

K951339

GUARD

COVER - harness connector

1шт.

23

248-1140

GROMMET,3/8" ID x 5/8" Groove Dia

- rubber

1шт.

24

K621741

CLIP

- harness to frame platform

2шт.

25

K652475

SCREW

- M5 x 16 mm

2шт.

26

825-13412

NUT,M12 x 1.25, Cl 8

- cable, M6

2шт.

27

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

30

K308828

HARNESS

ASSEMBLY - to right-hand and left-hand fenders

2шт.

31

K621638

CLIP

- lamp wire

4шт.

32

K207988

CLIP

-, Serial Range: harness-fenders

2шт.

33

K621734

CABLE

CLIP - cable

3шт.
