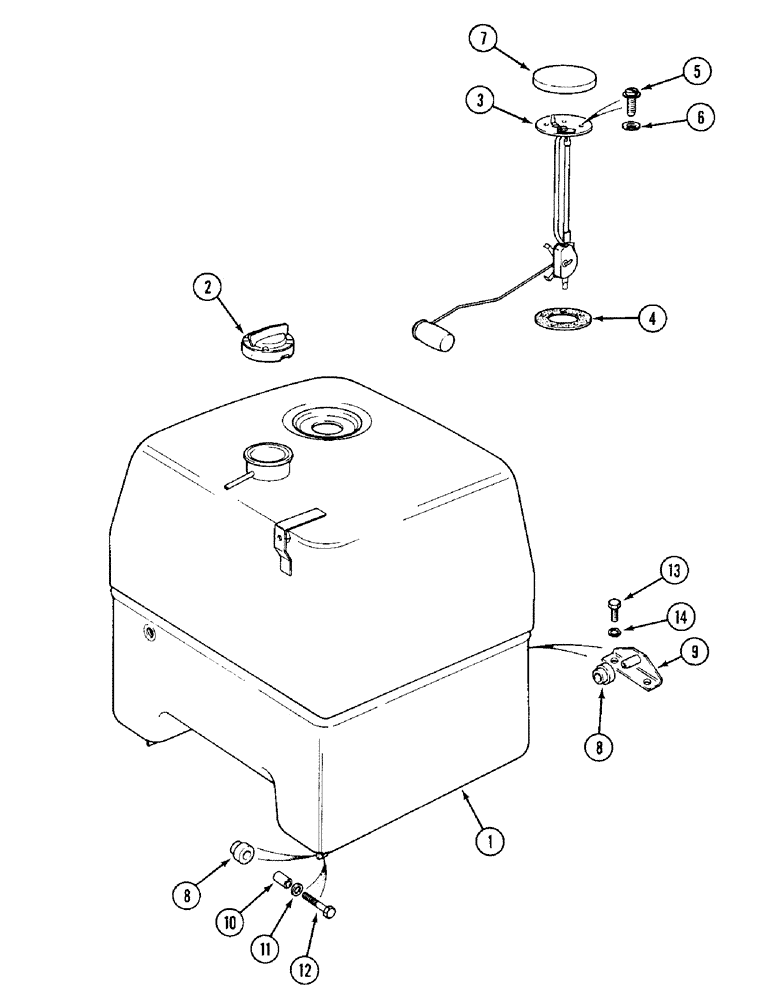

Запчасти Case IH 1394 (3-42) - FUEL TANK AND SUPPORTS, TRACTORS WITHOUT CAB (03) - FUEL SYSTEM

1

K311935

FUEL TANK

TANK - fuel (Replaces K306168), Includes: Ref. 2

1шт.

2

K304590

CAP

- filler

1шт.

3

K262725

TRANSMITTER

SENDING UNIT - fuel gauge

1шт.

4

K946159

GASKET

- tank sending unit

1шт.

5

K614965

SCREW

- No. 10 UNF x 5/8 inch

5шт.

6

K627479

WASHER

- sealing, 3/16 inch

5шт.

7

K304807

COVER

PLUG - tank unit

1шт.

8

K200826

BUSHING,12.7mm ID x 20mm OD x 20.64mm L

- plastic

3шт.

9

K200825

SUPPORT

BRACKET - fuel tank support

1шт.

10

K627323

SPACER

- mounting

2шт.

11

K19472

WASHER

- flat, 3/8 inch (10 mm)

2шт.

12

107-1618

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/8", G8

BOLT - 3/8 UNC X 1-5/8 inch

2шт.

13

K602982

SCREW,3/8" - 16 x 3/4", Gr S

BOLT - 3/8 UNC x 3/4 inch

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.
