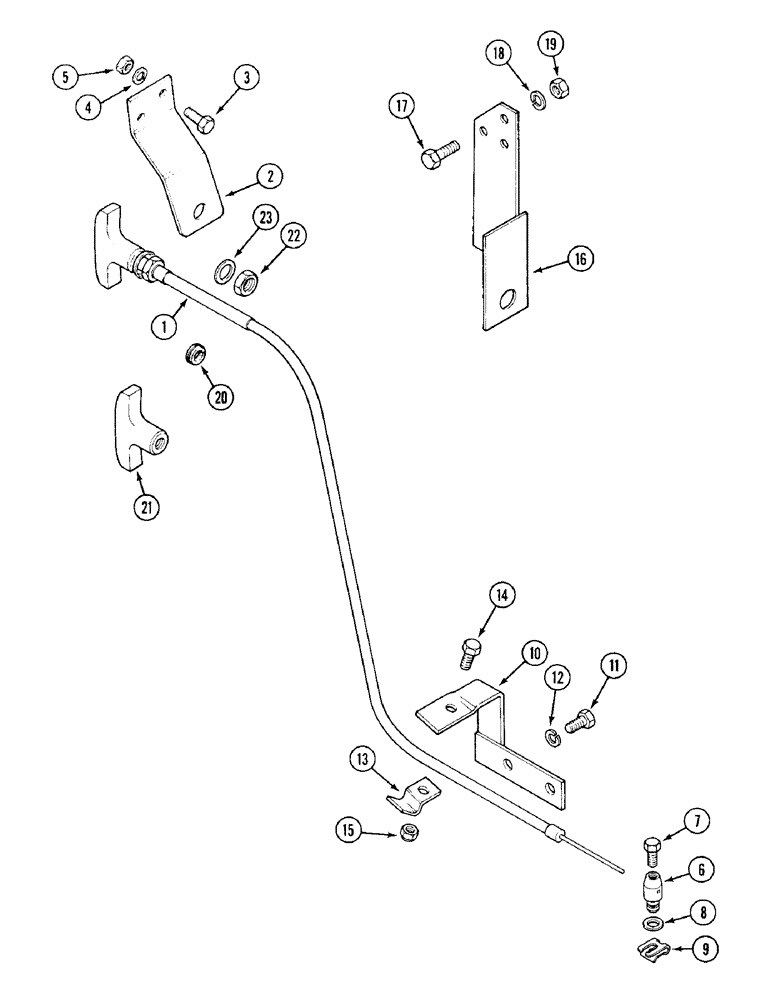

Запчасти Case IH 1394 (3-40) - ENGINE STOP CONTROL (03) - FUEL SYSTEM

1

K311435

CABLE

ASSEMBLY - stop control, 46 inch, from nut (Without cab)

1шт.

1

K311437

CABLE

ASSEMBLY - stop control, 42 inch, from nut (With cab)

1шт.

2

K304633

BRACKET

- mounting (Without cab)

1шт.

3

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

4

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

5

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

6

K205990

TRUNNION

PIN - trunnion

1шт.

7

178-15

SET SCREW,Hex Soc, #10-24 x 3/8"

SCREW - hex., No. 10 x 3/8 inch NC

1шт.

8

K626662

WASHER

- 1/4 inch (6 mm)

1шт.

9

K625039

CLIP

- retaining

1шт.

10

K304437

MOUNTING PARTS

BRACKET - mounting, front

1шт.

11

K612701

SCREW

BOLT - hex, 1/4 NF x 1/2 inch, 1/4 NF x 1/2 inch

1шт.

12

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

2шт.

13

K657014

CABLE

CLAMP - cable

1шт.

14

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

15

K607325

NUT

- hex., self locking, 1/4 inch NC

1шт.

16

K304580

BRACKET

BRACKE T - mounting (With cab)

1шт.

17

K612703

SCREW

BOLT - 1/4 UNF x 3/4 inch

2шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

K617000

NUT

- 1/4 inch UNF

2шт.

20

K627723

GROMMET

- cable to cab, 5/8 inch (16 mm), cable

1шт.

21

REF

INSTRUCTION

HANDLE - stop control (Order K311435 or K311437)

1шт.

22

825-13412

NUT,M12 x 1.25, Cl 8

- cable, M12

1шт.

23

K626686

WASHER

- flat, 1/2 inch (13 mm)

1шт.
