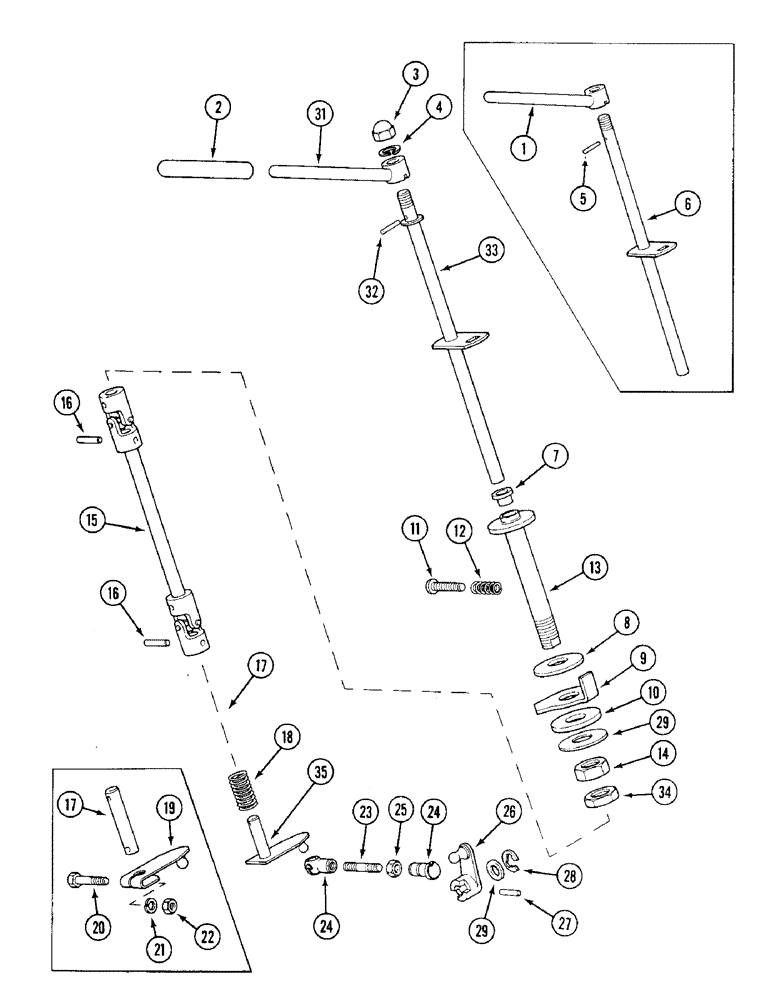

Запчасти Case IH 1394 (3-38) - THROTTLE HAND CONTROL, TRACTORS WITH CAB (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
K204710
LEVER ASSY.
LEVER - hand (Prior to P.I.N. 11500001)
1шт.
2
K307675
SLEEVE
- hand lever
1шт.
3
K659326
NUT
- domed, M10
1шт.
4
892-11010
LOCK WASHER,M10
1шт.
5
K16570
PIN
- retaining, 1/8 x 3/4 inch (Prior to P.I.N. 11500001)
1шт.
6
K307413
ROD
- hand lever (Prior to P.I.N. 11500001)
1шт.
7
K307448
GUIDE
BUSHING - plastic, 10 mm
1шт.
8
K626740
WASHER
- Belleville, 5/8 inch
10шт.
9
K204709
SHIM
PLATE - adjusting
1шт.
10
K204708
DISC
- friction
2шт.
11
K605613
SCREW
- lever stop, 1/4 UNC x 1-5/8 inch
1шт.
12
K625232
SPRING
- stop screw
1шт.
13
K307446
TUBE
1шт.
14
3402651R1
NUT
- hex, 16 mm
1шт.
15
K310083
SHAFT ASSY.
ROD - with universal joints (Replaces K307407)
1шт.
16
K657420
ROLL PIN
PIN - roll, 4 x 20 mm
2шт.
17
K311383
BRACKET
ROD ASSEMBLY (Replaces K307409 and K307406)
1шт.
18
K24887
SPRING
- rod
1шт.
19
K311383
BRACKET
ROD ASSEMBLY - (Replaces K307409 and K307406)
1шт.
20
K650631
BOLT
- M6 x 35 mm
1шт.
21
892-11006
LOCK WASHER,M6
WASHER, LOCK, M6
1шт.
22
825-13412
NUT,M12 x 1.25, Cl 8
- cable, M12
1шт.
23
K203147
ROD,THREADED
ROD - lever to cross shaft
1шт.
24
K621903
BALL JOINT
SOCKET END - 1/4 inch UNF
2шт.
25
425-154
JAM NUT,Jam, 1/4"-28, G5
- lock, 1/4 inch UNF
2шт.
26
K928177
LEVER
- cross shaft
1шт.
27
K19472
WASHER
- flat, 3/8 inch (10 mm)
1шт.
28
K621587
RING, SNAP
RING - retaining, 3/8 inch (10 mm) external
1шт.
29
135-735
GROOVED PIN,5/32" x 3/4", Type E
Pin, Grooved, , lever to cross shaft 5/32" x 3/4", Type E
1шт.
31
K310035
BRACKET
LEVER - hand, hand (P.I.N. 11500001 and after)
1шт.
32
135-735
GROOVED PIN,5/32" x 3/4", Type E
Pin, Grooved, , hand lever (P.I.N. 11500001 and after) 5/32" x 3/4", Type E
1шт.
33
K310039
ROD
- hand lever (P.I.N. 11500001 and after)
1шт.
34
K651530
NUT
- hex, 16 mm
1шт.
35
K311383
BRACKET
ROD ASSEMBLY
1шт.
Выбрано товаров: 34
