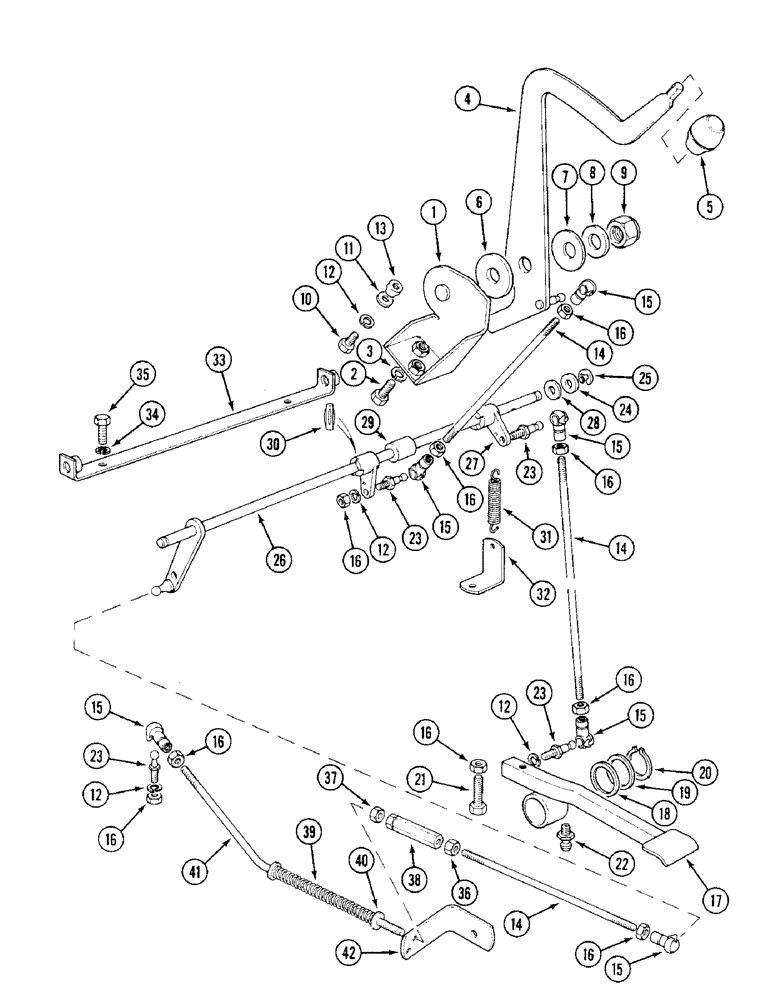

Запчасти Case IH 1394 (3-34) - ENGINE THROTTLE CONTROLS, TRACTORS WITHOUT CAB (03) - FUEL SYSTEM

1

K300223

SUPPORT

BRACKET - throttle lever support

1шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

3

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

4

K201285

LEVER

- hand, speed control

1шт.

5

K207512

KNOB

- lever

1шт.

6

K950724

DISC

- friction

1шт.

7

K626740

WASHER

- Belleville, 5/8 inch

1шт.

8

K626885

WASHER

- 5/8 inch (8 mm)

1шт.

9

131-377

LOCK NUT,5/8"-11, GC

NUT - lock, ball joint, 5/8 inch UNC

1шт.

10

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW - pan head Phillips, 1/4 x 1/2 inch

1шт.

11

K626662

WASHER

- 1/4 inch (6 mm)

1шт.

12

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

1шт.

13

K943634

NUT

- 1/4 inch UNC, special

1шт.

14

K204737

ROD

- 1/4 UNF X 10-1/8 inch

3шт.

15

K621903

BALL JOINT

SOCKET END - 1/4 inch UNF

6шт.

16

425-154

JAM NUT,Jam, 1/4"-28, G5

- lock, 1/4 inch UNF

9шт.

17

K202010

PEDAL

- throttle

1шт.

18

K627466

WASHER

- 1 inch (25 mm)

1шт.

19

K626200

SHIM,.002" Thk

Washer (1" ID) (25 x 0.051 mm) .002" Thk

1шт.

20

K11128

CIRCLIP

RING - snap, 1 inch (25 mm) OD

1шт.

21

K610252

BOLT

- 1/4 inch UNF

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

23

K621904

BALL JOINT

PIVOT END - ball

4шт.

24

K626267

SHIM,.030" Thk

Washer 3/8" ID (10mm ID x 0.76mm OD) .030" Thk

1шт.

25

K621587

RING, SNAP

RING - retaining, 3/8 inch (10 mm) external

1шт.

26

K202017

SHAFT

- cross, control (Synchromesh)

1шт.

26

K207065

SHAFT

- cross (Power shift)

1шт.

27

K928178

LEVER

- cross shaft, hand and foot throttle

2шт.

28

K19472

WASHER

- flat, 3/8 inch (10 mm)

3шт.

29

K627036

BUSHING

SPACER - 3/8 inch (10 mm) ID

1шт.

30

135-735

GROOVED PIN,5/32" x 3/4", Type E

Pin, Grooved, 5/32" x 3/4", Type E

2шт.

31

K624938

SPRING

- return

1шт.

32

K202016

BRACKET

ANCHOR - spring

1шт.

33

K201284

BRACKET

- cross shaft support (Synchromesh)

1шт.

33

K207060

SUPPORT

BRACKET - cross shaft support (Power shift)

1шт.

34

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

35

K602803

BOLT

- 5/16 UNC x 3/4 inch

2шт.

36

K616980

NUT

- hex., 1/4 inch UNF

1шт.

37

K617593

NUT

- 1/4 inch UNF, left-hand thread

1шт.

38

K949065

SLEEVE

- adjusting, 1/4 inch UNF

1шт.

39

K625260

SPRING

- return

1шт.

40

K626662

WASHER

- 1/4 inch (6 mm)

1шт.

41

K201287

ROD

-, Serial Range: sleeve-pump

1шт.

42

K301329

BRACKET

- guide

1шт.
