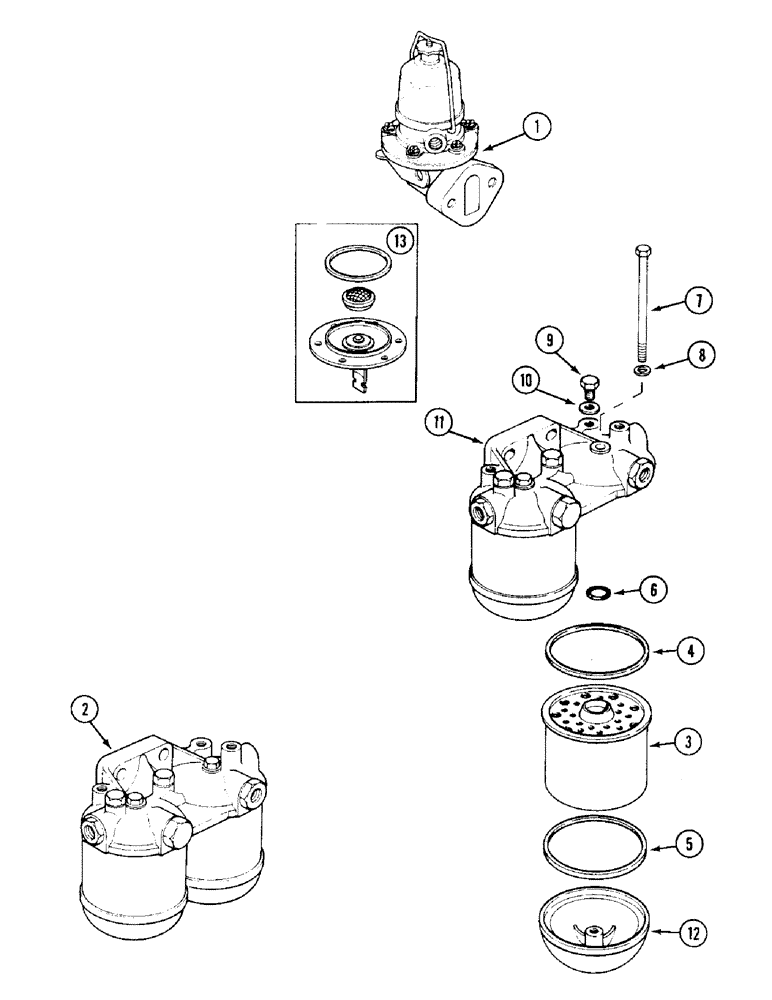

Запчасти Case IH 1394 (3-32) - FUEL PUMP AND FILTER ASSEMBLIES (03) - FUEL SYSTEM

1

K311939

FEED PUMP

PUMP ASSEMBLY - fuel (AC-Delco E/FP63154B)

1шт.

2

K906708

FILTER

ASSEMBLY - fuel (APF 62900), Includes: Ref. 3 - 11

1шт.

3

3044506R93

FILTER, FUEL

ELEMENT - filter, Includes: Ref. 4 - 7

2шт.

4

3123890R1

SEALING WASHER

RING - sealing, upper

1шт.

5

3123889R1

SEALING WASHER

- sealing, lower

1шт.

6

K960937

O-RING

- 1/2 inch (13 mm) ID

1шт.

7

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

- hex, 5/16 NC x 4-3/4 inch

2шт.

8

K963409

RING

WASHER - sealing, 5/16 inch (8 mm)

2шт.

9

K965010

PLUG

- vent, 5/16 inch UNC

1шт.

10

K626653

WASHER,8.33mm ID x 14.29mm OD x 2.38mm Thk

- sealing, 5/16 inch (8 mm)

1шт.

11

K906708

FILTER

HEAD - filter

1шт.

12

K962264

COVER

BASE - filter

2шт.

13

K262265

KIT

- repair, fuel lift pump Ac. No. 93151242

1шт.
