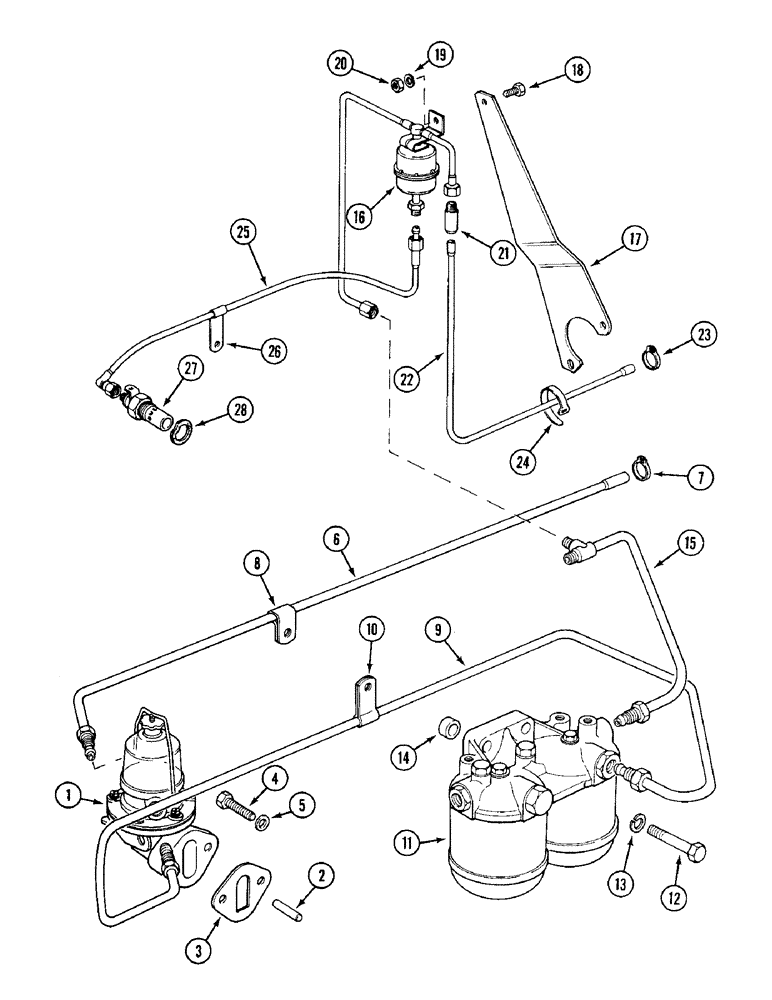

Запчасти Case IH 1394 (3-30) - FUEL FEED PUMP, FILTERS AND TUBES (03) - FUEL SYSTEM

1

K311939

FEED PUMP

PUMP ASSEMBLY - fuel, See Figure 3-32

1шт.

2

K911928

PUSH ROD,9.51mm OD x 35.99mm L

- push, fuel pump

1шт.

3

K902136

GASKET

- pump mounting

1шт.

4

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

4

K19222

BOLT

- 5/16 BSF x 1 inch, for mounting pump

1шт.

5

K626653

WASHER,8.33mm ID x 14.29mm OD x 2.38mm Thk

- sealing, 5/16 inch (8 mm)

2шт.

6

K203677

FUEL TUBE,0.312" OD x 43, 2" L

TUBE - tank to fuel pump, 50 inch, threaded one end (With cab)

1шт.

6

K203667

PIPE,0.312" OD x 20, 2" L

TUBE - tank to fuel pump, 20 inch, threaded both ends (Without cab)

1шт.

6

K203830

PIPE,0.312" OD x 12, 2" L

TUBE - fuel, tank to fuel pump,12 inch, threaded both ends (With cab)

1шт.

6

K205425

FUEL TUBE,0.18" ID x 0.187" OD x 11" L

TUBE - fuel, tank to fuel pump,11 inch, threaded one end (Without cab)

1шт.

7

K656901

CLIP

CLAMP - breather tube, Serial Range: tube-tank

1шт.

8

K628362

CLIP

- clutch housing bolt

1шт.

9

K944999

FUEL TUBE,0.25" OD x 14.531, 6.562" L

TUBE - fuel, pump to filter

1шт.

10

K621603

CLIP

- tube to manifold stud

1шт.

11

K906708

FILTER

ASSEMBLY - fuel, See Figure 3-32

1шт.

12

K600406

BOLT

- special, 3/8 UNC x 1-3/4 inch

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

A76093

BUSHING

FSPACER - filter

2шт.

15

K204246

FUEL TUBE,0.25" OD

TUBE - fuel, filter to leak-off

1шт.

16

K205395

TANK

RESERVOIR ASSEMBLY - fuel, with tube (With cab)

1шт.

16

K205391

RESERVOIR

ASSEMBLY - fuel, with tube (Without cab)

1шт.

17

K307876

BRACKET

- reservoir support (With cab)

1шт.

18

K612802

SCREW

BOLT - 5/16 UNF x 5/8 inch

1шт.

19

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

20

K617001

NUT

- 5/16 inch UNF

1шт.

21

K306934

FITTING

RESTRICTOR - fuel return (With cab)

1шт.

22

K207549

PIPE,0.395" OD x 40" L

TUBE - fuel return (With cab)

1шт.

23

L100659

CLIP

- self adhesive

1шт.

24

702093C1

CABLE TIE

STRAP - tie, tubes

2шт.

25

K207569

LINE,0.187" OD x 16" L

TUBE - fuel, reservoir to Thermostart (With cab)

1шт.

25

K205367

HOSE,0.187" OD x 33.5" L

TUBE - fuel, reservoir to Thermostart (Without cab)

1шт.

26

K621610

CLIP

- manifold

1шт.

27

K928523

GLOW PLUG

THERMOSTART - fuel (CAV 1854102)

1шт.

27

K262495

THERMOSTAT

THERMOSTART - fuel, , hand starting tractors

1шт.

28

K626957

WASHER

- sealing 7/8 inch (22 mm)

1шт.
