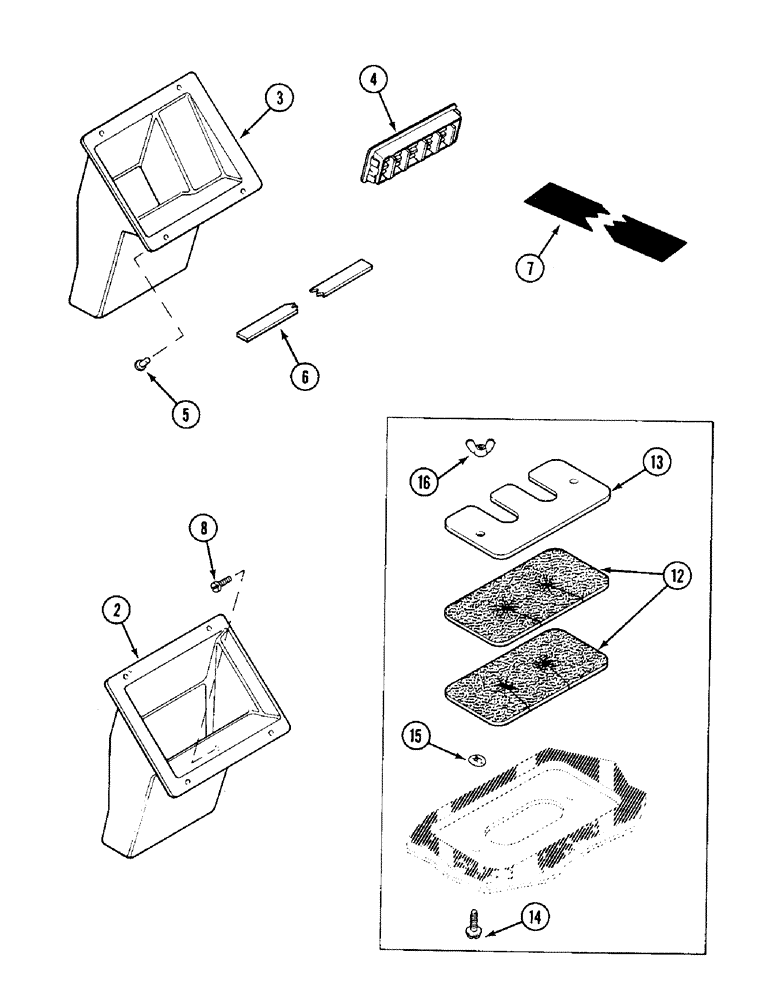

Запчасти Case IH 1394 (9-490) - VENTILATION CONSOLE (09) - CHASSIS/ATTACHMENTS

2

A176279

BLEEDER VALVE

VENT - lower right

1шт.

3

A176281

BLEEDER VALVE

VENT - lower left

1шт.

4

F64596

GRILLE

LOUVER - vent

2шт.

5

K656212

SCREW

- no. 7 x 1/2 inch

4шт.

6

A176549

FOAM

TAPE - foam

8шт.

7

A176550

DECAL

- sealing

1шт.

8

187-322

SELF-TAP SCREW,Slotted Pan Hd, #8 x 5/8"

SCREW - pan head, no., 8-18 x 5/8 inch

1шт.

12

A165354

SEAL

- lower rear window, access kit, North America only

2шт.

13

A165352

PLATE

- lower rear window, access kit, North America only

1шт.

14

470-11014

SCREW,Slotted Pan Hd, #10-24 x 7/8"

- machine, pan head slotted, No. 10 NC x 7/8 inch, rear access kit, North America only

2шт.

15

A165523

FASTENER

- screw retaining, rear access kit, North America only

2шт.

16

129-500

WING NUT,#10-32

NUT - wing, no., 10-24, rear access kit, North America only

2шт.
