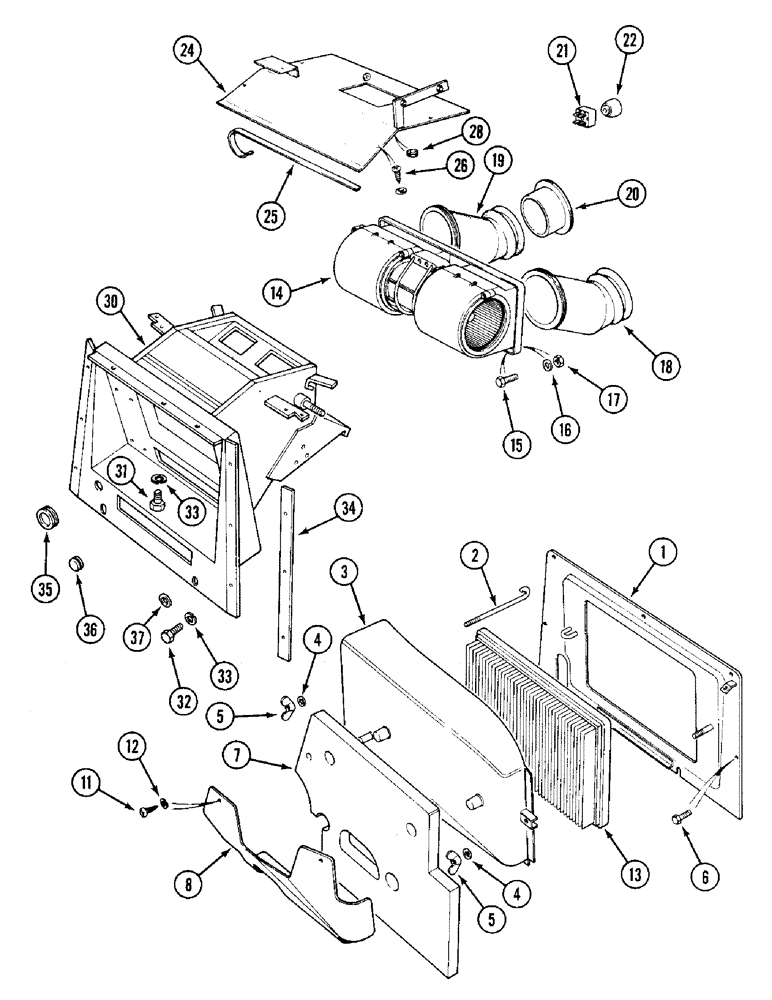

Запчасти Case IH 1394 (9-484) - CAB AIR FILTER AND HEATER FAN (09) - CHASSIS/ATTACHMENTS

1

K307424

GUARD

PLATE - support, filter

1шт.

2

K307547

BOLT

CLAMP - filter

1шт.

3

K307502

BOX

- filter

1шт.

4

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

5

E44806

NUT

- wing, M6

2шт.

6

K653344

SCREW

- M6 x 16 mm

7шт.

7

K307867

FOAM

SEAL -

1шт.

8

K307859

RETAINER

PLATE - seal retaining

1шт.

11

K656110

SCREW

- self-tapping

4шт.

12

K626310

WASHER

- lock, 3/16 inch

4шт.

13

K303737

CAB FILTER

ELEMENT - filter

1шт.

14

K303739

HEATER

FAN AND MOTOR ASSEMBLY - cab

1шт.

15

K650603

BOLT

SCREW - M4 x 12 mm

7шт.

16

K651775

WASHER

- 4 mm

7шт.

17

825-1404

NUT,M4, Cl 8

7шт.

18

K303555

FITTING

DUCT - air, left-hand

1шт.

19

K303554

FITTING

DUCT - air, right-hand

1шт.

20

K303740

NOZZLE CAP

NOZZLE - air duct

2шт.

21

K303726

BLOWER SWITCH

SWITCH - heater fan

1шт.

22

K303738

KNOB

- heater switch

1шт.

24

K303182

COVER

- bulkhead

1шт.

25

REF

INSTRUCTION

STRIP - sealing, 8 x 15 mm, order L35799 in meters

1шт.

26

K656212

SCREW

- No. 7 x 1/2 inch, self-tapping

5шт.

27

K651775

WASHER

- 4 mm

5шт.

28

K627754

GROMMET

- 12 mm

1шт.

30

K303494

PANEL

BULKHEAD - cab front

1шт.

31

K650816

SCREW,M8 x 1.25 x 1.25mm, Gr 8.8

- M8 x 16 mm

1шт.

32

K650817

SCREW

- M8 x 25 mm

6шт.

33

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

34

K303345

FOAM

STRIP - sealing, 2 750 mm

1шт.

35

K627724

GROMMET

PLUG - bulkhead, 1-3/16 inch (30 mm)

1шт.

36

K627742

GROMMET

PLUG - bulkhead, 15/32 inch (12 mm)

1шт.

37

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.
