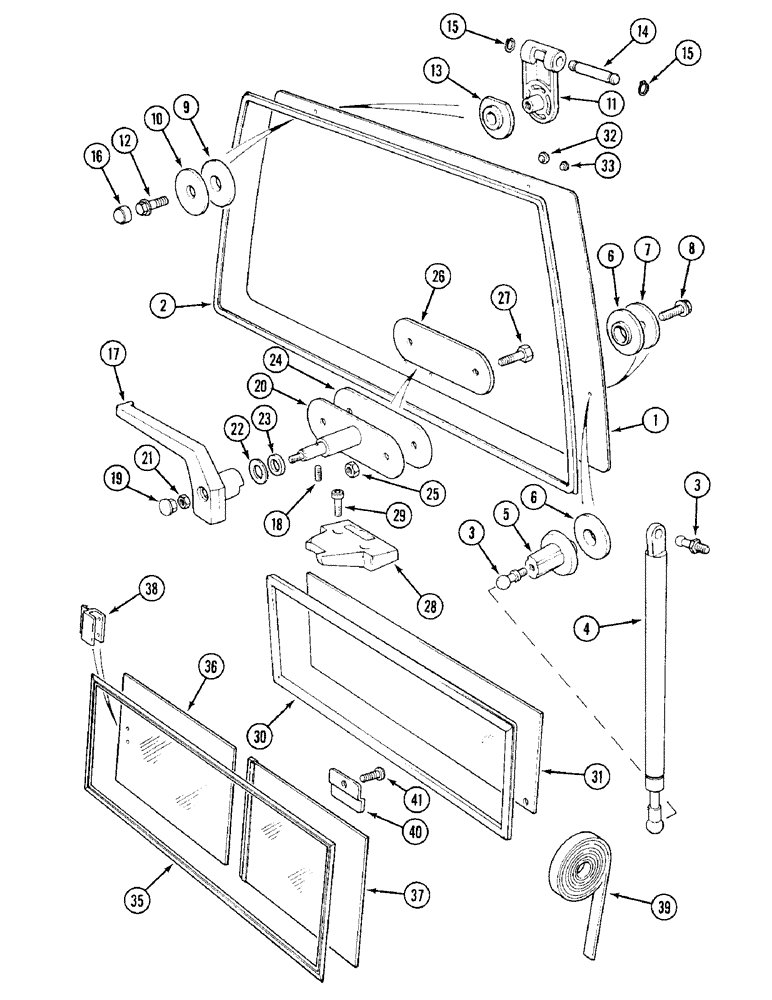

Запчасти Case IH 1394 (9-480) - REAR WINDOWS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K312000

GLASS

- rear window (Replaces K307233 and K311314)

1шт.

2

K303592

SEAL, GLASS

STRIP - sealing

1шт.

3

K303756

BALL STUD,M6 x 1

BALL END - M6

4шт.

4

K303743

GAS STRUT

STRUT - rear window gas

2шт.

5

K303541

BRACKET

-

2шт.

6

K303501

SPACER,12mm ID x 18.5mm OD x 5.5mm L

WASHER - rubber

4шт.

7

K303571

WASHER,6.5mm ID x 36mm OD x 3mm Thk

- 6 mm, special

2шт.

8

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

9

K303501

SPACER,12mm ID x 18.5mm OD x 5.5mm L

WASHER - rubber

2шт.

10

K303571

WASHER,6.5mm ID x 36mm OD x 3mm Thk

- 6 mm, rubber

4шт.

11

K303875

HINGE

2шт.

12

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

13

K303928

GROMMET

WASHER - rubber

2шт.

14

1535323C1

PIN,8mm OD x 78.5mm L

- large

1шт.

16

1535283C1

CIRCLIP

CAP - plastic

6шт.

NSS

NOT SOLD SEPARAT

HANDLE ASSEMBLY - Order components, Includes: Ref. 17 - 23

1шт.

17

194910A1

HANDLE

- rear window

1шт.

18

3125424R1

SCREW

- locating, M4

1шт.

19

1340207C1

PLUG

- plastic

1шт.

20

1340202C1

PLATE

SPINDLE -

1шт.

21

K652106

LOCK NUT

- M6

1шт.

22

406579R1

WASHER

- special

1шт.

23

1340206C1

RUBBER BUSHING

BUSHING - rubber

1шт.

24

1340208C1

RUBBER PAD

PAD - rubber

2шт.

25

K651474

NUT

- M6, self-locking

2шт.

26

K303508

PLATE

- clamping

1шт.

27

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm

2шт.

28

1340142C1

PLATE

- striker

1шт.

29

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

2шт.

30

K303947

GASKET

FRAME - lower rear window (Fixed)

1шт.

31

K307656

GLASS,CAB

GLASS - llower rear window (Fixed)

1шт.

32

F66090

PLUG

- window

1шт.

33

K210050

PLUG

- rear window

1шт.

35

K303645

WINDOW

ASSEMBLY - rear, sliding, Includes: Ref. 36 - 39

1шт.

36

K303707

GLASS,CAB

GLASS - sliding lower rear window, Includes: Ref. 38

1шт.

37

K303706

WINDOW

GLASS - fixed, lower rear window, Includes: Ref. 38

1шт.

38

K303746

HANDLE

- sliding window

1шт.

39

K965590

SEALING STRIP

- sealing, 6 meter roll

1шт.

40

K303811

WASHER

SCREW - retaining, rear window

4шт.

41

K653339

SCREW,Hex, M5 x 0.8 x 12mm

- M5 x 12 mm

4шт.

F93209

WIPER MOTOR

MOTOR - wiper (Not Shown)

1шт.
