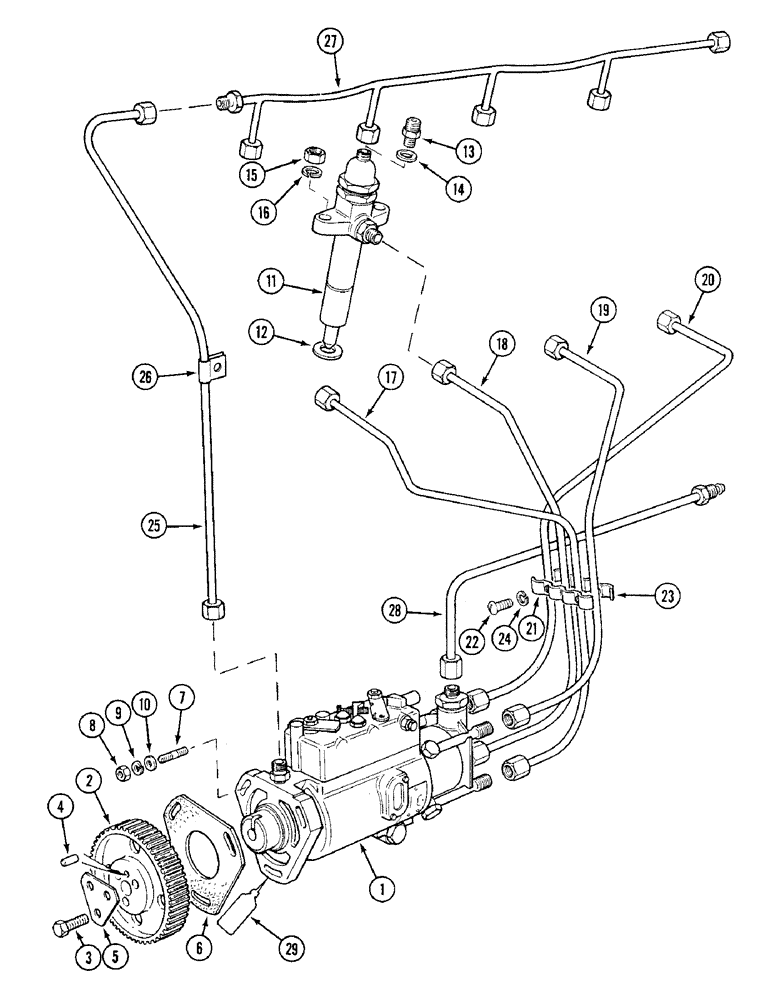

Запчасти Case IH 1394 (3-26) - INJECTION PUMP, INJECTORS AND TUBES (03) - FUEL SYSTEM

1

K957463

PUMP

INJECTION PUMP - fuel (CAV DPA3343F240)

1шт.

2

K949822

GEAR

- pump drive, 68 teeth

1шт.

3

K612804

SCREW

BOLT - set, 5/8 UNF x 7/8 inch

3шт.

4

K25360

PIN

- 1/4 x 9/16 inch

1шт.

5

K914503

LARGE PLATE

WASHER - tab, gear

1шт.

6

K68349

GASKET

- pump mounting, 0.006 to 0.010 inch thick

1шт.

6

K311313

GASKET

- pump to carrier plate, 0.030 inch thick

1шт.

7

K608163

STUD

- 5/16 x 1-1/4 inch UNC

3шт.

8

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

3шт.

9

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

10

K626682

WASHER

- 5/16 inch (8 mm)

3шт.

11

K942175

NOZZLE CAP

INJECTOR ASSEMBLY - fuel, See page 3-28, Includes: Ref. 12 and nozzle

4шт.

K942176

NOZZLE CAP

NOZZLE - injector, CAV, injector

1шт.

12

F62390

WASHER,10mm ID x 21.01mm OD x 2.08mm Thk

- injector (Copper)

1шт.

13

K620460

ADAPTER

- M8 - 1/8 inch BSP, injector leak-off

4шт.

14

K36374

WASHER

- copper, 8 mm

4шт.

15

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

8шт.

16

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

8шт.

17

K918915

PIPE

TUBE - fuel, injection pump to No. 1 cylinder.

1шт.

18

K207322

PIPE

TUBE - fuel, injection pump to No. 2 cylinder.

1шт.

19

K954828

PIPE,18.281" L

TUBE - fuel, injection pump to No. 3 cylinder

1шт.

20

K954829

PIPE,20.75" L

TUBE - fuel, injection pump to No. 4 cylinder.

4шт.

21

K900844

CLAMP

CLIP - injector tubes

1шт.

22

K652474

BOLT

- M6 x 12 mm

2шт.

23

K207929

CLIP

- injector tubes, injector tubes

1шт.

24

K19488

SPRING WASHER

- lock, 3/16 inch

2шт.

25

K203135

PIPE,0.187" OD

TUBE - leak-off, injector pump

1шт.

26

K621610

CLIP

- tube to exhaust manifold stud

1шт.

27

K204248

PIPE,0.187" OD

TUBE - leak-off, injectors

1шт.

28

K918923

PIPE

TUBE - fuel, filter to injection pump

1шт.

29

B17555

LOCTITE

SEALANT - gasket replacement (See your authorized Case dealer)

1шт.
