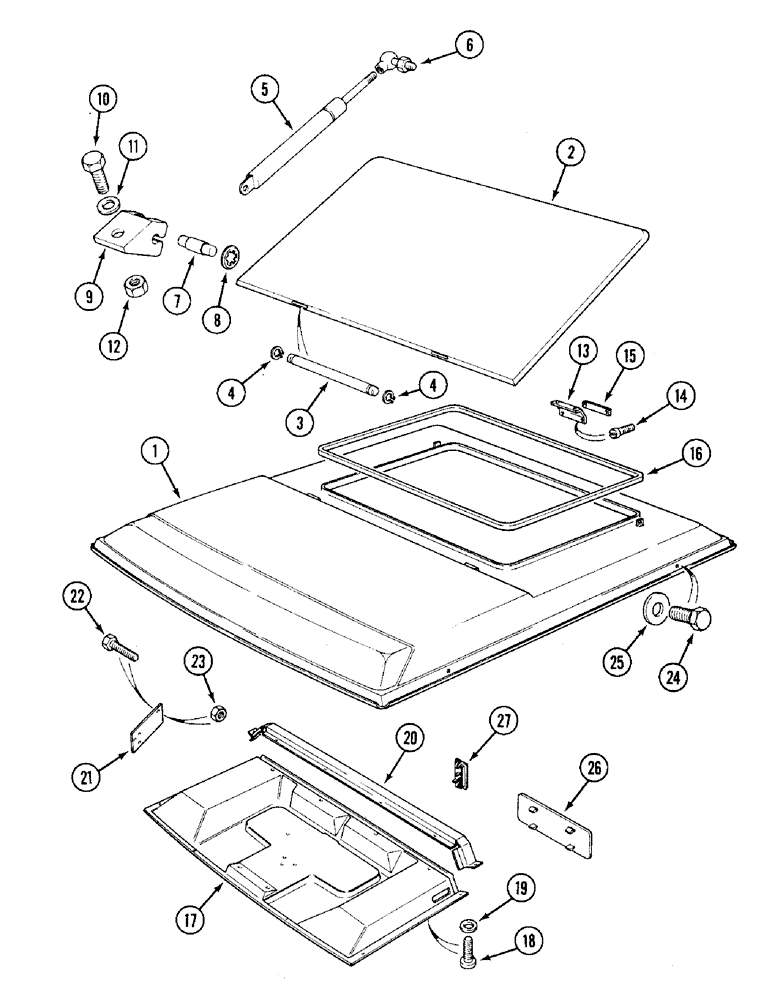

Запчасти Case IH 1394 (9-470) - CAB ROOF, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

K311942

ROOF

- complete, Includes: Ref. 1 - 16

1шт.

1

K303359

ROOF

- outer

1шт.

2

K307651

HATCH

- roof, See Figure 9-472

1шт.

3

3123843R1

PIN

- hinge

2шт.

4

K653507

RING, SNAP

RING - snap, hinge pin

2шт.

5

K303741

GAS STRUT

STRUT - gas, hatch

2шт.

6

K303757

BALL JOINT

- gas strut

2шт.

7

K303882

PIN,6mm OD x 20mm L

- anchor, gas strut

2шт.

8

K657860

RING, SNAP

RING - snap, anchor pin, 6 mm

4шт.

9

K303884

BRACKET

ANCHOR - gas strut

2шт.

10

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

K652106

LOCK NUT

- self-locking, M6

2шт.

13

K307037

PLATE

- striker

1шт.

14

K652743

SCREW,M5 x 12mm

- M5 x 12 mm

2шт.

15

K303557

BRACKET

PLATE - retaining

1шт.

16

RK303878

GASKET

STRIP - sealing, hatch

1шт.

17

K307574

ROOF

- inner

1шт.

18

K653344

SCREW

- M6 x 16 mm

6шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

20

K303566

SUPPORT

PLATE - corner

1шт.

21

K303573

PLATE

- stiffening

1шт.

22

K652505

SCREW,M5 x 20mm

- M5 x 20 mm

1шт.

23

825-1405

NUT,M5, Cl 8

1шт.

24

K652753

SCREW

- M8 x 16 mm

4шт.

25

K303630

BUSHING

WASHER - 8 mm

4шт.

26

K306971

PLATE

- cover

1шт.

27

K307606

PLUG

- switch hole

2шт.
