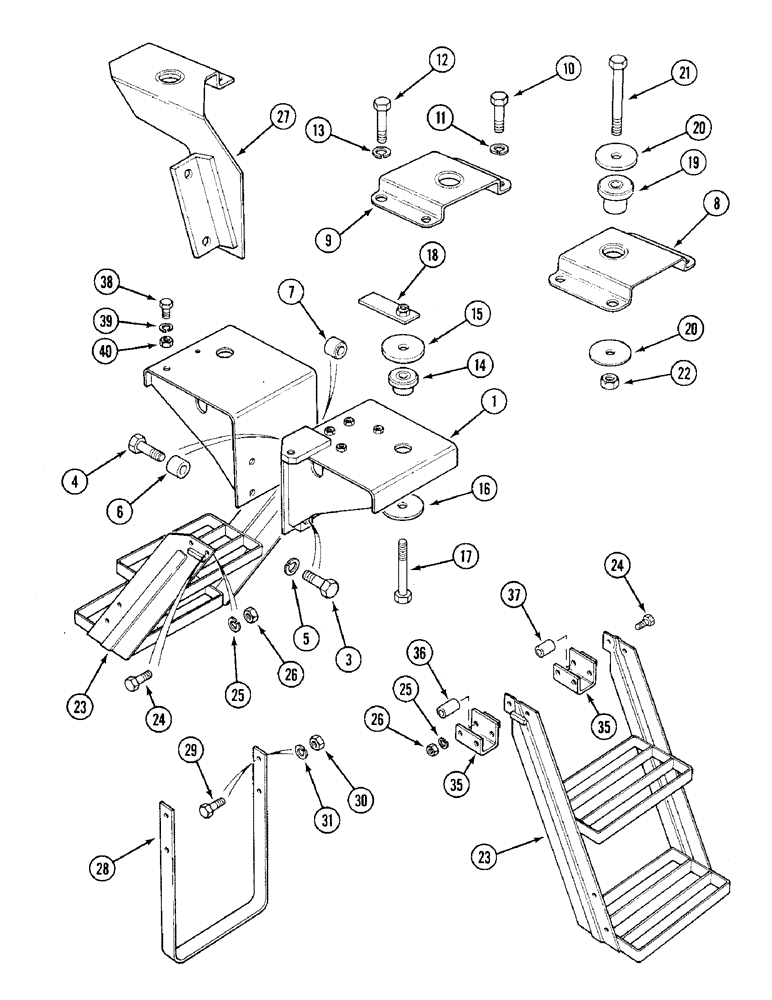

Запчасти Case IH 1394 (9-466) - CAB MOUNTINGS AND STEPS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K207489

CAB

BRACKET - mounting, left-hand front

1шт.

2

K207493

CAB

BRACKET - mounting, right-hand front

1шт.

3

K603307

SCREW

BOLT - 5/8 UNC x 1-5/8 inch

4шт.

4

K603278

SCREW

BOLT - 5/8 UNC x 2 inch

3шт.

4

K603280

SCREW

BOLT - 5/8 UNC x 2-1/4 inch

1шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

K207340

BUSHING

SPACER - spring anchor

1шт.

7

K655811

BUSHING

SPACER - right-hand bracket

4шт.

8

K207495

CAB

BRACKET - mounting, left-hand rear

1шт.

9

K207496

CAB

BRACKET - mounting, right-hand rear

1шт.

10

K603140

SCREW

BOLT - 1/2 UNC x 1-1/8 inch

4шт.

11

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

12

K603307

SCREW

BOLT - 5/8 UNC x 1-5/8 inch

4шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

L46821

SHOCK ABSORBER

BUSHING - rubber, front

2шт.

15

K307877

WASHER

- special, upper

2шт.

16

K309879

WASHER

- special, lower (Replaces A169185)

2шт.

17

K600880

BOLT

- 1/2 UNC x 3 inch

2шт.

18

K207515

NUT

- special, 1/2 inch UNC

2шт.

19

A140221

MOUNTING PARTS

BUSHING - rubber, rear

2шт.

20

A141470

WASHER

- special

4шт.

21

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

- hex, 3/8 NC x 1-7/8 inch

2шт.

22

K607306

NUT

- self-locking, 5/8 inch UNC

2шт.

23

K304444

STEP

- operator (Not North America)

2шт.

23

K307545

STEP

- upper, operator (North America)

1шт.

23

K308022

STEP

- lower, operator (North America)

1шт.

24

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

8шт.

24

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

(Vegetable Special) Hex, M8 x 75, 8.8

8шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

8шт.

26

825-1408

NUT,M8, Cl 8

8шт.

27

K207237

BRACKET - mounting, left-hand rear (High clearance)

1шт.

27

K207235

BRACKET - mounting, right-hand rear (High clearance)

1шт.

28

K304450

EXTENSION

- step (High clearance)

2шт.

29

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm (High clearance)

8шт.

30

825-1408

NUT,M8, Cl 8

(High clearance) M8, Cl 8

8шт.

31

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, (High clearance) M8

8шт.

35

K311636

BRACKET

- spacer, vegetable special

4шт.

36

K627195

SPACER

- front, 38 mmlong, vegetable special

4шт.

37

K627196

- rear, 35 mmlong, vegetable special

4шт.

38

K602982

SCREW,3/8" - 16 x 3/4", Gr S

BOLT - 3/8 UNC x 3/4 inch

1шт.

39

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

40

425-106

NUT,3/8"-16, Cl 5

1шт.
