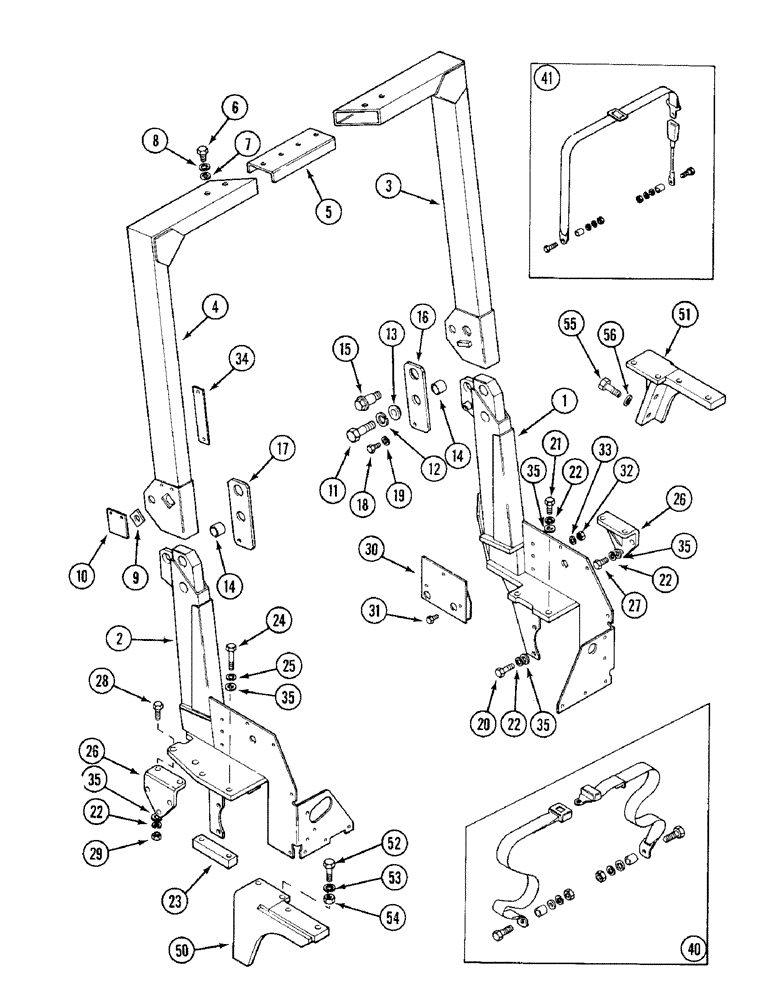

Запчасти Case IH 1394 (9-464) - TWO POST ROLL OVER PROTECTIVE STRUCTURE - FOLDING, NORTH AMERICA ONLY (09) - CHASSIS/ATTACHMENTS

1

K305196

FRAME

ASSEMBLY - lower left

1шт.

2

K305200

FRAME

ASSEMBLY - lower right

1шт.

3

K305255

FRAME

ASSEMBLY - upper left (Replaces K305205)

1шт.

4

K305257

FRAME

ASSEMBLY - upper right (Replaces K305207)

1шт.

5

K305175

CHANNEL

- left to right, upper frames

1шт.

6

K603141

SCREW

BOLT - 1/2 inch UNC x 1-1/4 inch

4шт.

7

K626686

WASHER

- flat, 1/2 inch (13 mm), Includes: Ref. 9 & 10

4шт.

8

K626345

LOCK WASHER

WASHER - lock, 1/2 inch, Includes: Ref. 9 & 10

4шт.

9

K305170

NUT

- special, 1 inch UNF

2шт.

10

K305209

PLATE

- nut retainer

2шт.

11

413-1652

BOLT,Hex, 1" - 8 x 3-1/4", Gr 5

- hex, 1 NC x 3-1/4 inch

2шт.

12

492-11100

LOCK WASHER,1"

1"

2шт.

13

K305218

BUSHING

COLLAR - special

2шт.

14

K305221

BUSHING

SPACER - lower frame assembly

2шт.

15

K305178

BOLT

- special locking

2шт.

16

K305219

PLATE

- stop, left-hand

1шт.

17

K305220

PLATE

- stop, right-hand

1шт.

18

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

2шт.

19

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

20

K600885

BOLT

- 1/2 UNC x 2 inch

4шт.

21

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

22

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

10шт.

23

K305166

PLATE

SPACER -, Serial Range: frame-reduction

2шт.

24

426-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

- hex, 5/8 NC x 3 inch, grade 8

4шт.

25

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

26

K305180

BRACKET

-, Serial Range: frame-reduction

2шт.

27

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

28

K600904

BOLT

- 1/2 inch UNC x 1-3/4 inch

4шт.

29

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

30

K311173

BRACKET

- manual box

1шт.

31

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm (Standard rear fenders)

2шт.

31

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm (Low profile fenders)

1шт.

32

825-1408

NUT,M8, Cl 8

2шт.

33

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

34

K311297

SPACER

- rubber, Serial Range: frame-fender

2шт.

35

K626686

WASHER

- flat, 1/2 inch (13 mm)

18шт.

36

K11597

SCREW - special

2шт.

40

REF

INSTRUCTION

BELT - seat safety, 2 inch wide, See Figure 9-440

1шт.

41

REF

INSTRUCTION

BELT - seat safety, 2 inch wide, See Figure 9-440

1шт.

50

K305232

BRACKET

- frame to reduction, right-hand, vegetable special

1шт.

51

K305231

BRACKET

- frame to reduction, left-hand, vegetable special

1шт.

52

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

53

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

54

425-1010

NUT,5/8"-11, G5

4шт.

55

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

8шт.

56

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

A185862

ROOF

CANOPY ASSEMBLY - (Not illustrated), Includes: canopy and brackets

1шт.

A187055

ROOF

CANOPY - Top, R.O.P.S.

1шт.

A187056

BRACKET

- right hand

1шт.

A187057

BRACKET

- left hand

1шт.
