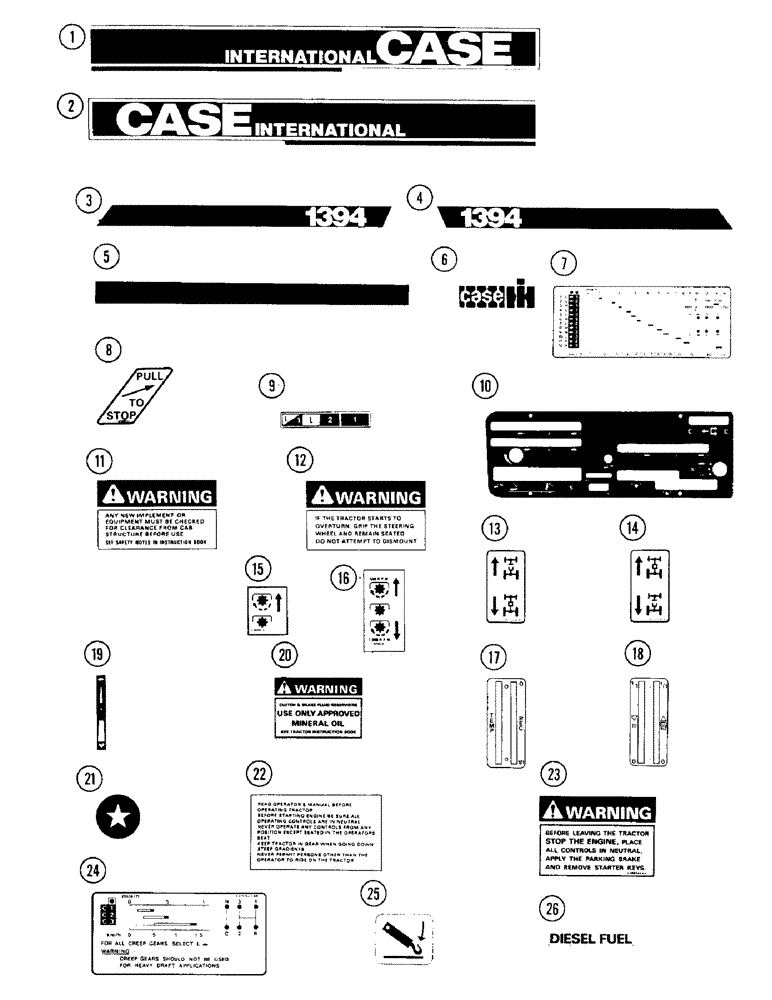

Запчасти Case IH 1394 (9-458) - DECALS, TRACTORS WITH CAB, P.I.N. 11503201 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

K311406

DECAL

- waistrail, right-hand

1шт.

2

K311407

DECAL

- waistrail, left-hand

1шт.

3

K311412

DECAL

- fender, right-hand

1шт.

4

K311413

DECAL

- fender, left-hand

1шт.

5

K307627

DECAL

- front grille frame

1шт.

6

A181538

EMBLEM CASE/IH

DECAL - CASE IH mark, cab pillar

2шт.

7

K307614

DECAL

- travel speed chart (Synchromesh) (Prior to P.I.N. 11503001)

1шт.

7

K307616

DECAL

- travel speed chart (Power shift) (Prior to P.I.N. 11503001)

1шт.

7

K330098

DECAL

- travel speed chart (Synchromesh) (P.I.N. 11503001 and after)

1шт.

7

K330100

DECAL

- travel speed chart (Power shift) (P.I.N. 11503001 and after)

1шт.

7

K330231

DECAL

- travel speed chart (Synchromesh) Vegetable special

1шт.

8

K300895

DECAL

- engine stop control (Not North America)

1шт.

8

K307961

DECAL

- engine stop control (North America)

1шт.

9

K306923

DECAL

- three-way valve

1шт.

10

K307907

DECAL

- operator console, reversible shaft PTO, with select lock

1шт.

10

K307906

DECAL

- operator console, multi-speed PTO, with select lock, (Not North America)

1шт.

10

K307908

DECAL

- operator console (North America)

1шт.

10

K311549

DECAL

- operator console, reversible shaft PTO without select lock

1шт.

10

K311550

DECAL

- operator console, multi speed PTO without select lock

1шт.

11

K952971

DECAL

- implement warning

1шт.

12

K953599

PRODUCT GRAPHIC

DECAL - roll-over warning

1шт.

13

K302305

DECAL

- MFD control (Synchromesh)

1шт.

14

K302304

DECAL

- MFD control (Power shift)

1шт.

15

K952561

DECAL

- selector lever, reversible shaft PTO

1шт.

16

K954771

DECAL

- selector lever, mutli-speed PTO

1шт.

17

K303586

DECAL

- heater control, left-hand

1шт.

18

K303585

DECAL

- heater control, right-hand

1шт.

19

K205612

DECAL

- engine speed control

1шт.

20

K203756

DECAL

- brake and clutch fluid

1шт.

21

K207298

DECAL

- power shift selector lever

1шт.

22

K952686

DECAL

- operator warning (North America)

1шт.

22

K952685

DECAL

- operator warning (North America)

1шт.

23

K306783

DECAL

- operator warning

1шт.

24

K310162

DECAL

- travel speed chart (Creeper gears)

1шт.

24

K311327

DECAL

- travel speed chart (Creeper gears) Vegetable special

1шт.

25

K308067

DECAL

- pick-up hitch control

1шт.

25

K309302

DECAL

- diesel fuel

1шт.
