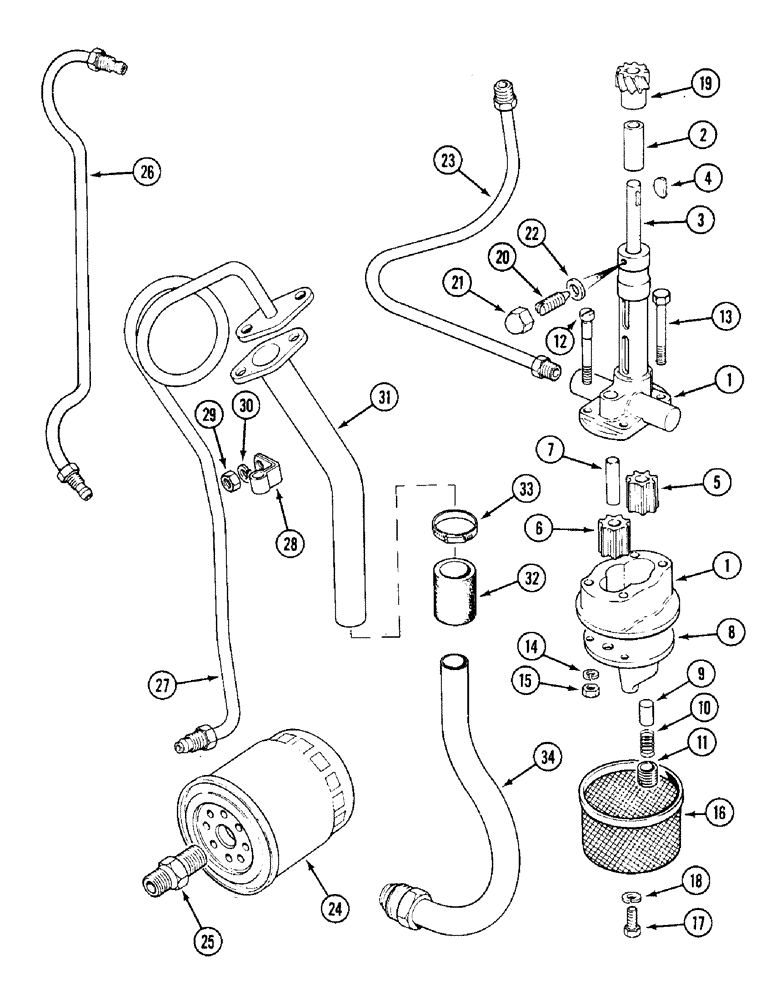

Запчасти Case IH 1394 (2-24) - OIL PUMP, FILTER AND TUBES (02) - ENGINE

K957468

PUMP

ASSEMBLY - oil, Includes: Ref. 1 - 19

1шт.

1

K261928

SUPPORT

BRACKET AND GEAR HOUSING, Includes: Ref. 2 & 3

1шт.

2

K30016

BUSHING

- bracket

1шт.

3

K207982

SPINDLE

- driving, 13-1/2 inch (343 mm)

1шт.

4

K19604

KEY

- Woodruff No. 405

2шт.

5

K928681

ROTOR

- driving

1шт.

6

K928680

ROTOR

- driven

1шт.

7

A75102

PIN,12.45mm OD x 50.8mm L

- clutch reaction plate, 2 inch

1шт.

K953815

VALVE

ASSEMBLY - relief, Includes: Ref. 8 - 11

1шт.

8

K953009

COVER

- flat plunger seat

1шт.

9

K953008

PLUNGER

- flat seat

1шт.

10

K12961

SPRING

- relief valve

1шт.

11

K953010

SCREW,3/8" x 9/16"

- adjusting

1шт.

12

K928682

BOLT

- 1/4 UNC x 2-5/16 inch

2шт.

13

K600013

BOLT

- 1/4 UNC x 2-3/8 inch

2шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

K607000

NUT

- 1/4 inch UNC

4шт.

16

K12013

FILTER

SCREEN - silter

1шт.

17

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

K902051

GEAR

PINION - spirol

1шт.

20

K928254

SCREW,7/16" - 14 x 1 5/16"

- locating, 7/16 inch UNC

1шт.

21

K607516

NUT

- capped, 7/16 inch UNC

1шт.

22

K14674

WASHER

- copper, 7/16 inch (11 mm)

1шт.

23

K904180

PIPE

TUBE - oil, pump to cylinder block

1шт.

24

K200037

FILTER

- oil

1шт.

25

K200007

FITTING

CONNECTOR - oil filter

1шт.

26

K902765

PIPE

TUBE - oil, block to cylinder head

1шт.

27

K207508

HYD TUBE

TUBE - oil, Serial Range: block-turbocharger

1шт.

28

K628386

CLIP

- turbocharger tube

1шт.

29

425-106

NUT,3/8"-16, Cl 5

1шт.

30

492-11038

LOCK WASHER,3/8"

1шт.

31

K207663

PIPE

TUBE - oil return, upper

1шт.

32

K626816

HOSE

- 3/4 x 2 inch (19 x 51 mm)

1шт.

33

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

34

K202554

PIPE,0.75" OD x 10.875, 4.25" L

TUBE - oil return, lower

1шт.
