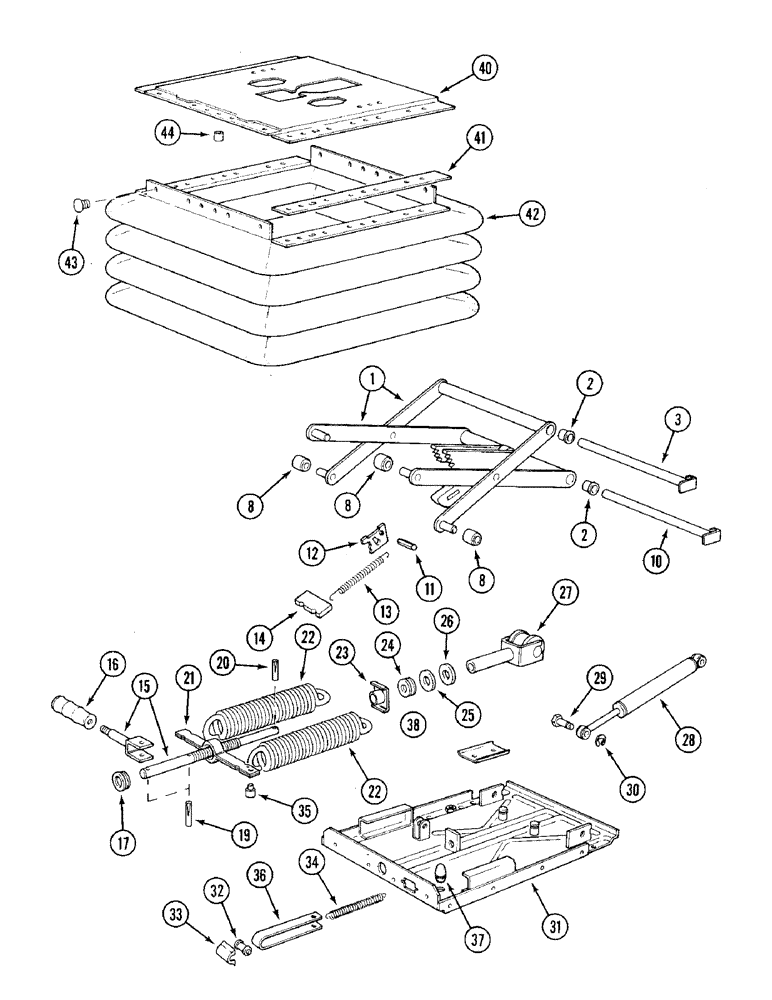

Запчасти Case IH 1394 (9-446) - SEAT SUSPENSION, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

K302740

SUSPENSION

ASSEMBLY - seat, Includes: Ref. 1 - 44

1шт.

1

K262108

FRAME

SUPPORT ASSEMBLY, Includes: Ref. 2 - 14

1шт.

2

K964668

BUSHING

- spindle, nylon

4шт.

3

3225304R1

PIN

SPINDLE - upper

1шт.

8

3225310R1

ROLLER

- nylon

4шт.

10

K262110

SHAFT

SPINDLE - lower

1шт.

11

3225320R1

PIN

- cam plate

1шт.

12

3225303R1

RATCHET

PLATE - cam

2шт.

13

3225307R1

SPRING

- cam plate

2шт.

14

3225306R1

RETAINER

- cam plate

1шт.

15

1281953C91

PIN ASSY.

ADJUSTER ASSEMBLY - seat tension, Includes: Ref. 16 - 20

1шт.

16

K261699

HANDLE

KNOB - tension adjuster

1шт.

17

K262120

BUSHING

- tension adjuster

1шт.

19

1281960C1

PIN

- 4 x 20 mm

1шт.

20

30788R1

LOCK PIN,M3 x 16, Slotted

PIN - 3 x 16 mm

1шт.

21

3225296R1

HOLDER

CARRIER - tension spring

1шт.

22

3225330R1

SPRING

- seat tension

2шт.

23

3225317R1

NUT,Weld, M12

- captive, M12

1шт.

24

3225318R1

BEARING, BALL

BEARING - thrust

1шт.

25

3225319R1

WASHER

- 14 mm

1шт.

26

3225298R1

RUBBER WASHER

- 14 mm

1шт.

27

1281949C1

YOKE

FORK AND BEARING ASSEMBLY - suspension

1шт.

28

K262107

DAMPER

- hydraulic

1шт.

29

K965791

PIN

- clevis, damper

2шт.

30

K621592

RING, SNAP

RING - snap, 7/32 inch

2шт.

31

K262121

PLATE

- base

1шт.

32

K964653

ROLLER

- tension indicator, nylon

1шт.

33

K964638

COVER

- tension indicator, plastic

1шт.

34

3225382R1

BUSHING

SPRING - tension indicator

1шт.

35

3225315R1

BUTTON

ANCHOR - indicator cord, nylon

1шт.

36

K262118

DECAL

TAPE - tension indicator

1шт.

37

3134835R1

BUMPER

- seat

2шт.

38

K262122

PLATE

- bearing, fork

1шт.

40

K262115

PLATE

- top

1шт.

41

K262114

STRIP

- clamping

2шт.

42

K262113

COVER

- suspension

1шт.

43

K964645

RIVET

- plastic

26шт.

44

K262116

DAMPER

STOP - rubber, top plate

2шт.
