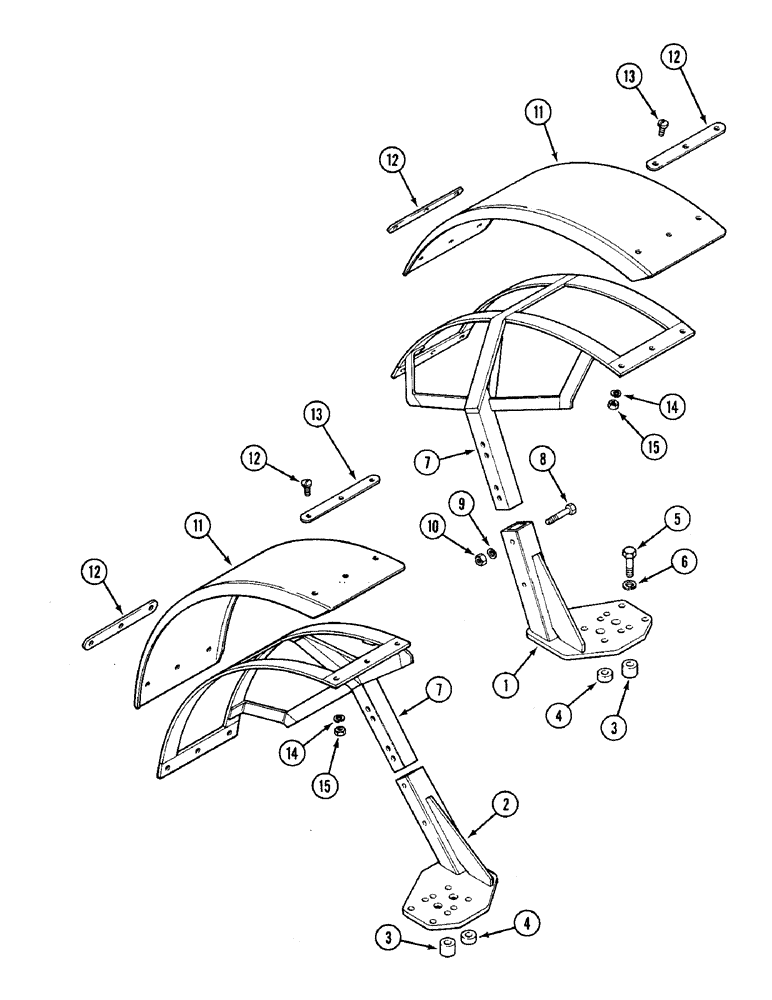

Запчасти Case IH 1394 (9-436) - FENDER FRONT, MFD TRACTORS ONLY P.I.N. 11503001 AND AFTER (09) - CHASSIS/ATTACHMENTS

UK6807

UNIT

FENDERS ATTACHMENT - front, Includes: Ref. 1 - 15

1шт.

1

K311667

BRACKET

- support, Serial Range: left-hand,-axle

1шт.

2

K311672

BRACKET

- support, Serial Range: right-hand,-axle

1шт.

3

K208421

SPACER

- outer

4шт.

4

K208422

SPACER

- inner

4шт.

5

814-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 8.8

- hex, 12 - 1.75 x 55 mm

8шт.

6

K651850

SPRING

WASHER - lock, 12 mm

8шт.

7

K311658

BRACKET

- fender support

2шт.

8

814-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 8.8

- hex, 10 - 1.5 x 65 mm

4шт.

9

892-11010

LOCK WASHER,M10

4шт.

10

825-1410

NUT,M10, Cl 8

4шт.

11

K208465

FENDER

-

2шт.

12

K208464

STRIP

- reinforcing

4шт.

13

K652488

SCREW

BOLT - special, M8 x 25 mm

12шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

12шт.

15

825-1408

NUT,M8, Cl 8

12шт.
