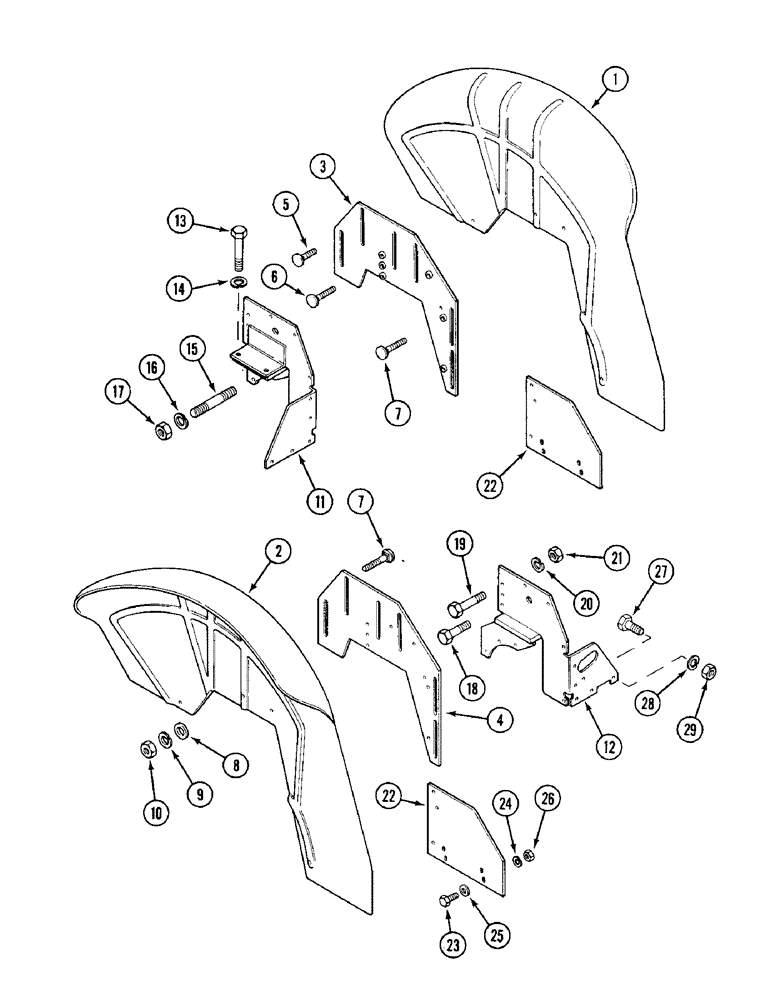

Запчасти Case IH 1394 (9-434) - REAR FENDERS AND MOUNTINGS, LOW PROFILE SPECIAL (09) - CHASSIS/ATTACHMENTS

1

K207985

FENDER

- rear left-hand (Replaces K206231)

1шт.

2

K207986

FENDER

- rear right-hand (Replaces K206232)

1шт.

3

K308496

PLATE

ADAPTER - fender left-hand

1шт.

4

K308497

PLATE

ADAPTER - fender right-hand

1шт.

5

K658946

BOLT

- round head square neck, M10 x 40 mm

8шт.

6

K658947

BOLT

- round head square neck, M10 x 50 mm

2шт.

7

K658948

BOLT

- round head square neck, M10 x 60 mm

2шт.

8

K651779

WASHER

- 10 mm

12шт.

9

892-11010

LOCK WASHER,M10

12шт.

10

825-1410

NUT,M10, Cl 8

12шт.

11

K306457

SUPPORT

- lsupport, left-hand

1шт.

12

K306474

SUPPORT

- support, right-hand

1шт.

13

K600885

BOLT

- axle housing, 1/2 UNC x 2 inch

4шт.

14

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

15

K608426

STUD

- 1/2 UNC x 2-1/2 inch

6шт.

16

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

6шт.

17

K607004

NUT

- hex, 1/2 inch UNC

6шт.

18

K650644

BOLT

- M8 x 30 mm

10шт.

19

K650646

BOLT

- M8 x 40 mm

2шт.

20

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

13шт.

21

825-1408

NUT,M8, Cl 8

3шт.

22

K308690

GUARD

- tire

2шт.

23

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

26

825-1408

NUT,M8, Cl 8

2шт.

27

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

6шт.

28

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

29

825-1408

NUT,M8, Cl 8

6шт.
