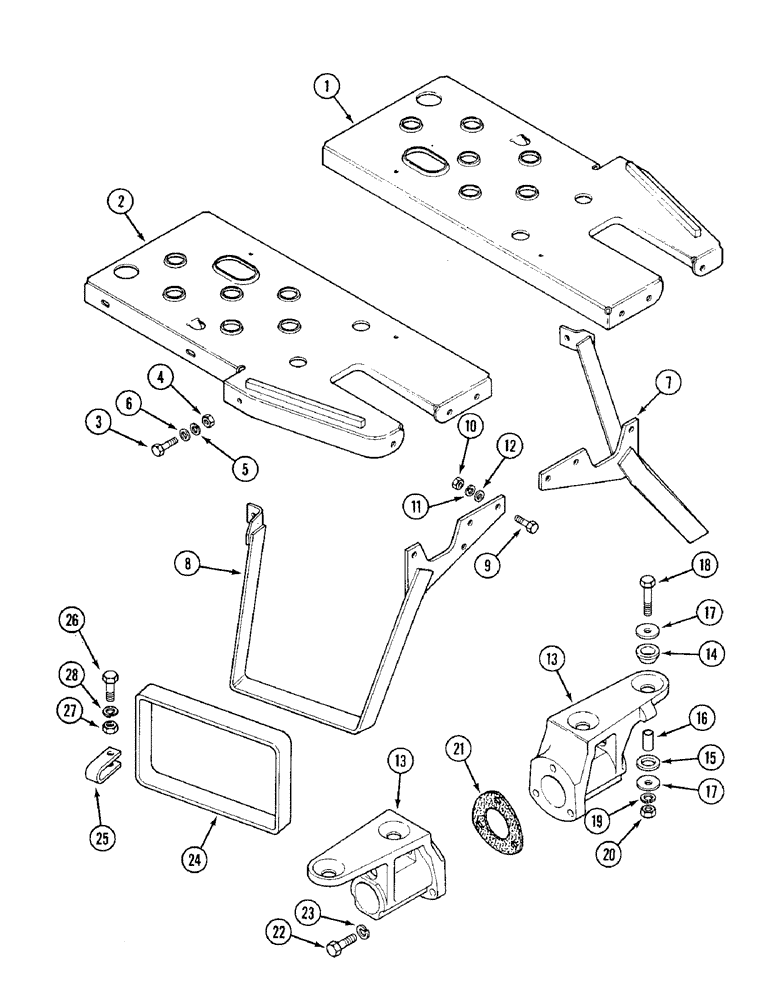

Запчасти Case IH 1394 (9-426) - FOOTPLATES AND MOUNTINGS, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

K306388

PLATE

FOOTPLATE - left-hand

1шт.

2

K306389

PLATE

FOOTPLATE - right-hand

1шт.

3

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

4шт.

4

825-1408

NUT,M8, Cl 8

4шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

7

K305515

PLATE ASSY.

STEP - left-hand, with or without, 2 post ROPS

1шт.

8

K305709

PLATE ASSY.

STEP - right-hand, with or without, 2 post ROPS

1шт.

7

K300639

STEP

- left-hand, with, 4 post ROPS

1шт.

8

K300636

STEP

- right-hand, with, 4 post ROPS

1шт.

9

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 14 mm

8шт.

10

825-1408

NUT,M8, Cl 8

8шт.

11

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

8шт.

13

K205058

BRACKET

- support, footplates

2шт.

14

K205083

RUBBER

MOUNTING - flexible

4шт.

15

K205084

RUBBER SEAL

MOUNTING - flexible

4шт.

16

K627342

BUSHING

SPACER - mounting

4шт.

17

K88751

WASHER

- 3/8 inch (10 mm) Special

4шт.

18

K600510

BOLT

- 3/8 UNC x 2 inch

4шт.

19

492-11038

LOCK WASHER,3/8"

4шт.

20

425-106

NUT,3/8"-16, Cl 5

4шт.

21

K201828

GASKET

- cbracket

2шт.

22

K600403

BOLT

- 3/8 UNC x 1-3/8 inch

4шт.

22

K600410

BOLT

- 3/8 UNC x 2-1/4 inch

2шт.

23

492-11038

LOCK WASHER,3/8"

6шт.

24

K302592

CLAMP

EXTENSION - footstep (High clearance tractor)

2шт.

25

K302593

CLAMP

- extension (High clearance tractor)

4шт.

26

K650645

BOLT

- M8 x 35 mm

4шт.

27

825-1408

NUT,M8, Cl 8

4шт.

28

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.
