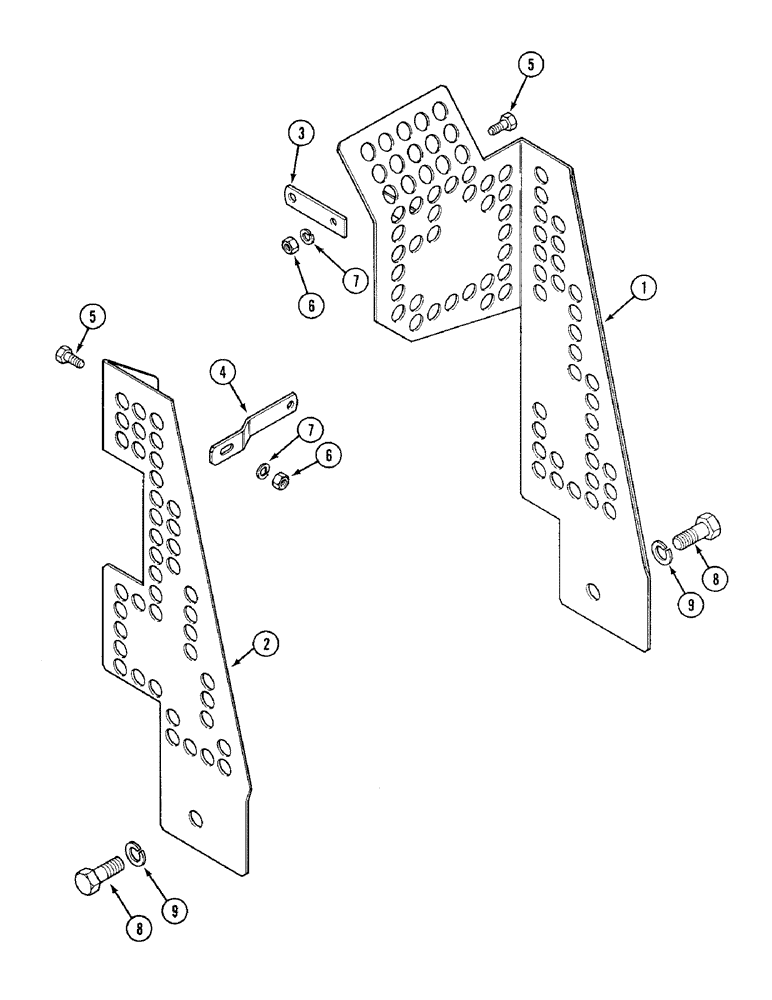

Запчасти Case IH 1394 (9-420) - GUARDS - DRIVE BELTS AND PULLEYS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

UK6813

GUARD ASSEMBLY - fan and belts, Order components, Includes: Ref. 1 - 9

1шт.

1

K208432

GUARD

- left-hand

1шт.

2

K208433

GUARD

- right-hand

1шт.

3

K208437

BRACKET

- left-hand

1шт.

4

K208436

BRACKET

- right-hand

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

6

825-1408

NUT,M8, Cl 8

2шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

8

K603274

SCREW

BOLT - 5/8 UNC x 1-1/2 inch

2шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
