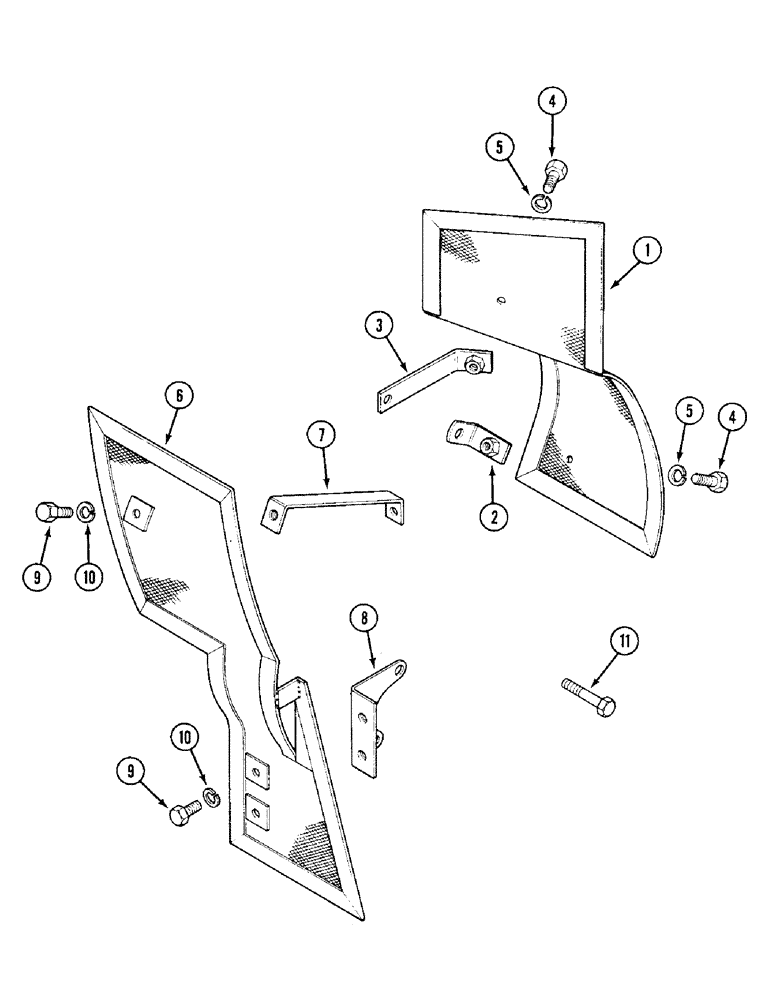

Запчасти Case IH 1394 (9-418) - GUARDS - DRIVE BELTS AND PULLEYS, UK TRACTORS ONLY (09) - CHASSIS/ATTACHMENTS

1

K310448

GUARD

- right-hand

1шт.

2

K310460

SUPPORT

BRACKET - guard to timing cover

1шт.

3

K310458

BRACKET

- guard to alternator bracket

1шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

3шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

6

K310411

GUARD

- left-hand

1шт.

7

K310131

BRACKET

- guard to water pump

1шт.

8

K310433

SUPPORT

BRACKET - guard to timing cover

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

11

K600209

BOLT

- 5/16 UNC x 2 inch

1шт.
