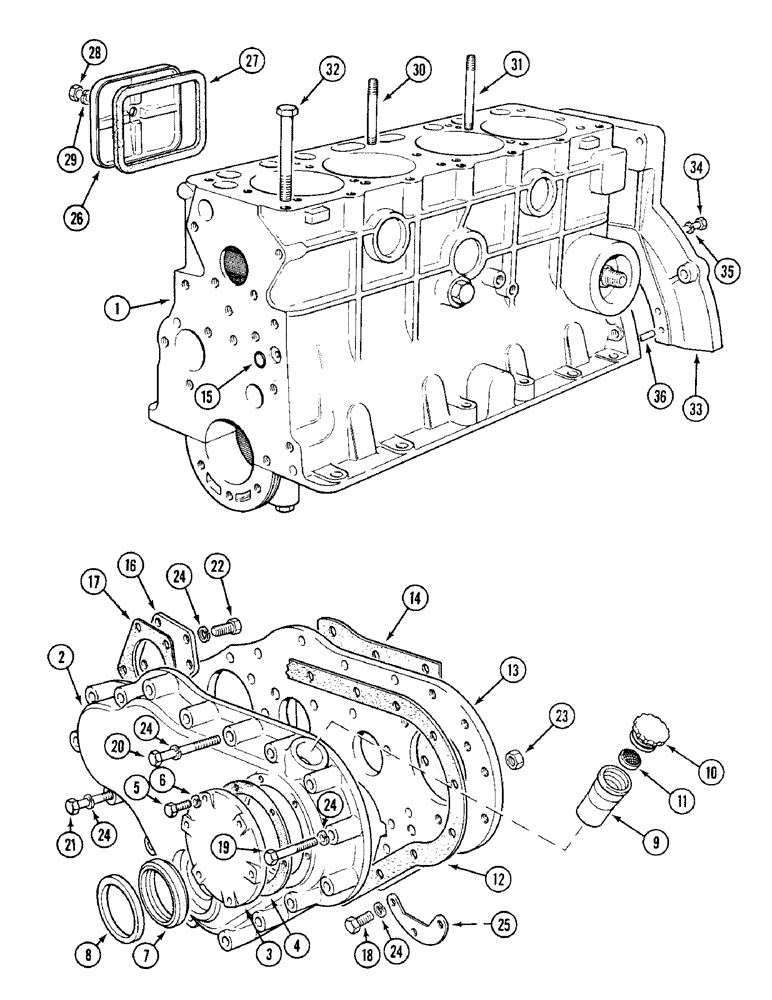

Запчасти Case IH 1394 (2-20) - CYLINDER BLOCK COVERS (02) - ENGINE

1

REF

INSTRUCTION

CYLINDER BLOCK ASSEMBLY - engine, See Figure 2-18

1шт.

K80062

COVER

ASSEMBLY - timing, Includes: Ref. 2 - 11

1шт.

2

K944347

COVER

- timing gear

1шт.

3

K302622

COVER

PLATE - inspection

1шт.

4

1349385C1

GASKET

- plate

1шт.

5

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

6шт.

6

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

6шт.

7

K628127

OIL SEAL,52.2mm ID x 73.45mm OD x 9.5mm Thk

- oil, 2-1/8 x 2-7/8 x 3/8 inch (54 x 73 x 10 mm)

1шт.

8

K623454

FELT SEAL,54.77mm ID x 73.82mm OD x 3.17mm Thk

- felt, 2-1/4 x 2-7/8 x 1/8 inch (57 x 73 x 3 mm)

1шт.

9

K950287

NECK FILLER

TUBE - filler cap

1шт.

10

K948427

CAP

- filler

1шт.

11

K921678

FILTER

SCREEN - filter

1шт.

12

K920794

GASKET

- cover to carrier plate

1шт.

13

K920867

CARRIER

PLATE - carrier

1шт.

14

K206869

GASKET

-, Serial Range: plate-block

1шт.

15

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

16

K940120

PLATE

- cover, steering pump

1шт.

17

K919729

GASKET,0.76mm Thk

- plate to carrier plate

1шт.

18

K602883

SCREW,5/16" - 18 x 3/4", Gr V

BOLT - 5/16 UNC x 3/4 inch

4шт.

18

K602806

BOLT

- 5/16 UNC x 1-1/8 inch

2шт.

19

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

9шт.

20

K600210

BOLT

- 5/16 UNC x 2-1/8 inch

1шт.

21

K600205

BOLT

- 5/16 UNC x 1-1/2 inch

5шт.

21

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

22

K602801

BOLT (SPREADER)

BOLT - 5/16 UNC x 1/2 inch

1шт.

23

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

3шт.

24

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

21шт.

25

K902036

GASKET

PLATE - baffle

1шт.

26

K10029

COVER

- tappets

2шт.

27

K10030

GASKET

- tappet cover

2шт.

28

K600408

BOLT,3/8" x 2"

- 3/8 UNC x 2 inch

2шт.

28

K201667

STUD

- s[pecial, 3/8 inch UNC

1шт.

29

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

- sealing

2шт.

30

K906538

STUD

- UNC/UNF x 4-7/8 inch

10шт.

31

K608505

STUD,1/2" x 7/16"

STUD - 1/2 UNC/UNF x 5-5/16 inch

2шт.

32

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

- hex, 1/2 NC x 4-1/4 inch, grade 8

7шт.

33

K203093

PLATE

- support, starter

1шт.

34

K602906

SCREW

BOL T - 3/8 UNC x 1-1/4 inch

6шт.

35

492-11038

LOCK WASHER,3/8"

6шт.

36

K12258

PIN

DOWEL - 5/16 x 3/4 inch

2шт.

K260282

GASKET

GASKET SET - cylinder block

1шт.
