Заказать запчасти

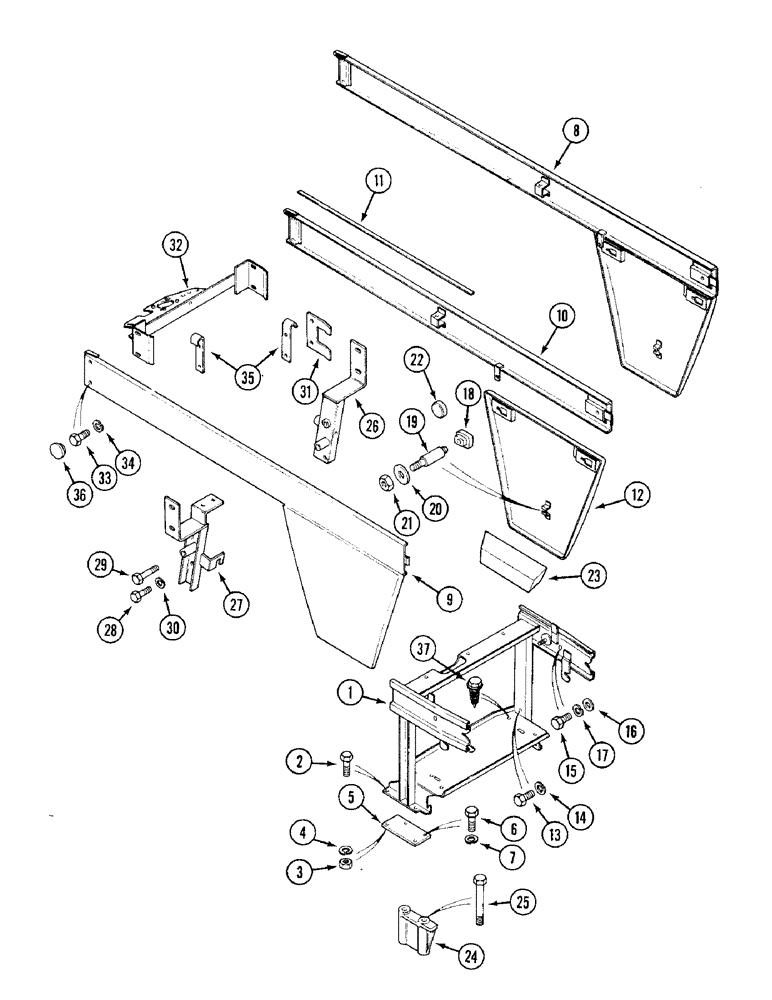

Запчасти Case IH 1394 (9-414) - ENGINE FRONT SUPPORT HOOD (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
K307810
FRAME
- support, hood
1шт.
2
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
4шт.
3
425-106
NUT,3/8"-16, Cl 5
4шт.
4
492-11038
LOCK WASHER,3/8"
4шт.
5
K304311
PLATE
- cover support
2шт.
6
88206
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
7
492-11038
LOCK WASHER,3/8"
4шт.
8
K310000
SLIDE
WAISTRAIL AND PANEL - left-hand (Without cab)
1шт.
9
K306584
SLIDE
WAISTRAIL AND PANEL - right-hand (Without cab)
1шт.
9
K306586
SHROUD
WAISTRAIL AND PANEL - right-hand (With cab)
1шт.
10
K307851
FRAME
WAISTRAIL - left-hand (With cab)
1шт.
11
K304909
STRIP
- nylon
2шт.
12
K308439
PANEL
- left-hand (With cab)
1шт.
13
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
- hex, full threads, 8 - 1.25 x 20 mm
2шт.
14
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
2шт.
15
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
- hex, full threads, 8 - 1.25 x 20 mm
2шт.
16
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
- flat, 9 x 17 x 1.6 mm
2шт.
17
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
2шт.
18
K305819
RUBBER
MOUNT - rubber
1шт.
19
K207518
STUD
- side panel, M8 (With cab)
1шт.
20
K626916
WASHER
- special, 5/16 inch (8 mm)
1шт.
21
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
1шт.
22
K305758
RUBBER
BUFFER - rubber, side special
2шт.
23
K308242
PLATE
SEAL - foam, side panelfoam, side panel
2шт.
24
K301195
SUPPORT
SPACER - frame (With cab)
2шт.
25
K600424
SCREW
BOLT - 3/8 UNC x 5 inch (With cab)
4шт.
26
K307846
SUPPORT
- rear, left-hand (With cab)
1шт.
27
K307847
SUPPORT
- rear, right-hand (With cab)
1шт.
28
K602902
SCREW
BOLT - 3/8 UNC x 3/4 inch
2шт.
29
K600406
BOLT
- 3/8 UNC x 1-3/4 inch
2шт.
30
492-11038
LOCK WASHER,3/8"
4шт.
31
K307126
GUIDE
PLATE - guide (With cab)
2шт.
32
K304367
SUPPORT
- rear (Without cab)
1шт.
33
K654072
HEX SOC SCREW,Btn Hd, M8 x 1.25 x 23mm
BOLT - M8 x 20 mm
4шт.
34
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
4шт.
35
K307033
NUT
PLATE - nut, M8
2шт.
36
K627992
PLUG
- plastic
4шт.
37
K624532
SCREW
- No. 14 x 1/2 inch, earth lead, vacuum switch
1шт.
Выбрано товаров: 38
