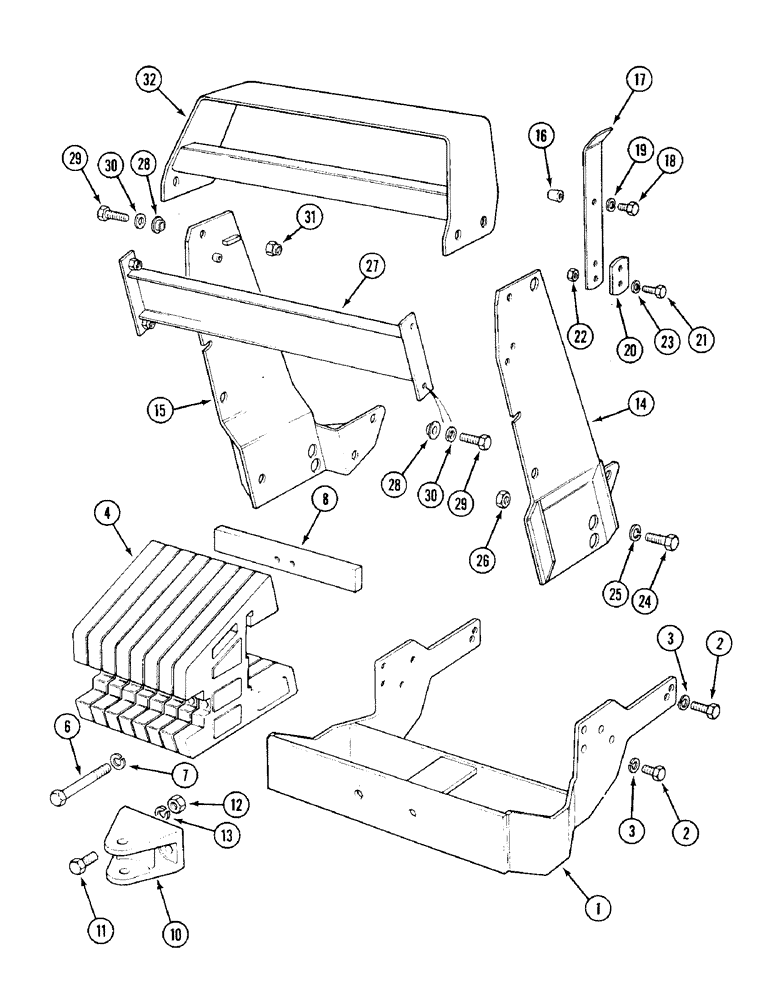

Запчасти Case IH 1394 (9-408) - WEIGHTS, FRAME, TOW BRACKET, RADIATOR GUARD, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

UK5713

FRAME

ATTACHMENT - ballast, Include: Ref. 1 - 3

1шт.

1

K306872

FRAME

- support

1шт.

2

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

6шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

UK5718

KIT

WEIGHT ATTACHMENT - ballast (Machinery item), Includes: Ref. 4 - 8

1шт.

4

K306858

WEIGHT

- ballast

8шт.

6

K650883

BOLT

- M16 x 330 mm

2шт.

7

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

8

K306859

BAR

- locking

1шт.

A169111

WEIGHT

- front end (North America only) (Package of 6 weights. Also order 3 hardware packages A177102) (Machinery item)

1шт.

A177102

KIT

HARDWARE KIT - weight (North America only) (Machinery item)

1шт.

UK5721

KIT

BRACKET ATTACHMENT - tow, Includes: Ref. 10 - 32

1шт.

10

K207651

CLEVIS

BRACKET - tow

1шт.

11

K650726

BOLT

- M16 x 55 mm

2шт.

12

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

2шт.

13

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

2шт.

UK5479

KIT

GUARD ATTACHMENT - radiator

1шт.

14

K305149

LARGE PLATE

PLATE - side, left-hand (Replaces K305070)

1шт.

15

K305150

LARGE PLATE

PLATE - side, right-hand (Replaces K305083)

1шт.

16

K305085

STOP

PIN - stop

1шт.

17

K305088

STOP

STRAP - spring

1шт.

18

814-10014

BOLT,Hex, M10 x 1.5 x 14mm, Cl 8.8, Full Thd

- hex, 10 x 14 mm

1шт.

19

892-11010

LOCK WASHER,M10

1шт.

20

K948166

SPRING

PLATE - strap

1шт.

21

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

22

280136

NUT,3/8"-16, G8

2шт.

23

892-11010

LOCK WASHER,M10

2шт.

24

K601355

BOLT

- 5/8 UNC x 1-7/8 inch

6шт.

24

K603272

SCREW

BOLT - 5/8 UNC x 1-7/8 inch

2шт.

25

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

26

425-1010

NUT,5/8"-11, G5

6шт.

27

K305064

CHANNEL

BAR - tie

1шт.

28

K305087

BUSHING

- plastic

4шт.

29

413-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

- hex, 1/2 NC x 1-5/8 inch

6шт.

30

K626686

WASHER

- flat, 1/2 inch (13 mm)

6шт.

31

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

32

K305065

GUARD

- hood noose

1шт.
