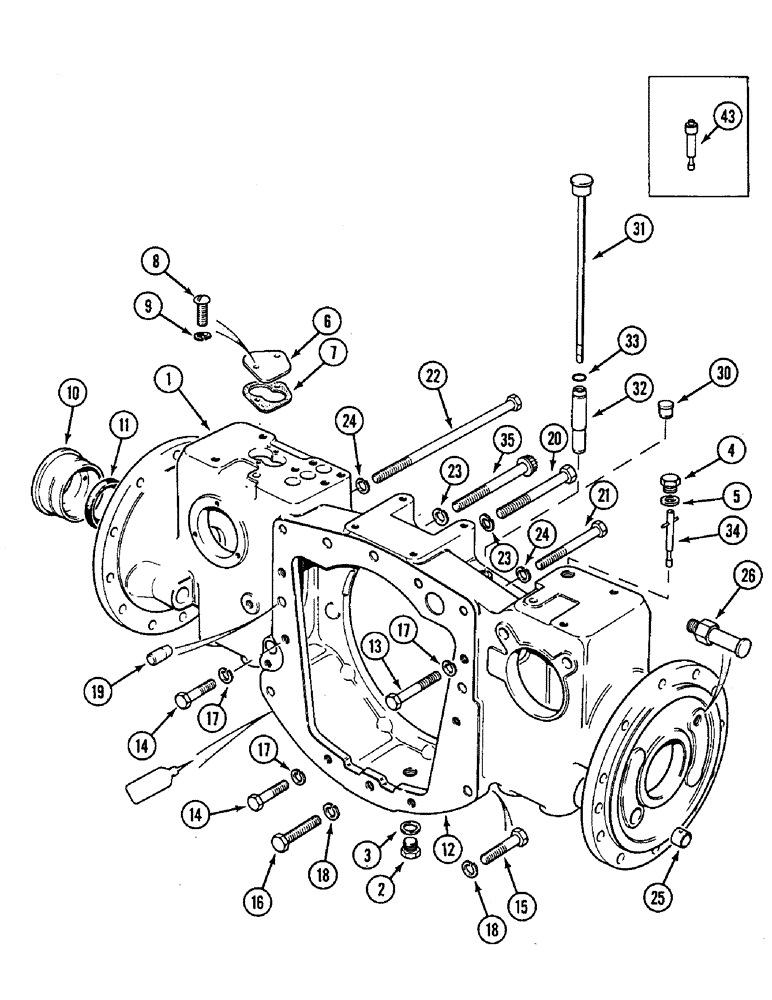

Запчасти Case IH 1394 (9-406) - REAR AXLE HOUSING (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
K956717
HOUSING
- axle, rear
1шт.
2
K623851
PLUG
- 3/4 inch BSP
1шт.
3
K627474
WASHER
- sealing, 1-1/16 inch (27 mm)
1шт.
4
K619528
PLUG
- 7/8 inch UNF
1шт.
5
K30085
GASKET
WASHER - fiber, 7/8 inch (22 MM)
1шт.
6
K929463
COVER
PLATE - cover, axle housing without dump valve
1шт.
6
K929465
COVER
PLATE - cover, axle housing with dump valve (Without cab)
1шт.
7
K929464
GASKET
- cover plate
1шт.
8
K602803
BOLT
- 5/16 UNC x 3/4 inch
2шт.
10
K201340
SEAL
HOUSING - oil seal
2шт.
11
K623482
SEAL
- oil, 80 x 55 x 8 mm
4шт.
12
K944571
GASKET,0.25mm Thk
- axle housing
1шт.
See your authorized dealer to use Loctite 504 gasket eliminator in place of K944571 gasket.
1шт.
13
K600808
BOLT
- 1/2 UNC x 2-1/4 inch
2шт.
14
K600816
BOLT
- 1/2 UNC x 3-1/2 inch
1шт.
14
K600814
BOLT
- 1/2 UNC x 3 inch (MFD)
4шт.
14
K600804
BOLT
- 1/2 UNC x 1-3/4 inch (MFD)
2шт.
15
K600819
BOLT
- 1/2 UNC x 4-1/4 inch
3шт.
16
K601205
BOLT
- 5/8 UNC x 2-1/8 inch
3шт.
17
K19484
LOCK WASHER
WASHER - lock, 1/2 inch
6шт.
18
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
3шт.
19
K622904
PIN
DOWEL - 5/8 x 1-9/16 inch
2шт.
20
K600218
BOLT
- 5/16 UNC x 3-1/4 inch
2шт.
21
K600820
BOLT
- 1/2 UNC x 4-1/2 inch
1шт.
22
413-8128
BOLT,Hex, 1/2" - 13 x 8", Gr 5
- hex, 1/2 NC x 8 inch
1шт.
23
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
3шт.
24
K19484
LOCK WASHER
WASHER - lock, 1/2 inch
2шт.
25
K621406
BUSHING
- brake camshafts
4шт.
26
K954710
PIN
- fulcrum, brake shoes
2шт.
30
K210364
PIN
PLUG - 1/2 inch dipstick aperture (Without Cab)
1шт.
31
K956099
DIPSTICK
- transmission oil
1шт.
32
K203546
DIPSTICK
SLEEVE - dipstick
1шт.
33
O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro
-013, 70 Duro, .426" ID x .070" Thk
1шт.
34
K210320
FITTING
RESTRICTOR - oil, Tractors with creeper gear and single pump
1шт.
35
166-123
12 PT SCREW,Flg, 5/8" - 11 x 4 1/2", Gr 8
BOLT - special, 5/8 x 4-1/2 inch
1шт.
Выбрано товаров: 36
