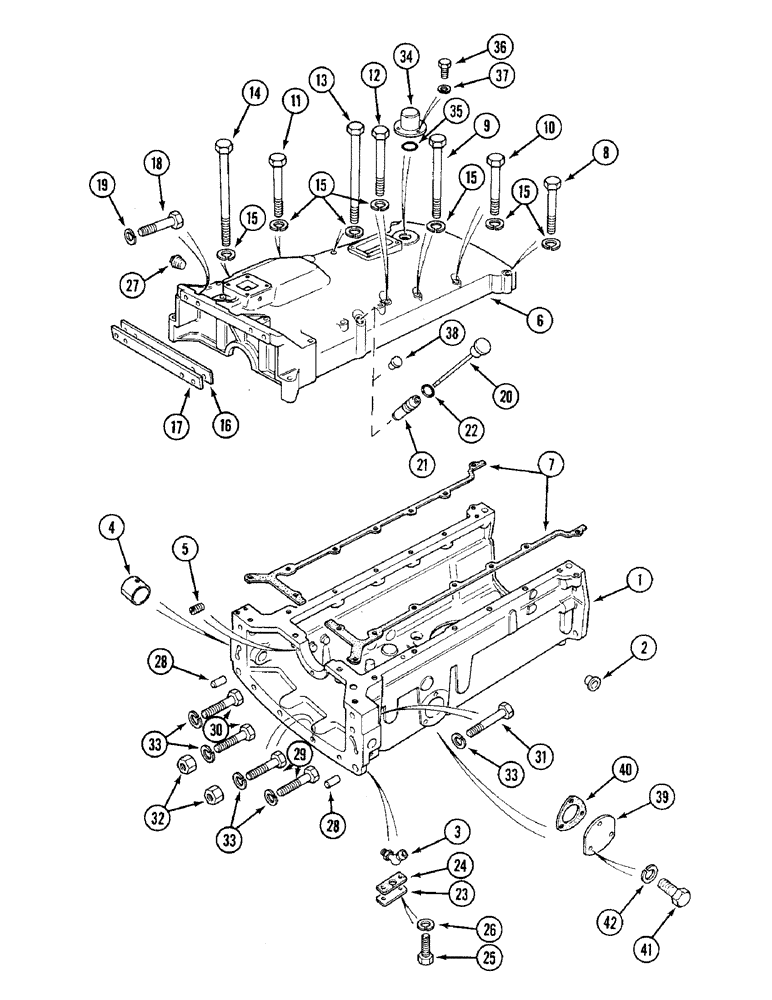

Запчасти Case IH 1394 (9-404) - REAR MAIN FRAME AND COVERS, TRACTORS SHIFT TRACTORS (09) - CHASSIS/ATTACHMENTS

1

K957356

FRAME

- main, rear (Two-wheel drive)

1шт.

1

K957439

FRAME

- main, rear (MFD)

1шт.

2

353-11

PLUG,Cap, .610" OD

- plastic, 5/8 inch (16 mm)

34шт.

3

K22164

FITTING

- grease, 1/4 inch ANF

2шт.

4

K628753

BUSHING

- clutch shaft

4шт.

5

K606229

SCREW

- 5/16 UNC x 3/8 inch

3шт.

6

K207074

COVER

- gearbox (Without cab)

1шт.

6

K200816

COVER

- gearbox (With cab)

1шт.

7

K205303

GASKET

- gearbox cover

2шт.

8

K600816

BOLT

- 1/2 UNC x 3-1/2 inch

2шт.

9

K600817

BOLT

- 1/2 x 3-3/4 inch (With creeper gear)

2шт.

10

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

2шт.

11

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

12

K600824

BOLT

- 1/2 UNC x 5-1/2 inch

2шт.

13

K600829

BOLT

- 1/2 UNC x 6-3/4 inch

3шт.

14

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

- hex, 1/2 NC x 8 inch

1шт.

15

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

14шт.

16

K205305

WEDGE

- spacing

1шт.

17

K205306

SHIM,.040" Thk

Cover .040" Thk

1шт.

18

K600810

BOLT

- 1/2 UNC x 2-1/2 inch

4шт.

19

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

20

K956099

DIPSTICK

- transmission sump (Without cab)

1шт.

21

K203546

DIPSTICK

SLEEVE - dipstick

1шт.

22

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

23

K919278

COVER

PLATE - cover

1шт.

24

K919279

GASKET

- cover plate

1шт.

25

K603002

BOLT (SPREADER)

BOLT - 7/16 UNC x 7/8 inch

2шт.

26

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

27

K14518

PLUG

- 3/4 inch BSP

1шт.

28

K621826

PIN

DOWEL - 5/8 x 1-1/8 inch

2шт.

29

K600615

BOLT

- 7/16 UNC x 3-1/4 inch

6шт.

30

K600608

BOLT

- 7/16 UNC x 2-1/4 inch

2шт.

31

K600606

BOLT

- 7/16 UNC x 2 inch

2шт.

32

280717

NUT,7/16"-14, G5

4шт.

33

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

10шт.

34

K940284

COVER

- starter safety switch

1шт.

35

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

Cover -222, 70 Duro, 1.484" ID x .139" Thk

1шт.

36

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW - pan head Phillips, 1/4 x 1/2 inch NC

3шт.

37

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

3шт.

38

K210364

PIN

PLUG - gearbox cover (With Cab)

1шт.

39

K202527

PLATE

- mainframe (With cab)

2шт.

40

K201828

GASKET

- plate

2шт.

41

K602983

SCREW

BOLT - 3/8 UNC x 7/8 inch

6шт.

42

492-11038

LOCK WASHER,3/8"

6шт.
