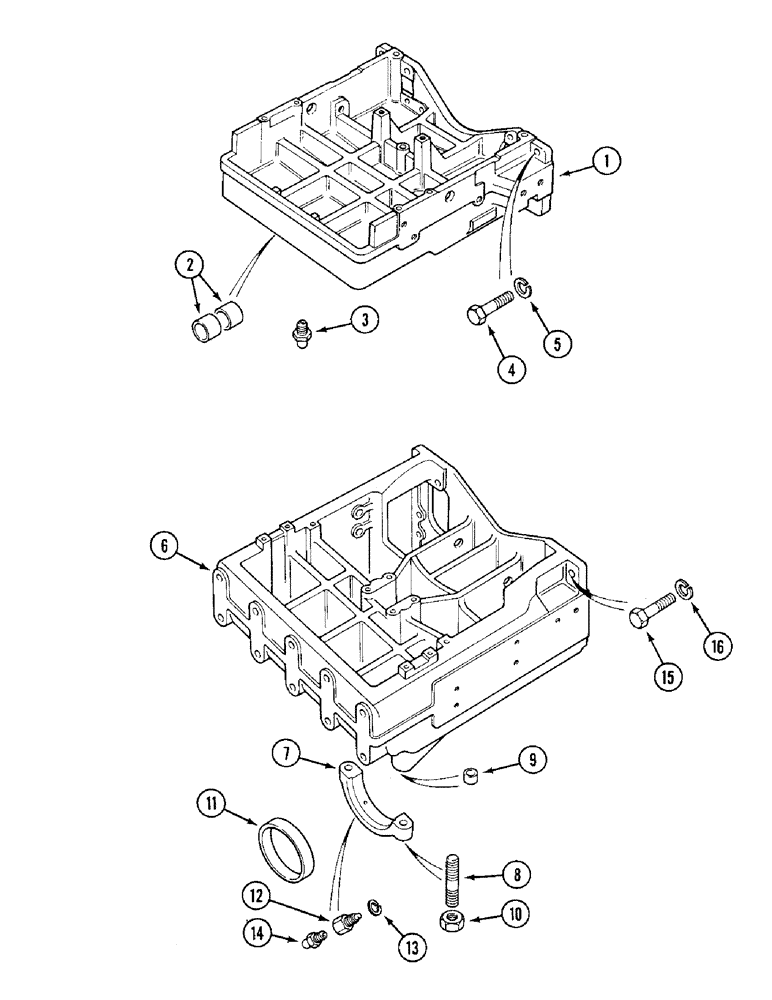

Запчасти Case IH 1394 (9-398) - FRONT MAIN FRAME EXTENSION, TWO WHEEL DRIVE (09) - CHASSIS/ATTACHMENTS

1

K956246

CASTING

EXTENSION - front main frame

1шт.

2

K15597

BUSHING

- trunnion pin

4шт.

3

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 19/32 inch

2шт.

4

K600604

SCREW

BOLT - 7/16 UNC x 1-3/4 inch

10шт.

5

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

10шт.

ref

Part No.

English

1шт.

6

K395160

ATTACHMENT

EXTENSION - front main frame (Prior to P.I.N. 11503001), mechanical front drive (MFD), Includes: Ref. 7 - 10

1шт.

6

K395160

ATTACHMENT

EXTENSION - front main frame (P.I.N. 11503001 and after), mechanical front drive (MFD), Includes: Ref. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

CAP - trunnion bushing, mechanical front drive (MFD)

2шт.

8

K260224

STUD

- cap, mechanical front drive (MFD)

4шт.

9

K956979

BUSHING

DOWEL - ring, cap, mechanical front drive (MFD)

4шт.

10

K965427

NUT

- cap, mechanical front drive (MFD)

4шт.

11

K965265

BUSHING

- steel, trunnion, mechanical front drive (MFD)

2шт.

12

K965424

ADAPTER

SCREW - locating, mechanical front drive (MFD)

2шт.

13

892-11012

LOCK WASHER,M12

WASHER, LOCK, , Mechanical Front Drive (MFD) M12

2шт.

14

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, , Mechanical front drive (MFD) M6 x 1, 16mm lg

2шт.

15

K608792

BOLT

- 7/16 UNC x 1-3/4 inch, grade V, mechanical front drive (MFD)

10шт.

16

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Mechanical front drive (MFD) 7/16"

10шт.
