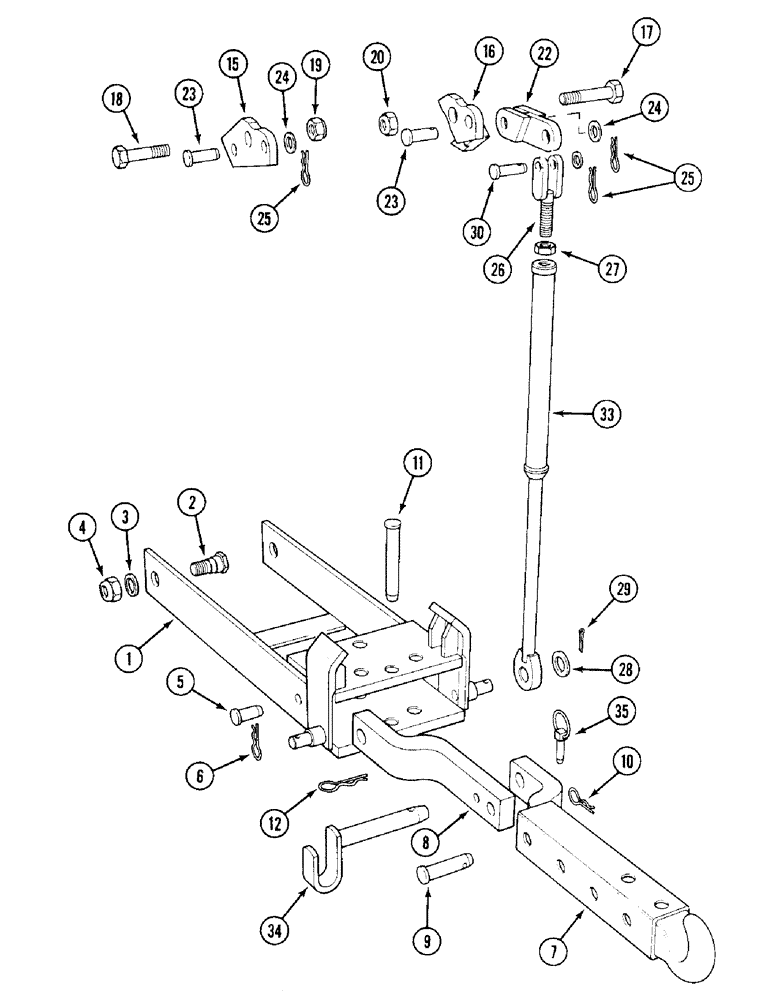

Запчасти Case IH 1394 (9-396) - COMBINED DRAWBAR AND PICK-UP HITCH, DRAWBAR AND FRAME, NOT NORTH AMERICA (09) - CHASSIS/ATTACHMENTS

1

K206842

SUPPORT

FRAME - drawbar

1шт.

2

K309982

BOLT

- pivot, M20 special

2шт.

3

K651762

WASHER

- plain, 20 mm

2шт.

4

K652111

NUT

- M20, self-locking

2шт.

5

K206846

PIN

- frame locking

2шт.

6

K201794

SPRING

CLIP - locking pin

2шт.

7

K310348

DRAWBAR

AND HOOK - hitch, Includes: Ref. 8 - 10

1шт.

8

K309981

CLEVIS

- drawbar

1шт.

9

K309983

CLEVIS

PIN - clevis

1шт.

10

K201794

SPRING

CLIP - clevis pin

1шт.

11

K206840

PIN

-, Serial Range: drawbar-frame

1шт.

12

K306531

CLIP

- drawbar pin

1шт.

15

K309986

BRACKET

ARM - lift, left-hand

1шт.

16

K309987

BRACKET

ARM - lift, right-hand

1шт.

17

K601466

BOLT

- ramshaft arm, 3/4 UNC x 4 inch

1шт.

18

K608889

BOLT

- 3/4 UNC x 3-1/2 inch

1шт.

19

K309992

NUT

- 3/4 inch UNC, special

1шт.

20

K607307

NUT

- 3/4 inch UNC, self-locking

1шт.

22

K309995

LINK

- lift arm

2шт.

23

K206851

PIN

- link

2шт.

24

K19476

WASHER

- 3/4 inch (19 mm)

2шт.

26

K309991

BOLT

EYE BOLT - lift rod

2шт.

27

K651557

NUT

- lock, M20

2шт.

28

K19497

WASHER

- 7/8 inch (22 mm)

2шт.

29

K26231

PIN

- cotter

2шт.

30

K309988

PIN

- eye bolt

2шт.

31

K19475

WASHER

- 5/8 inch, 5/8 inch

2шт.

33

K309997

ARM

ROD - lift drawbar

2шт.

35

1328218C1

LINCH PIN,11mm OD

1шт.
