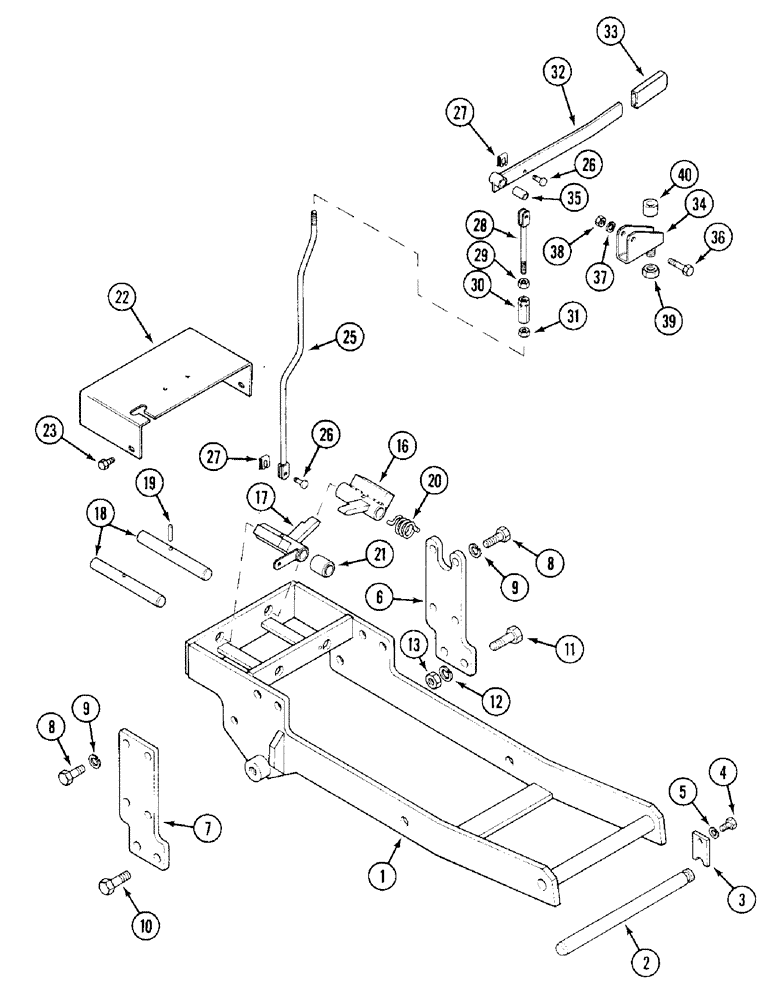

Запчасти Case IH 1394 (9-394) - COMBINED DRAWBAR AND PICK-UP HITCH, SUPPORT BRACKET AND FRAME, NOT NORTH AMERICA (09) - CHASSIS/ATTACHMENTS

1

K309990

FRAME

- drawbar

1шт.

2

K943026

HINGE

BAR - hinge

1шт.

3

K943027

PLATE

- retaining

1шт.

4

K602983

SCREW

BOLT - 3/8 UNC x 7/8 inch

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

K309980

MOUNTING PARTS

PLATE - support, left-hand (Reversible shaft PTO)

1шт.

7

K309979

MOUNTING PARTS

PLATE - support, right-hand (Reversible shaft PTO)

1шт.

8

K603308

BOLT (SPREADER)

BOLT - 5/8 UNC x 1-3/4 inch

8шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

K309985

BOLT

- M20 x 55 mm

2шт.

11

K206839

BOLT

- M20 x 55 mm

2шт.

12

K651762

WASHER

- plain, 20 mm

4шт.

13

K651511

NUT

- M20

4шт.

16

K206858

PAWL

LATCH - left-hand

1шт.

17

K206859

PAWL

LATCH - right-hand

1шт.

18

K206857

PIN

- latch pivot

2шт.

19

K623894

PIN

- roll, 5/16 x 1-1/4 inch

2шт.

20

K206860

SPRING

- latch

2шт.

21

K206861

BUSHING

SPACER - latch pin

1шт.

22

K309993

COVER

- latch, mechanism

1шт.

23

K652474

BOLT

- M6 x 12 mm

2шт.

25

K310462

ROD

- lower

1шт.

26

K625936

CLEVIS

PIN - clevis, clevis

2шт.

27

K659105

CLIP

- clevis pin

2шт.

28

K207634

ROD

- upper

1шт.

29

K616982

NUT

- 3/8 inch UNF, left-hand

1шт.

30

K950846

NUT

SLEEVE - adjusting, 3/8 inch UNF

1шт.

31

K617282

SPECIAL NUT

- 3/8 inch UNF

1шт.

32

K308078

LEVER

- hand

1шт.

33

K308082

SLEEVE

- rubber, hand lever

1шт.

34

K308081

BRACKET

- hand lever support

1шт.

35

K627052

BUSHING

SPACER - lever pivot

1шт.

36

K600526

BOLT

- 3/8 UNC x 1-7/8 inch

1шт.

37

492-11038

LOCK WASHER,3/8"

1шт.

38

425-106

NUT,3/8"-16, Cl 5

1шт.

39

K616987

NUT

- 3/4 inch UNF

1шт.

40

K626462

DAMPER

BUSHING - rubber

1шт.
