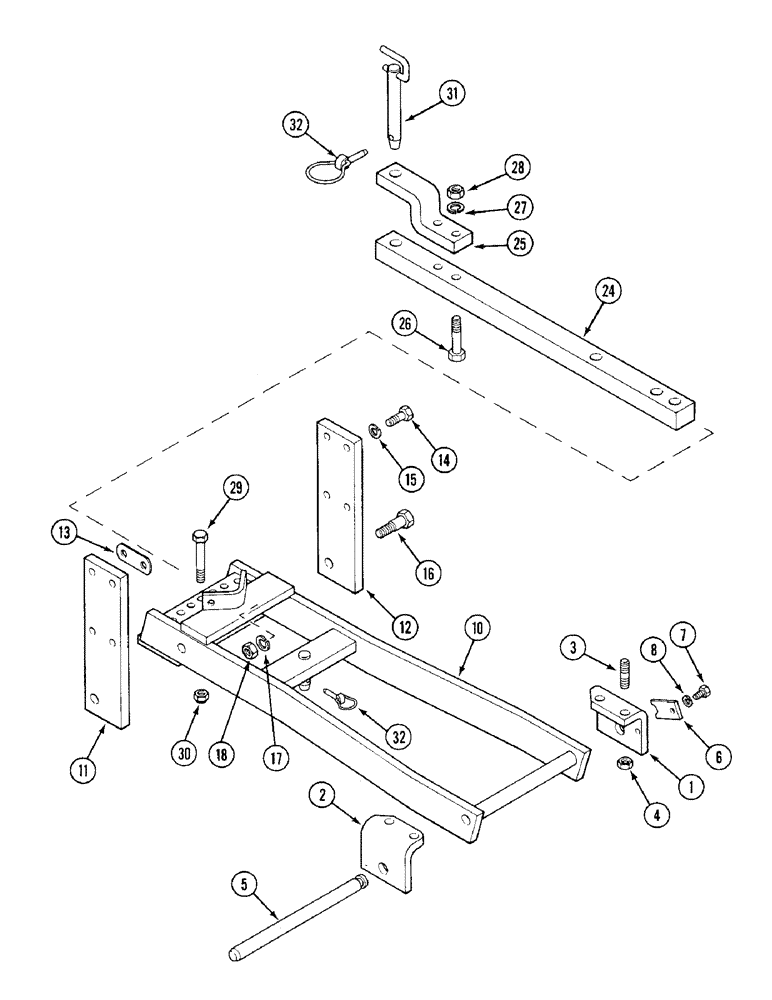

Запчасти Case IH 1394 (9-390) - UNIVERSAL DRAWBAR, P.I.N. 11505480 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

K929818

BRACKET

- hinge, left-hand

1шт.

2

K929819

BRACKET

- hinge, right-hand

1шт.

3

K608610

STUD

- 5/8 UNC x 2-1/2 inch

4шт.

4

K607306

NUT

- self-locking, 5/8 inch UNC

4шт.

5

K207576

BAR

- hinge, front

1шт.

6

K301351

PLATE

- retaining, hinge bar

2шт.

7

K602983

SCREW

BOLT - 3/8 UNC x 7/8 inch

1шт.

8

492-11038

LOCK WASHER,3/8"

1шт.

10

K311525

SUPPORT

- drawbar

1шт.

11

K311565

PLATE

- hitch, right-hand (Reversible shaft PTO) and check chain

1шт.

11

K311533

PLATE

- hitch, right-hand (Multi speed PTO) and check chain

1шт.

11

REF

INSTRUCTION

PLATE - hitch, right-hand, with support cylinder, See Figure 8-365 and 8-367)

1шт.

12

K311565

PLATE

- hitch, left-hand (Reversible shaft PTO) and check chain

1шт.

12

K311533

PLATE

- hitch, left-hand (Multi speed PTO) and check chain

1шт.

13

K917071

SHIM

- 1/16 inch (2 mm)

1шт.

13

K917072

SHIM

- 1/32 inch (1 mm)

1шт.

14

K603308

BOLT (SPREADER)

BOLT - 5/8 UNC x 1-3/4 inch

8шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

16

K908290

STEP BOLT

- 3/4 inch UNC, special

2шт.

17

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

18

425-1012

NUT,3/4"-10, G5

- 3/4 inch UNC, special

2шт.

19

K311505

DRAWBAR, SWINGING

DRAWBAR - tractor

1шт.

25

K916516

CLEVIS

BRACKET - clevis

1шт.

26

614-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8, Full Thd

2шт.

27

892-1116

LOCK WASHER,M16

WASHER - lock M16

2шт.

28

825-1416

NUT,M16, Cl 8

2шт.

29

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

- hex, 5/8 NC x 4-1/4 inch

2шт.

30

K607306

NUT

- self-locking, 5/8 inch UNC

2шт.

31

K916566

PIN

- hitch

1шт.

32

1328218C1

LINCH PIN,11mm OD

2шт.
