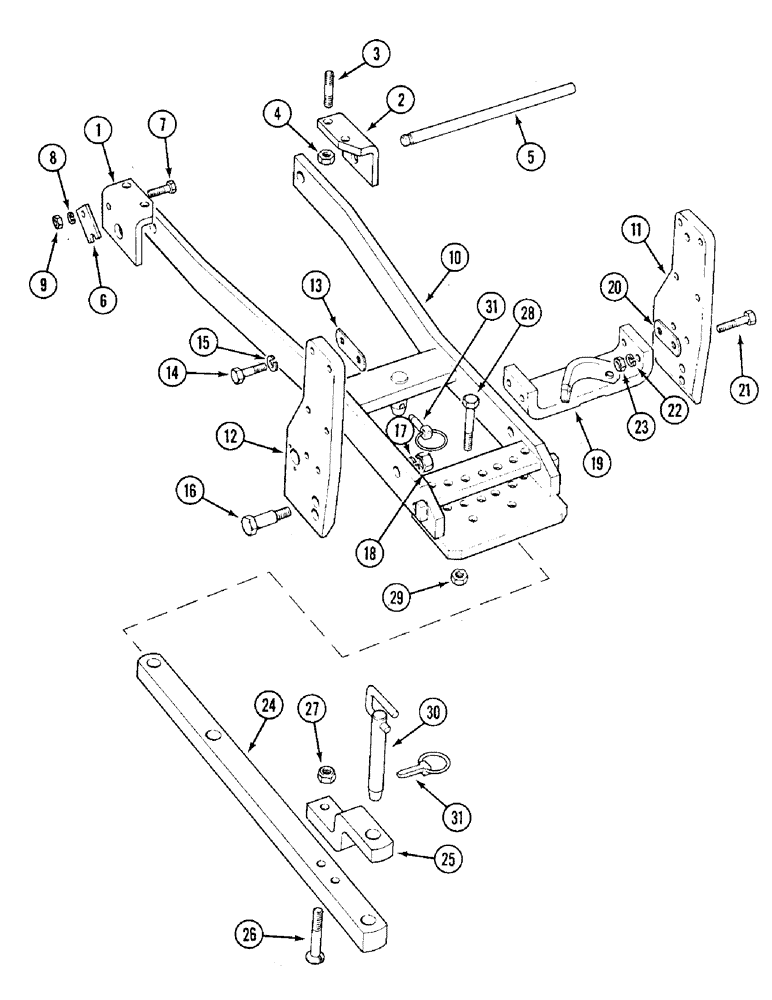

Запчасти Case IH 1394 (9-388) - UNIVERSAL DRAWBAR, TRACTORS PRIOR TO P.I.N. 11505480 (09) - CHASSIS/ATTACHMENTS

1

K929818

BRACKET

- hinge, left-hand (Without cab)

1шт.

1

K307954

BRACKET

- tank support, left-hand (With cab)

1шт.

2

K929819

BRACKET

- hinge, right-hand (Without cab)

1шт.

2

K307955

BRACKET

- tank support, right-hand (With cab)

1шт.

3

K608610

STUD

- 5/8 UNC x 2-1/2 inch

4шт.

4

K607306

NUT

- self-locking, 5/8 inch UNC

4шт.

5

K943026

HINGE

BAR - hinge, front

1шт.

6

K301351

PLATE

- retaining, hinge bar

1шт.

7

K602983

SCREW

BOLT - 3/8 UNC x 7/8 inch

1шт.

8

492-11038

LOCK WASHER,3/8"

1шт.

9

425-106

NUT,3/8"-16, Cl 5

1шт.

10

K202889

SUPPORT

FRAME - drawbar

1шт.

11

K308831

PLATE

- hitch, right-hand (Reversible shaft PTO)

1шт.

11

K308835

PLATE

- hitch, right-hand (Multi-speed PTO)

1шт.

REF

INSTRUCTION

PLATE - hitch, right-hand with support cylinder (See page 8-365/7)

1шт.

12

K307257

BRACKET

PLATE - hitch, left-hand, hitch, left-hand (Reversible shaft PTO)

1шт.

12

K307259

BRACKET

PLATE - hitch, left-hand (Multi-speed PTO)(Not North America)

1шт.

13

K917071

SHIM

- 1/16 inch (2 mm)

1шт.

13

K917072

SHIM

- 1/32 inch (1 mm)

1шт.

14

K603308

BOLT (SPREADER)

BOLT - 5/8 UNC x 1-3/4 inch

8шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

16

K908290

STEP BOLT

- 3/4 inch UNC, special

2шт.

17

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

18

425-1012

NUT,3/4"-10, G5

- 3/4 inch UNC, special

2шт.

19

K947174

PLATE

- bridge

1шт.

20

K947200

SHIM

- 1/16 inch (2 mm)

1шт.

20

K947201

SHIM

- 1/32 inch (1 mm)

1шт.

21

K601208

BOLT

- 5/8 UNC x 2-1/2 inch

4шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

23

K607006

NUT

- hex, 5/8 inch NC

4шт.

24

K948406

DRAWBAR, SWINGING

DRAWBAR - tractor (Reversible shaft PTO)

1шт.

24

K947677

DRAWBAR, SWINGING

DRAWBAR - tractor (Multi-speed PTO)

1шт.

25

K916516

CLEVIS

BRACKET - clevis

1шт.

26

K601664

BOLT

- 5/8 UNC x 3-1/4 inch special

2шт.

27

K607463

NUT

- self-locking, 5/8 inch UNC

2шт.

28

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

- hex, 5/8 NC x 4-1/4 inch

2шт.

29

K607306

NUT

- self-locking, 5/8 inch UNC

2шт.

30

K916566

PIN

- hitch (Replaces K946789)

1шт.

31

1328218C1

LINCH PIN,11mm OD

(Replaces K920359)

1шт.
